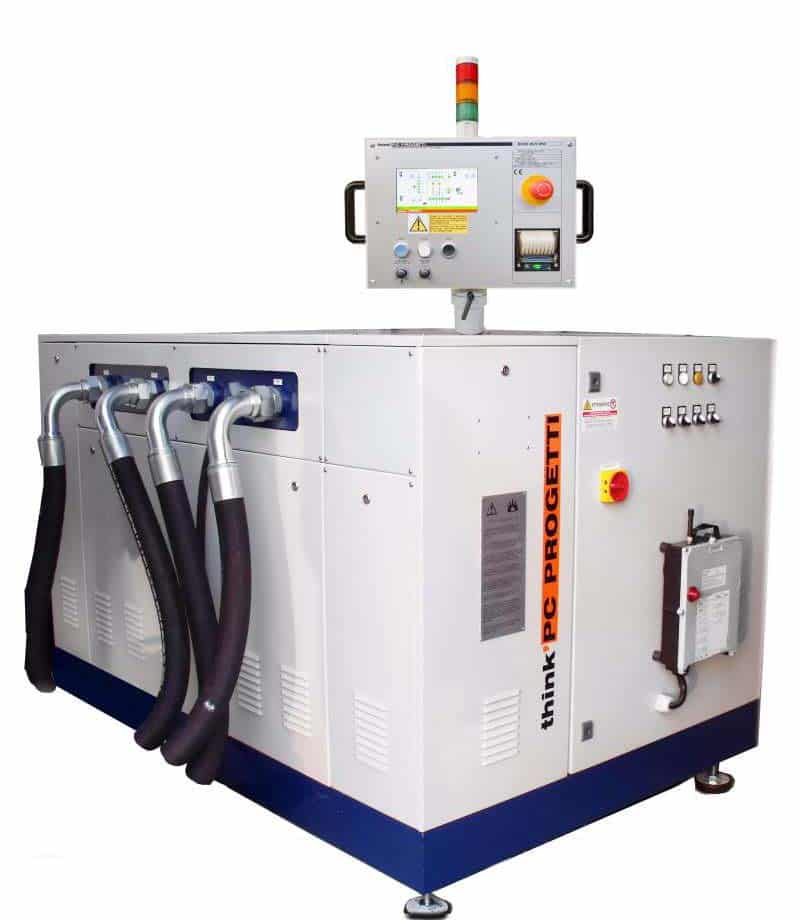

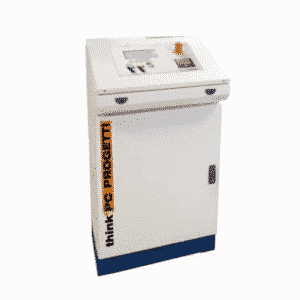

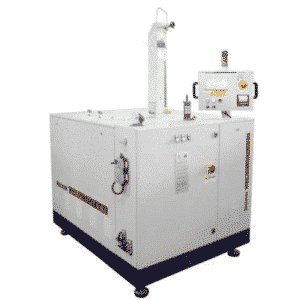

Hydraulic/pneumatic pressurization skid.Controlled by electronic PLC configured by LCD touch screen monitor. Logic could store test data, set-points, times and leak limits. Pressure set point is automatically reached. Leak could be measured (option) by electronic bubbles counter or precision water column for H2O leak (height measured by pressure transmitter). Vacuum pump could be installed (option) to assure the [Patent Pending] absence of air inside valve’s body before filling it with water; in order to reduce test time and increase operator’s safety. All wet process components are stainless steel made and dimensioned for a working pressure of 700bar (up to 1600bar as option). It has a high filling flow ability and the recovering of test fluid is automatic. Metal to metal needle valves assure high reliability. A 24cln thermal printer (option) could be installed to printout a simple test report without connect an external PC windows based supervision with certification software estREC2.0 installed. The software and process option it has, make it compliant with the most diffuse test standards.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- H2O700 / 1050 / 1400 / 2800bar
- N2 / He200 / 450 / 700 / 1000bar
- Filling flow1880L/min
- Pressurization Power6 / 9 / 12 HP
- Vacuum pump opt.160 / 240m3/h
- Backseat testAvailable
- Seat over pressure testAvailable
- Operation HP testAvailable
- DBB test opt.Available
- GAS Test opt.Available
- GAS Booster opt.Available
- CAVITY test optAvailable
- Multistation opt.Available
- Actuator control panel opt.Available (option)
- ATEX certification opt.Available
- Fluid allowedWater, Water & oil mixture, Glicole, Ethanol (Atex), Methanol (Atex).
- Control systemPLC/LCD touch screen 7"/10"
- Printer opt.Available - Thermal printer 24cln
- Ref. StandardAPI \ DIN \ BS \ FCI other on request
- Eternet InterfaceRJ45 10-100BASE-T
- Certification softwareOption TestREC
- Tele service VNP routerIncluded
- AirANSI Bubbler, Bubbles counter, Volumetric bubbler, Mass flowmeters
- WaterWater Column, Digital water column, Turbines flowmeters, accordin client preferences
- Service air supply7 bar @ 4000L/min Other available on request.
- Electrical supply3Ph+T 400V@50Hz 10KW Other available on request.
- Dimensions (mech)1300(L) x 2000(D) x 1900(H)
