Test Benches for Valves

Think’PC PROGETTI produces test benches for industrial valves. Our machines are the excellence on the market. Each test bench is created according to the needs of the individual customer, which is why there are numerous models that differ in terms of their design: dimensions, shape and inclination, clamping style, reaction force, working pressure. The test benches for valves can be connected to a PC which, through our software, allows you to download test data and print out their certification. By installing test benches outside our production site, we also offer remote assistance that allows us to view and solve any problems in a short time. There are many types of test benches for valves: horizontal (with inclination 0° – 30° – 45° as needed), vertical, tiltable, multiple, water immersion gas, PSV PVR PVSV safety valves, cryogenic and helium microleakage. Our test benches are able to carry out professional tests on any type of valve ( check, safety, butterfly, shut-off, ball, control, etc.). Each test bench of valves can be completed with a protection safety perimeter, bunker or pit assembly asset available as option.

products filtering

Ansi

Inches

Clamp

Torque

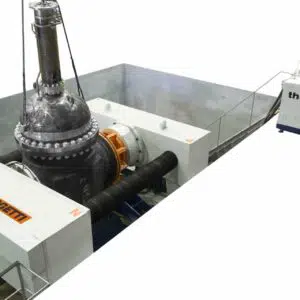

  • BO-2CV/4000

    Horizontal test rig with COMBINED clamping style. Both style are available: Bore plugs & Proportional press clamping.

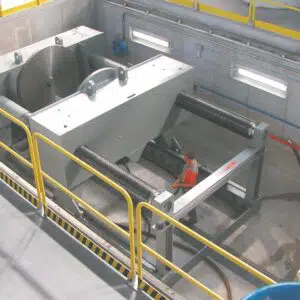

  • BO-2V/2800

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

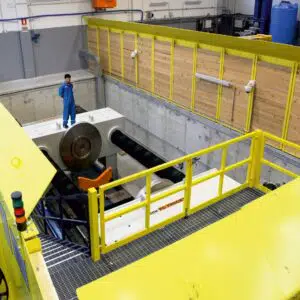

  • BO-2V/2500

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

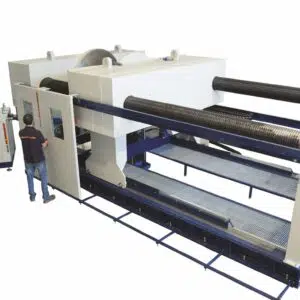

  • BO-2V/1800L

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

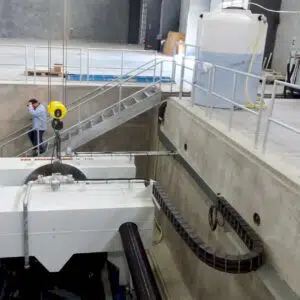

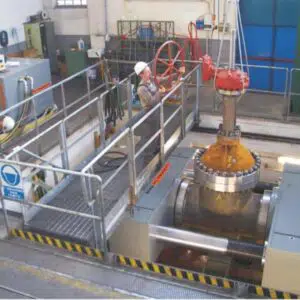

  • BO-2V/1600

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...
  • BO-2CV/1600

    Horizontal test rig with combined clamping style. The mobile reaction bridge is moved by two screwed columns that assure the...

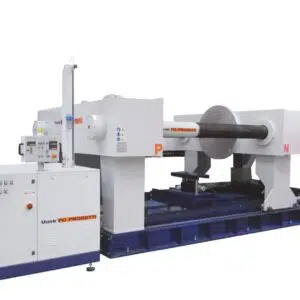

  • BO-2V/1200

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

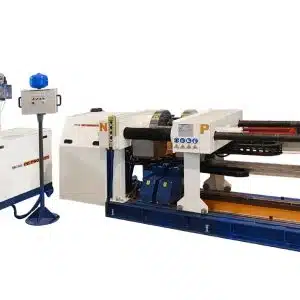

  • BO-2CV/1200

    Horizontal test rig with combined clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete...

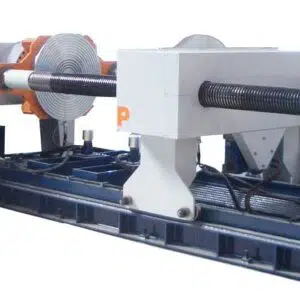

  • BO-2CV/750

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile bridge is moved by...
  • BO-2CV/750L

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile bridge is moved by...

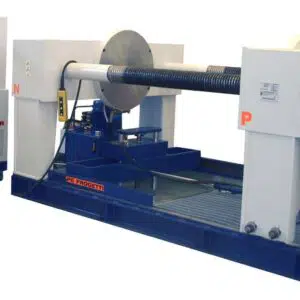

  • BO-2V/600

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...
  • BO-2V/600L

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

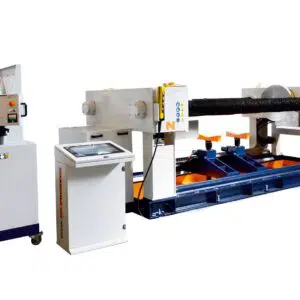

  • BO-2CV/500

    Horizontal test rig with combined clamping style: inner radial seal + press clamping facilities. The mobile reaction bridge is moved...

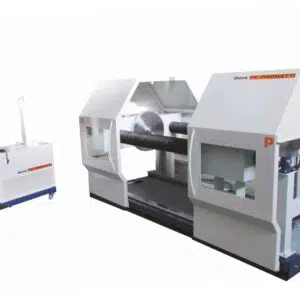

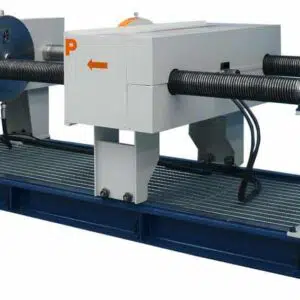

  • BO-2V/450

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...
  • BO-2V/450SH

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

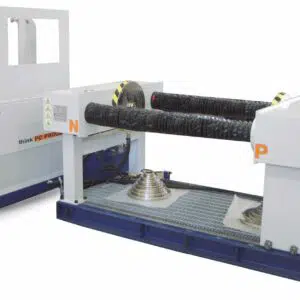

  • BO-2V/250

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

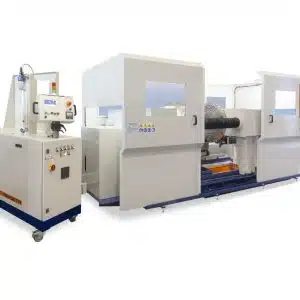

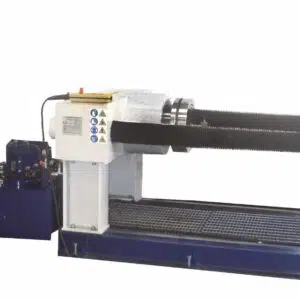

  • BO-2CV/250

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...
  • BO-2V/150

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

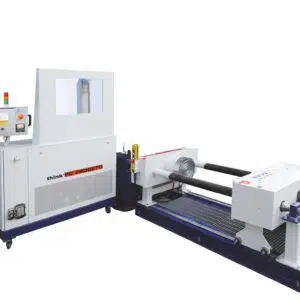

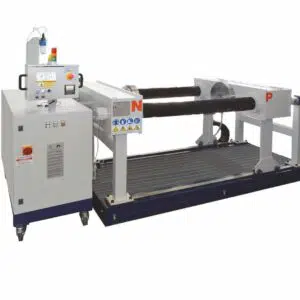

  • BO-2CV/100

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...
  • BO-2CV/100-LAB

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...

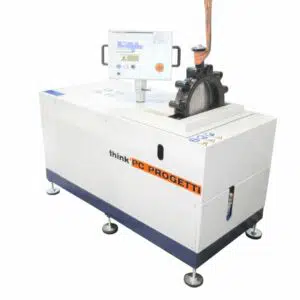

  • BO-C/90SH

    Horizontal test bench with proportional press clamping. Pressing force is automatically set upon valve size and class and it is even...

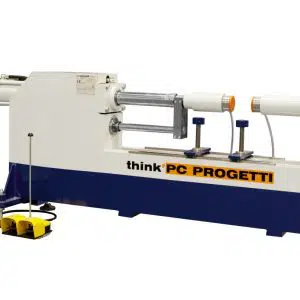

  • BO-CC/40

    Horizontal test rig with press clamping facilities. The particular "C" shape allows the accommodation of valves completed by a "Control...
  • BO30-2CV/3000

    Horizontal test rig with COMBINED clamping style. Both styles are available: Bore plugs & Proportional press clamping. Max reaction power...

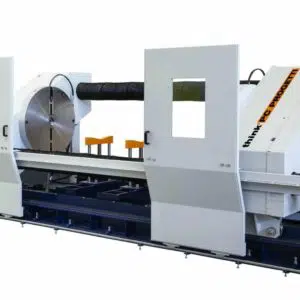

  • BO30-2V/850

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...
  • BO30-2CV/850

    Horizontal test rig with combined clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete...

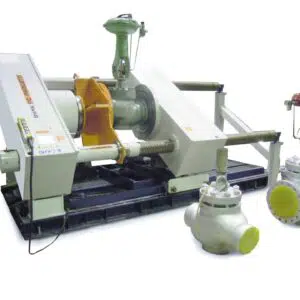

  • BO30-2CV/750

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. Designed to test control valves up...
  • BO30-2CV/500

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...

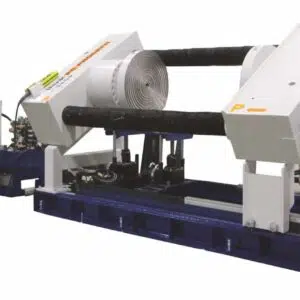

  • BO30-2CV/250L

    The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve...

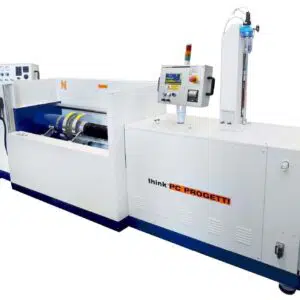

  • BO30-2CV/50P

    The mobile reaction bridge is moved by one screwed columns that assures complete absence of external forces on valve body...

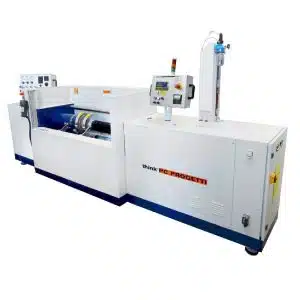

  • BO30-2CV/40P

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...
  • BO30-1V/40SH

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

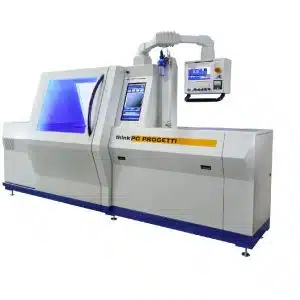

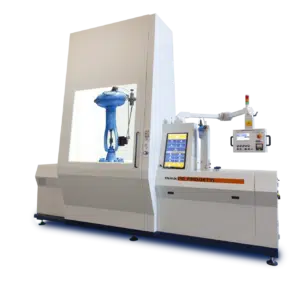

  • BO30-2CV/40SH

    Horizontal test rig with combined clamping style. The mobile reaction bridge is moved by one screwed column that assures complete absence...

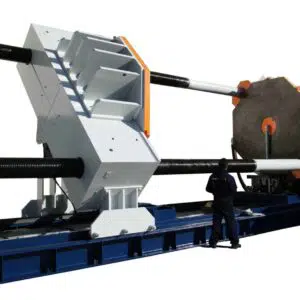

  • BO45-2CV/3000

    Test rig for valves with combined clamping style. Both pressing & bore plugs sealing styles are available. It has two...

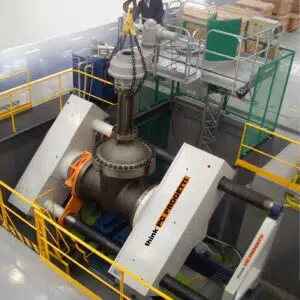

  • BO45-2CV/2000

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...

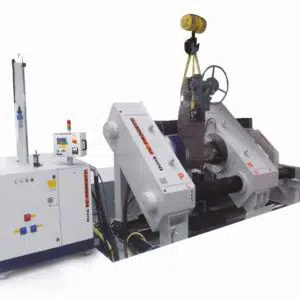

  • BO45-2V/1600

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...
  • BO45-2V/850

    The 45° columns disposal allows vertical loading of valves to be tested with a crane or with a horizontal loading...

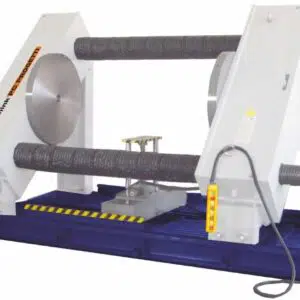

  • BO45-2V/600

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that...

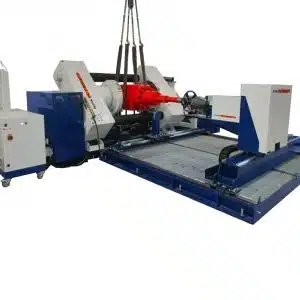

  • BO45-2CV/500

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...

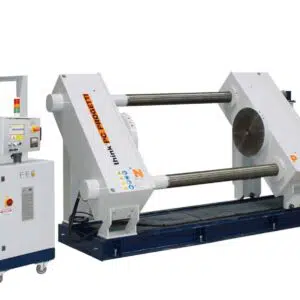

  • BO45-2CV/400

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...

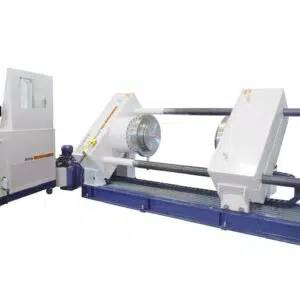

  • BO45-2CV/250

    Horizontal test rig with combined clamping style: inner radial seal and proportional press clamping facilities. The mobile reaction bridge is...

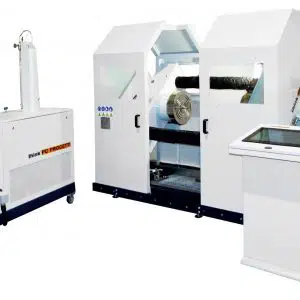

  • BO45-2CV/100 LAB

    Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...
  • BOI-V/450

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

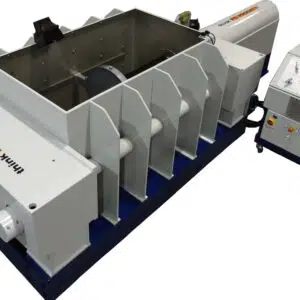

  • BOI-V/250

    Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

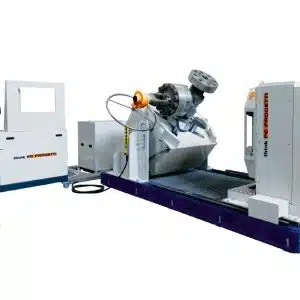

  • BOR-M/350

    Horizontal test rig with double claws clamping and tiltable on a site. The right hand-side is movable to adjust to...

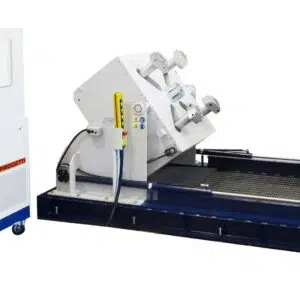

  • BOR-M/200

    Horizontal test rig with double claws clamping and tiltable on a side. The right hand-side is movable to adjust to...
  • BOR-M/60

    Horizontal test rig with double claws clamping and tiltable on a side. The right hand-side is movable to adjust to...

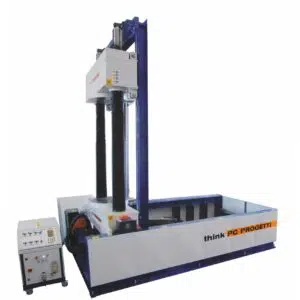

  • BOR-2V/600

    Horizontal test rig with "bore plug" clamping or "combined clamping". The mobile reaction bridge is moved by one screwed column that...
  • BOR-2CV/600

    Horizontal test rig with "bore plug" clamping or "combined clamping". The mobile reaction bridge is moved by one screwed column that...

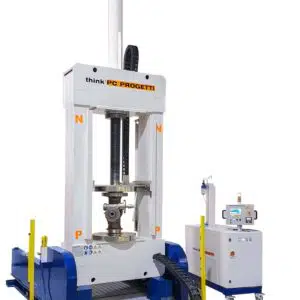

  • BOR-1V/250

    Horizontal test rig with "bore plug" clamping or "combined clamping". The mobile reaction bridge is moved by one screwed column...
  • BOR-CV/250

    Horizontal test rig with "bore plug" clamping or "combined clamping". The mobile reaction bridge is moved by one screwed column...

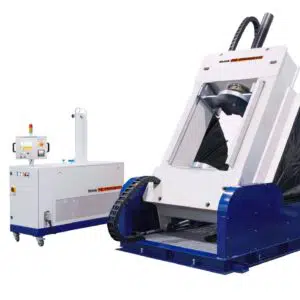

  • BOR-1V/200

    Horizontal test rig with bore plug clamping style: inner radial seal facilities. The mobile reaction bridge is moved by one...

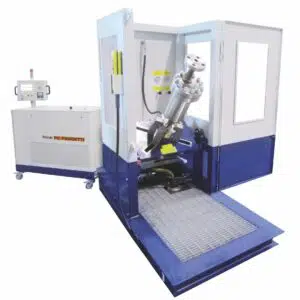

  • BOR-M/20P

    Tiltable Single/Double claws clamping with floor fixed claws clamping unit, and an optional portable clamping unit.

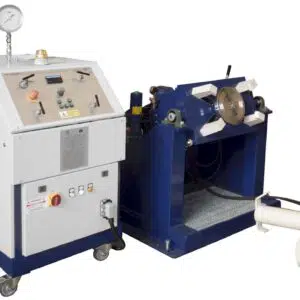

  • BOR-M/15

    Tiltable Single/Double claws clamping with floor fixed claws clamping unit, and an optional portable clamping unit. Claws clamping can be...

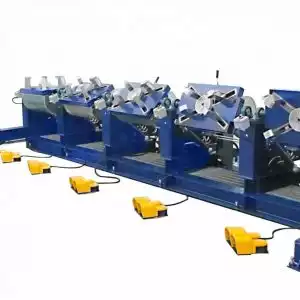

  • BOR-5M/20P

    Five station tiltable rig with Single/Double claws clamping with a floor claws clamping unit. Clamping can be performed only on flanged...

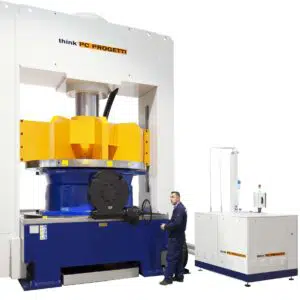

  • BV-PMC/2000

    Vertical test benches with mobile bridge and proportional press clamping.  Press force is controlled automatically and proportionally to rising pressure inside...

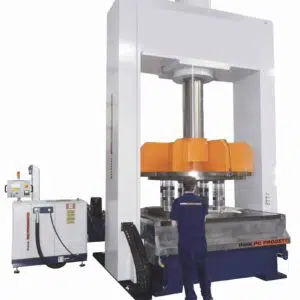

  • BV-PMC/900

    Vertical test benches with mobile bridge and proportional press clamping. Press force is controlled automatically and proportionally to rising pressure...

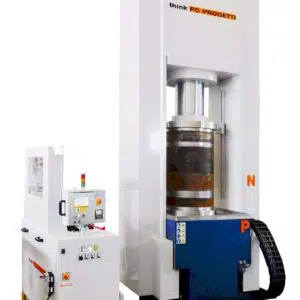

  • BV-PMC/800

    Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves,...

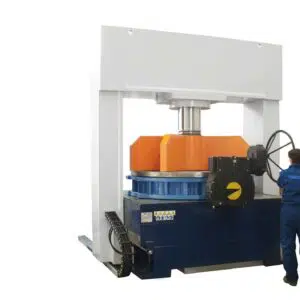

  • BV-PMC/650W

    The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the...

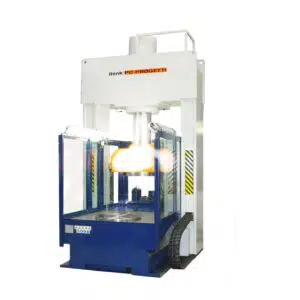

  • BV-PMC/650

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...

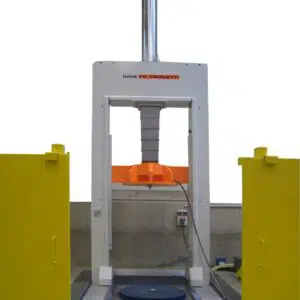

  • BV-PMV/600

    Vertical test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

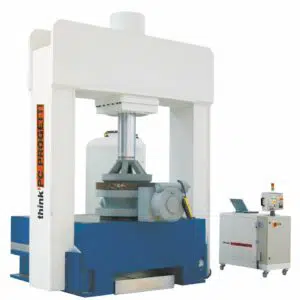

  • BV-PMC/550

    Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves,...

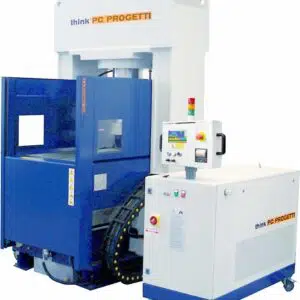

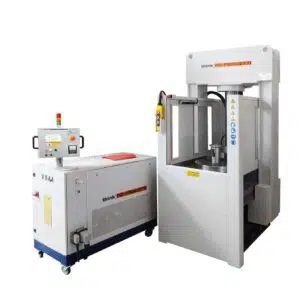

  • BV-PMC/500S

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...
  • BV-PMC/100SP

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...

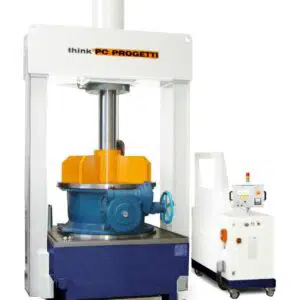

  • BV-PMC/350

    Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves,...
  • BV-PMV/350

    Vertical test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

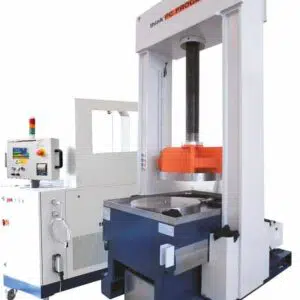

  • BV-PMV/200

    Vertical test rig with bore plugs clamping style; mobile upper side bridge allows vertical loading of the valve and the...

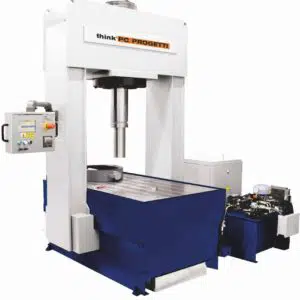

  • BV-PMC/200-2

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...

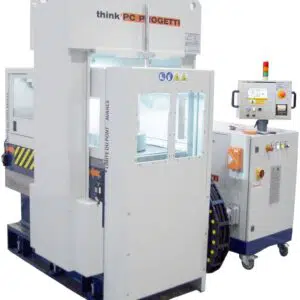

  • BV-PMC/200SP

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...

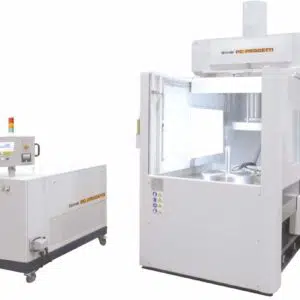

  • BV-PMC/200SH

    In the basement there is a water vessel and an external water vessel could be added as option. The use of...

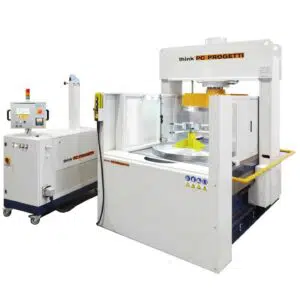

  • BV-PMC/200LP

    Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and...

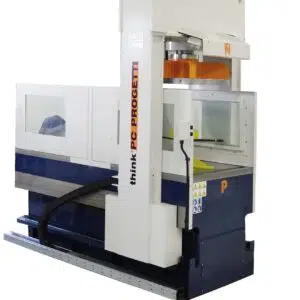

  • BV-PMC/100-2P

    Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves,...

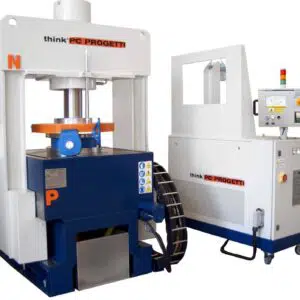

  • BV-PMC/100S

    The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The...

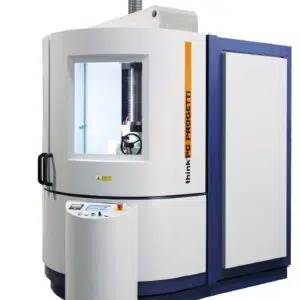

  • BV-PMMV/100SH

    Vertical test rig with universal clamping system; all valve termination kinds and even 90° shape valves can be clamped. In...
  • BV-PMCV/100H

    Vertical test rig with combined clamping style : inner radial seal and proportional press clamping facilities. The upper side screw...

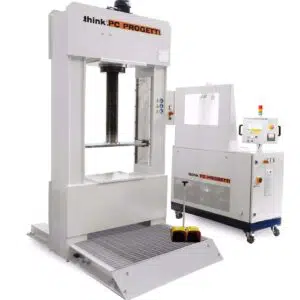

  • BV-1V/200

    Vertical test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that...

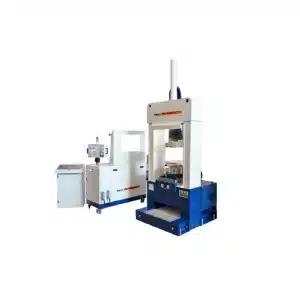

  • BV-CV/100

    Vertical test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved...
  • BV-CCV/20P

    Fully automatic vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside...
  • BV-CCV/15P

    Vertical test rig with an automatic test sequence. Combined clamping style: proportional press clamping and inner radial seals. A protection...
  • BV-3V/450

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests.
  • BV-3V/360

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests.
  • BV-3V/240

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests.
  • BV-3V/270L

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests. The screwed columns...
  • BV-3V/150LP

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests.

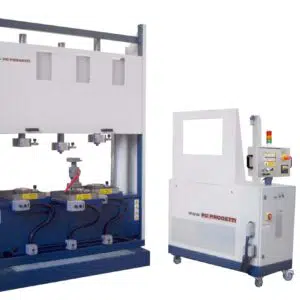

  • BV-3V/150P

    Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests. The screwed columns...

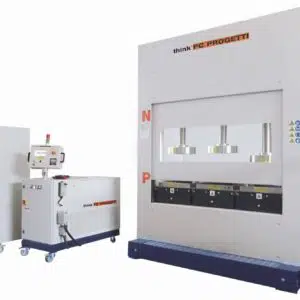

  • BV-3CV/240SH

    Vertical test rig with combined clamping style. It has 3 test places available with combined clamping.
  • BV-5V/150SH

    Vertical test rig with inner radial seal clamping style. 5 test places available for multiple pressure test.
  • BV-5CV/100P

    Vertical test rig with inner radial seal clamping style. It has 5 test places with combined clamping.
  • BV-CC3V/60SH

    Three station vertical test bench with combined "Bore plug" clamping. Valve length adjustment is performed by an upper side screwed...

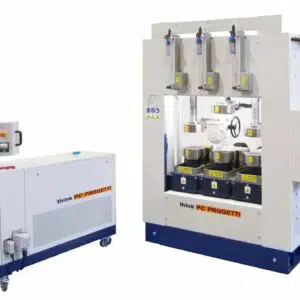

  • BV-3CV/60P

    Three test station vertical test bench with combined clamping. Valve length adjustment is performed by an upper side screwed column moved...

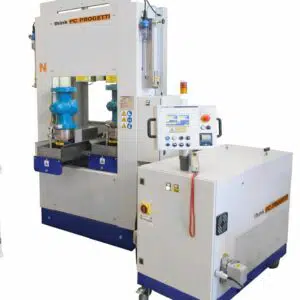

  • BV-2CV/60SH

    Double test station vertical test bench with combined clamping. Valve length adjustment is performed by the upper side screwed column moved...

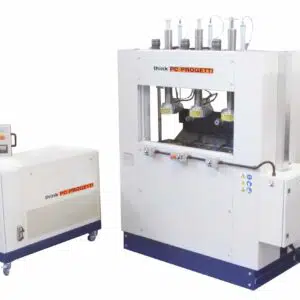

  • BV-3V/30SH

    Vertical test rig with inner radial seal clamping style. 5 test places available for multiple pressure test. The screwed columns assure complete...

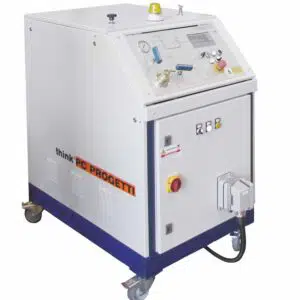

  • SKMA-100/CRYO

    Helium pressurization skid dedicated to cryogenic temperature leakage tests.

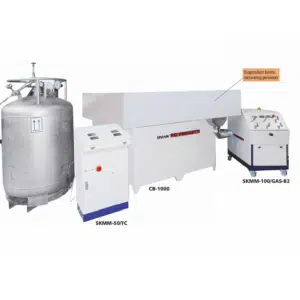

  • SKMM-50/TC + CV

    Cryogenic test vessel is now available with temperature control panel.
  • BV-5C-He/10

    Vertical test bench with press clamping system for 5 valves ports (included inner seat). It is able to perform Helium...

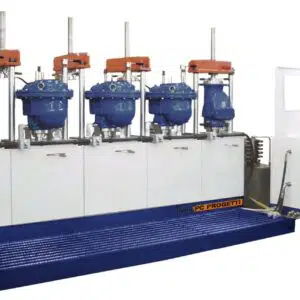

  • BV-5MV/20

    The upper side reaction bridge can be removed with a 90° rotation flag style. In this way loading procedures are...
  • BV-C-He/30

    Vertical test with a press clamping system. It is able to perform helium microleakage test.

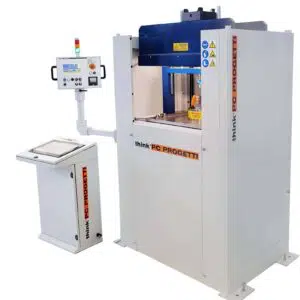

  • BV-C/30SH

    Vertical test bench with proportional press clamping. Valve clamping is performed by an hydraulic cylinder with proportional control.

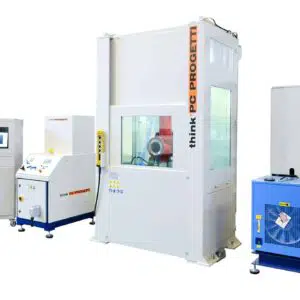

  • BV-M/90SH

    Test rig with claws clamping. Test of RF or RTJ valves could be executed in the real working conditions. The...
  • BV-M/60P

    Test rig with claws clamping. Test on RF or RTJ valves could be executed in real working conditions.

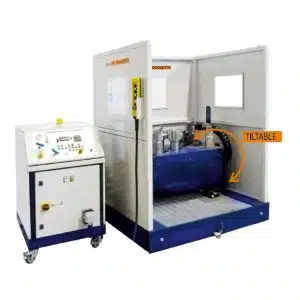

  • BVR-M/90

    Test rig with claws clamping. Test of RF or RTJ valves could be executed in real working conditions. The clamping...
  • BV-M/60

    Test rig with claws clamping. Test on RF or RTJ valves could be executed in real working conditions. The clamping...
  • SKMM-100/PSV

    Pressurization skid dedicated to small size PSV calibration procedures. It has a water reservoir inside the during tests performance.

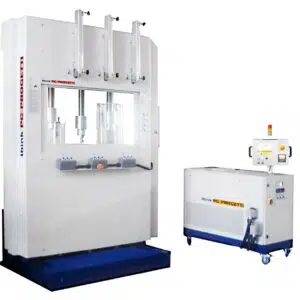

  • BVI-3CV/60

    3 station vertical test rig with clamping style Nr.3 combined. Each test place has the possibility to perform GAS tests...

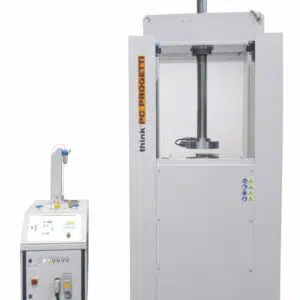

  • BVI-PMV/100P

    Water immersion Gas test rig. It has been designed to discover bubble leakages in valves casting. A water vessel is vertically moved...

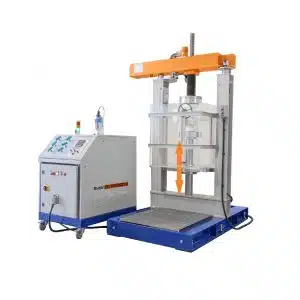

  • BVI-V/20

    Water immersion air test rig. It has been designed to discover bubbles leakages in valves casting.
  • SKA-100/He

    SKID for micro-leakage HELIUM tests for castings. It has been designed to control full automatic clamping rigs based on overpressure...
  • SKMA-100/PVS-2

    Pressurization skid dedicated to small size PSV calibration procedures. It is controlled by a PLC and a touch screen LCD...
