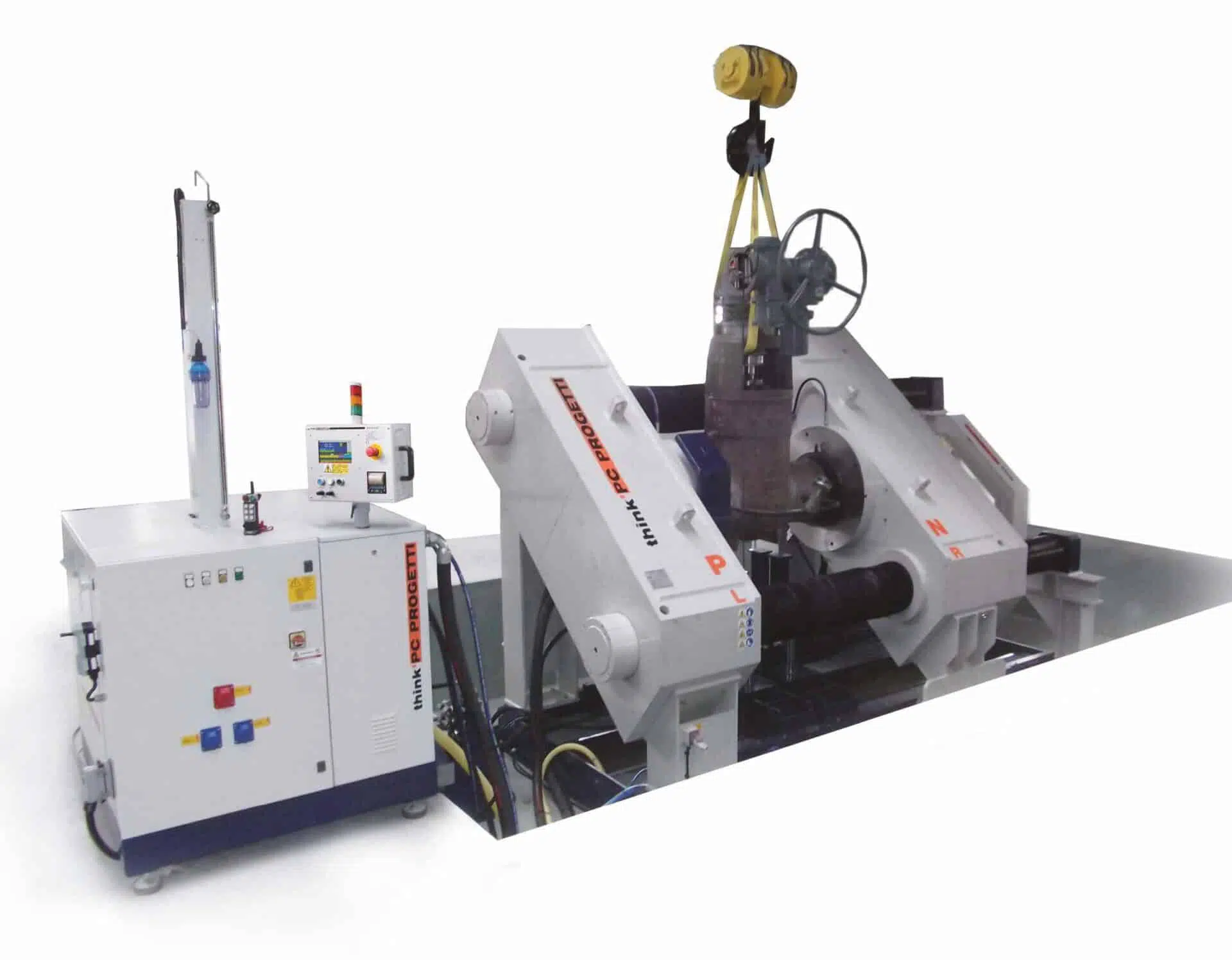

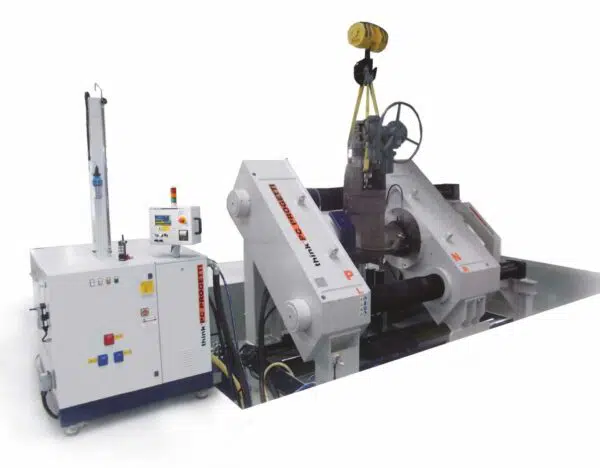

Horizontal test rig with inner radial seal clamping style.
The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by SKA-500 class pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
Reaction bridges can be prepared for articulated camera insertion and for seat inspections during testing.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

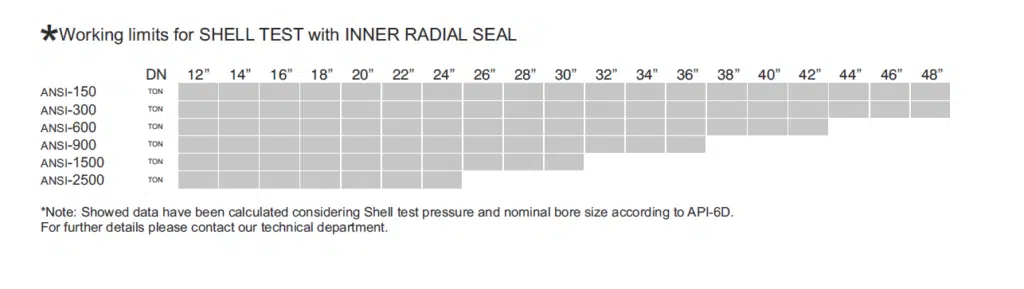

  • Reaction force1600 TON
  • Valve Length max2350 mm
  • Valve Length min200 mm
  • Columns inner clearance1600 mm
  • Flow Axes Height1900mm
  • Basement water vessel1500 Liters
  • Lifters2x20 TON
  • Terminations allowedRF, RJ, BW, SW
  • Clamping styleType 2 – Bore Plugs
  • Dimensions (mech)4790 (L) x 2290 (P) x 3125 (H)
