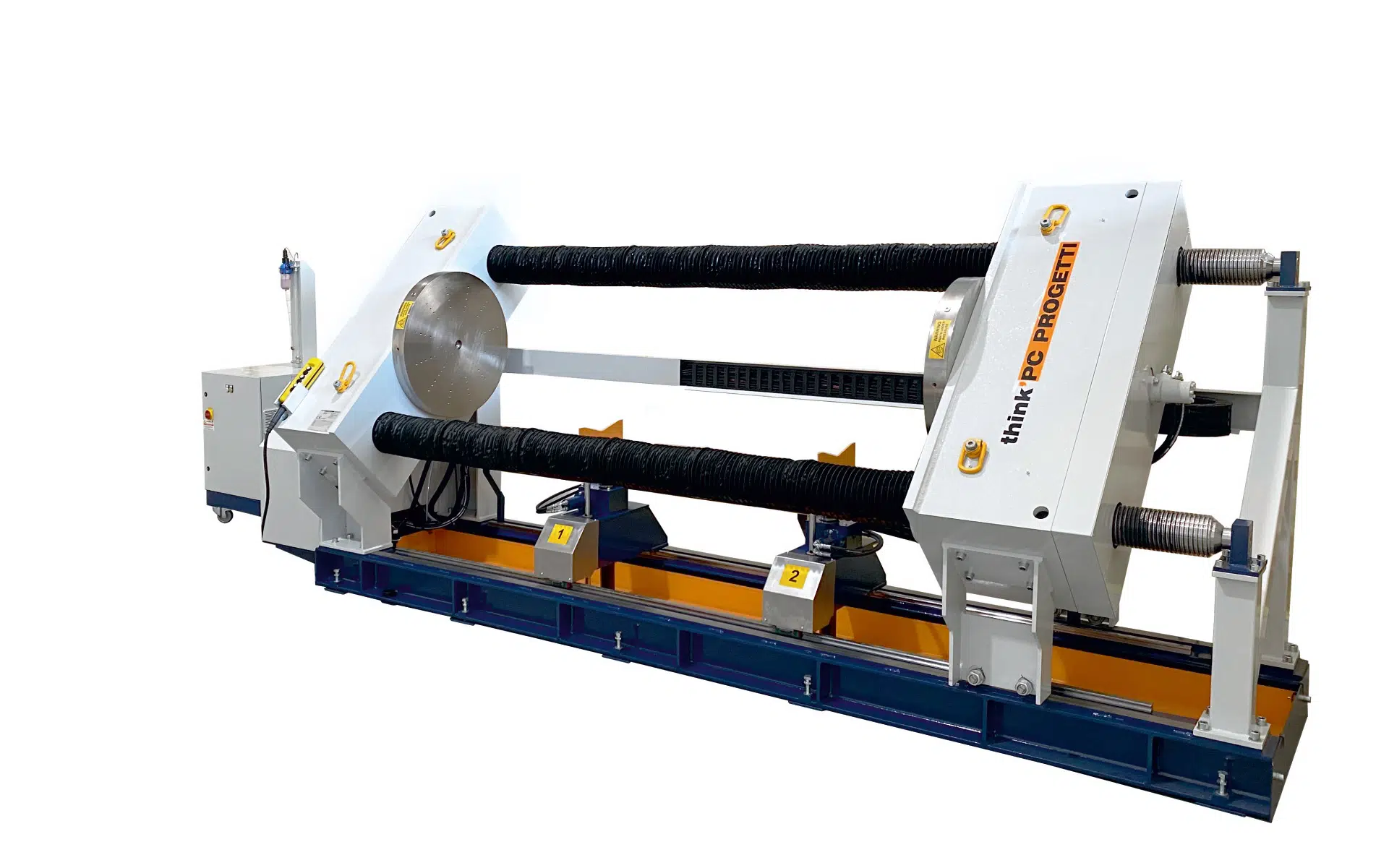

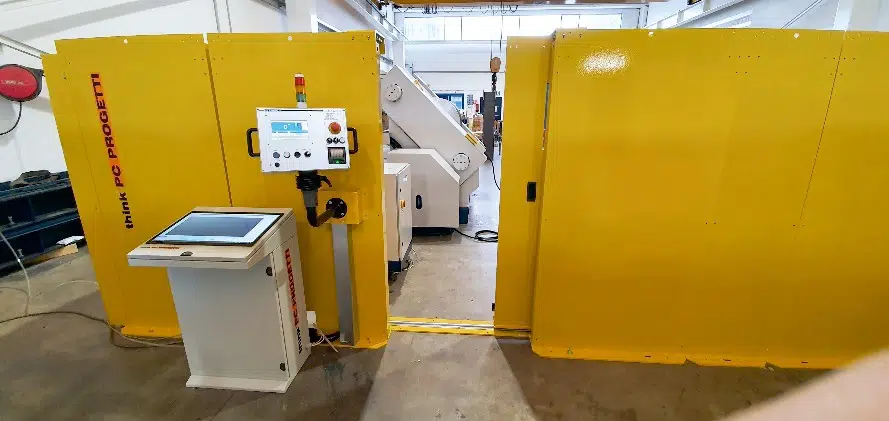

Horizontal test rig with bore plugs clamping style (inner radial seal). The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. A water vessel is installed as a water reservoir for test procedures. Complete flow meter sets could be included (option) to perform seat leakage tests on control valves. The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

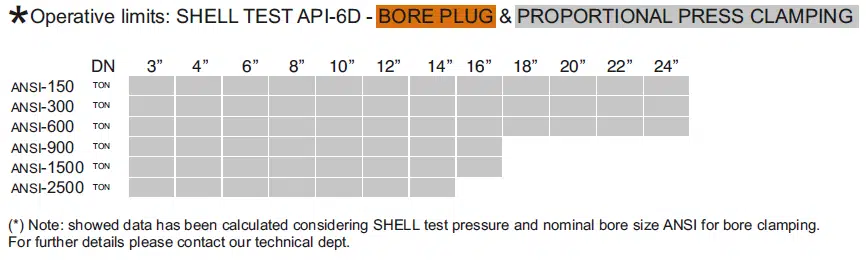

  • Reaction force450TON
  • Valve length max3000mm
  • Valve length min200mm
  • Columns inner clearance1100mm
  • Flow axes height1150mm
  • Basement water vessel400Liters
  • Clamping styleType 2 - bore plugs
  • Dimensions (mech)5215(L) x 1590(P) x 2095(H)
