BV-PMC/800

Category:

Mobile bridge proportional press clamping

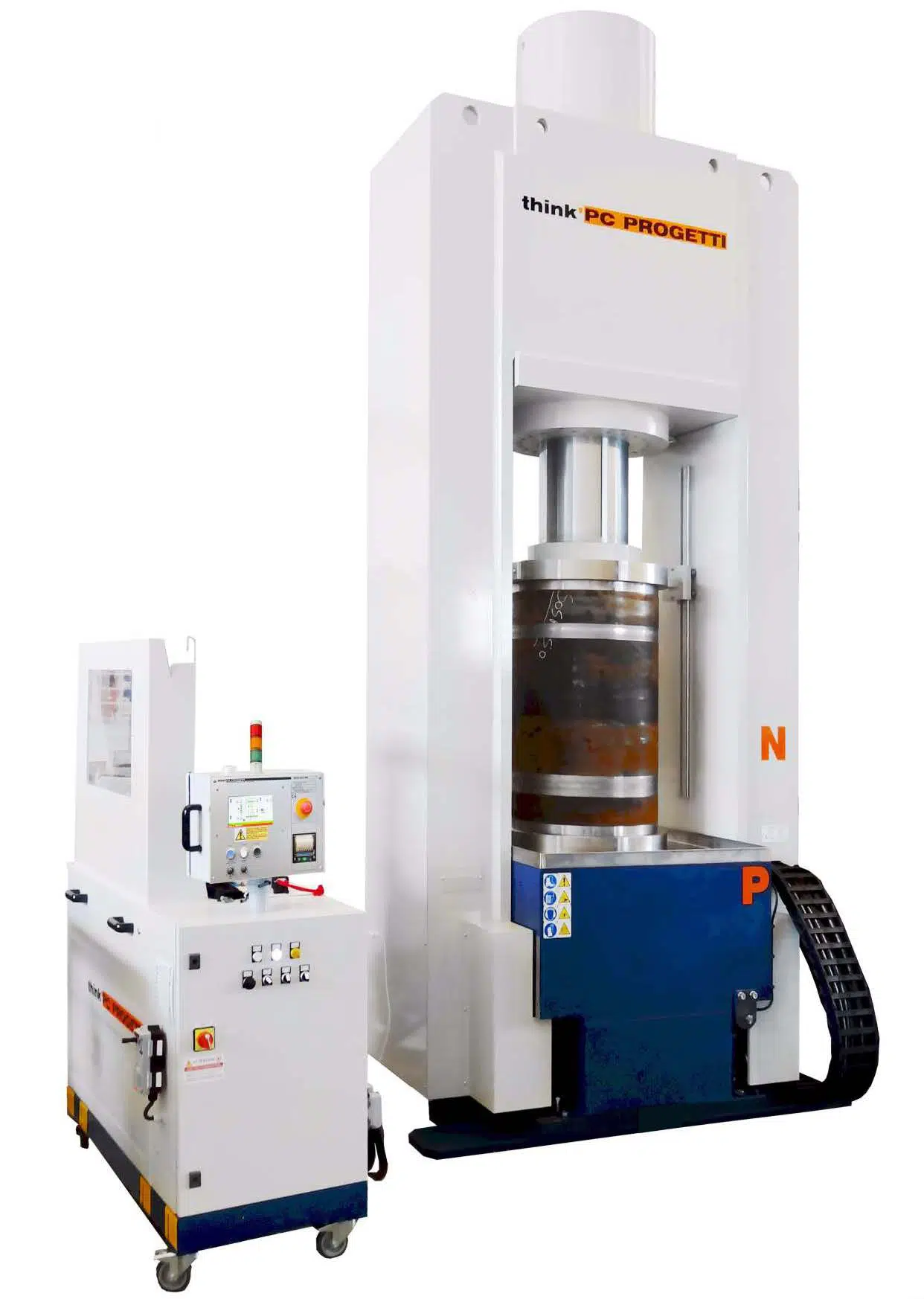

Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves, and the result load is reduced to minimal terms.
The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stand; while the first is working, the second could be prepared for other valves.
In the basement there is a water vessel and an external water vessel could be added as an option.
The use of a open castle as upper side reaction structure allows the user to make visual inspections of valve seats during the test.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force800 TON (10% minimum press clamping)
  • Working stand1 ( 2 on request)
  • Length max1500 mm
  • Length min200 mm
  • Columns inner clearance1040 mm
  • Loading Height1050 mm
  • Bridge stroke800 mm
  • Basement water vessel350 Liters ca.
  • Terminations allowedRF, RJ
  • Clamping styleType 1 – Proportional press clamping Automatic within 10..100% interval, proportional to hydrostatic pressure inside the valve under test. Regulation can be controlled by the operator
  • Dimensions1800 (L) x 2060 (P) x 4500 (H)
