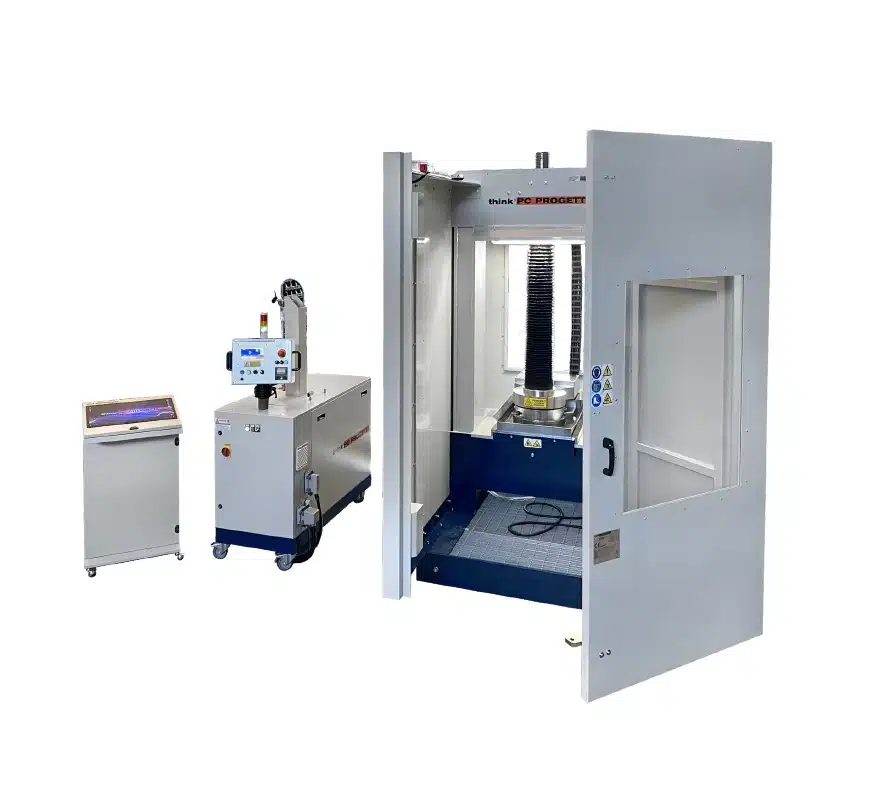

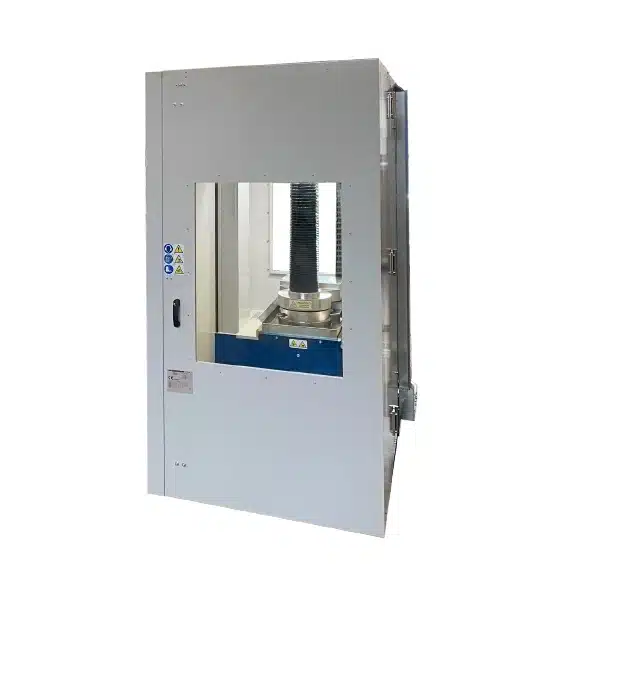

Vertical test rig with combined clamping style: inner radial seal. The upper side plateau is moved by a screwed column that assures complete absence of external forces on valves body. This prerogative makes it compliant to the most widespread inter national test standards. In the basement there is a water vessel and an external water vessel could be added as option. The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force200 TON (See working limits table)
  • Max valve length 1100 mm
  • Min valve length 150 mm
  • Clearance between columns800 mm
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 2 – Inner radial seal (Bore plugs)
  • Dimensions1375(L) x 2325(D) x 3820(H)
