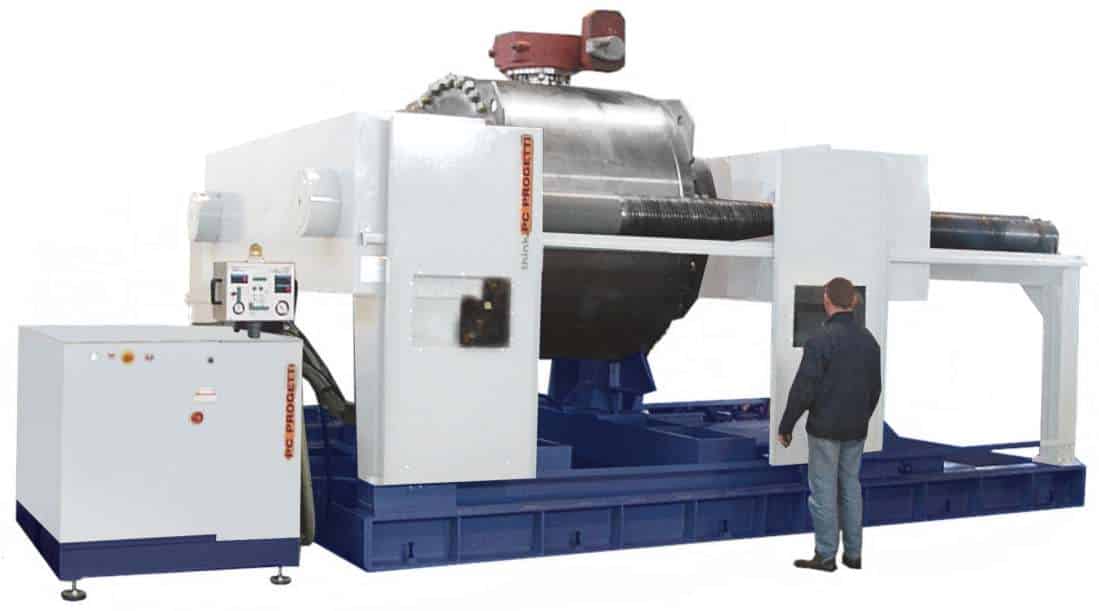

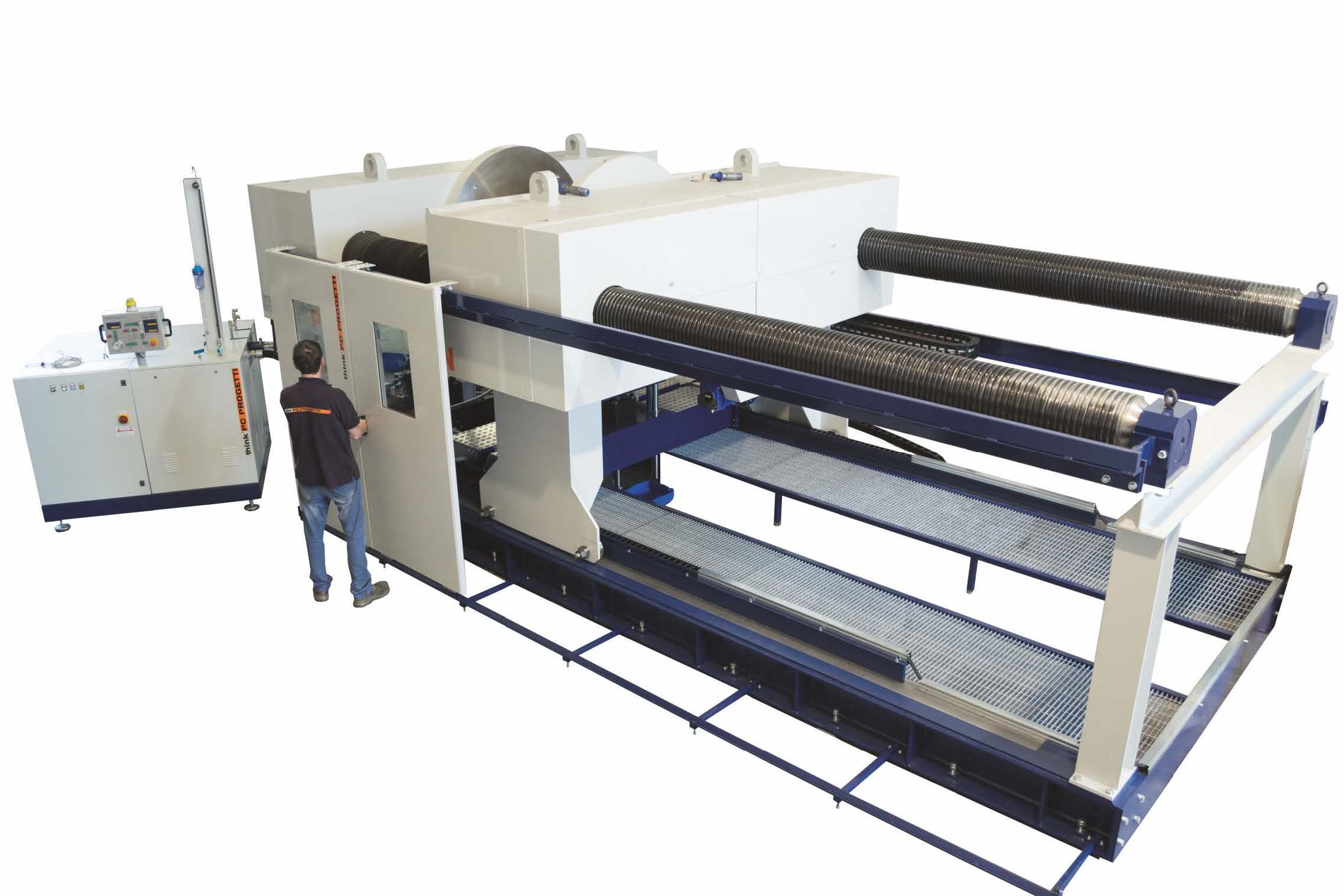

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. A water vessel is installed in the basement as water reservoir for test procedures. The rig is controlled by SKA 1000 pressurization skid; to have more information about please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

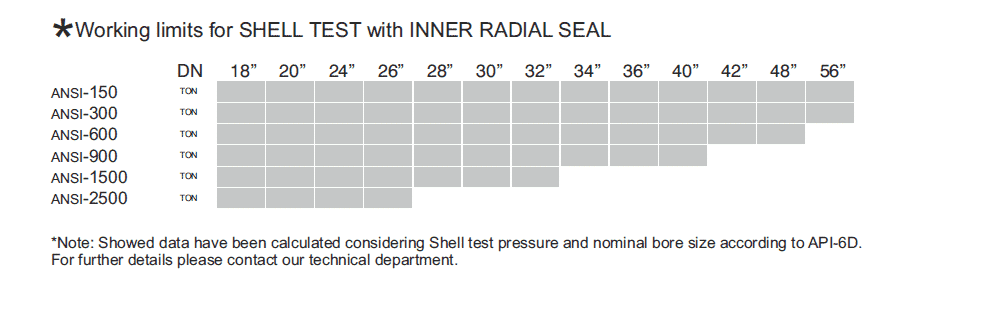

  • Reaction force1800TON (See working limits table)
  • Max length 4000mm
  • Min length 600mm
  • Columns inner clearance2400mm
  • Basement water vessel2900Liter ca.
  • Terminations allowedBW, SW, RF, RJ
  • Lifters2x30 TON
  • Clamping styleType 2Inner radial
  • Dimensions (Mech)6812 (L) x 3580 (P) x 2661 (H) mm
