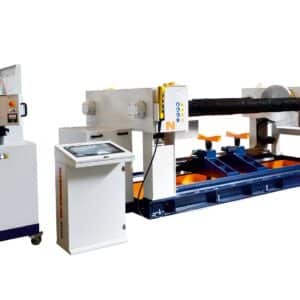

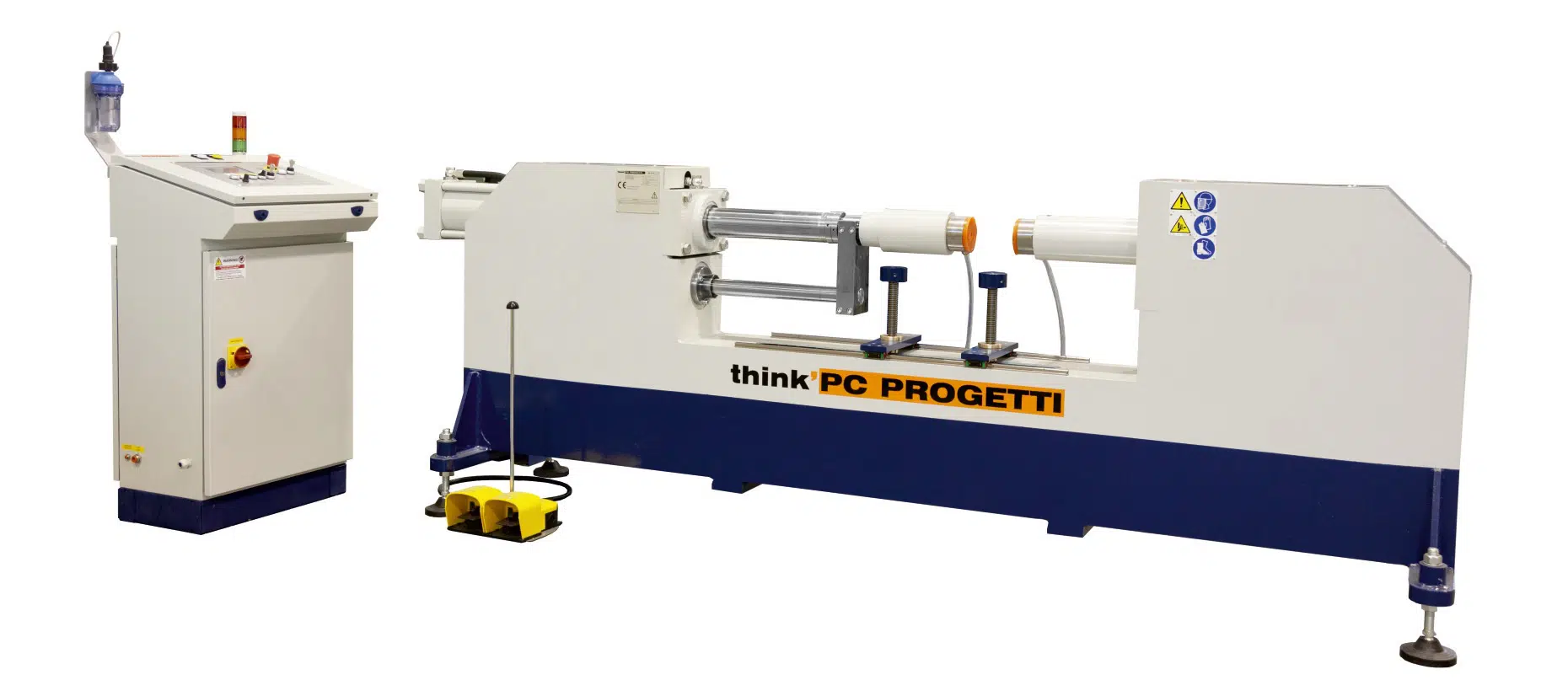

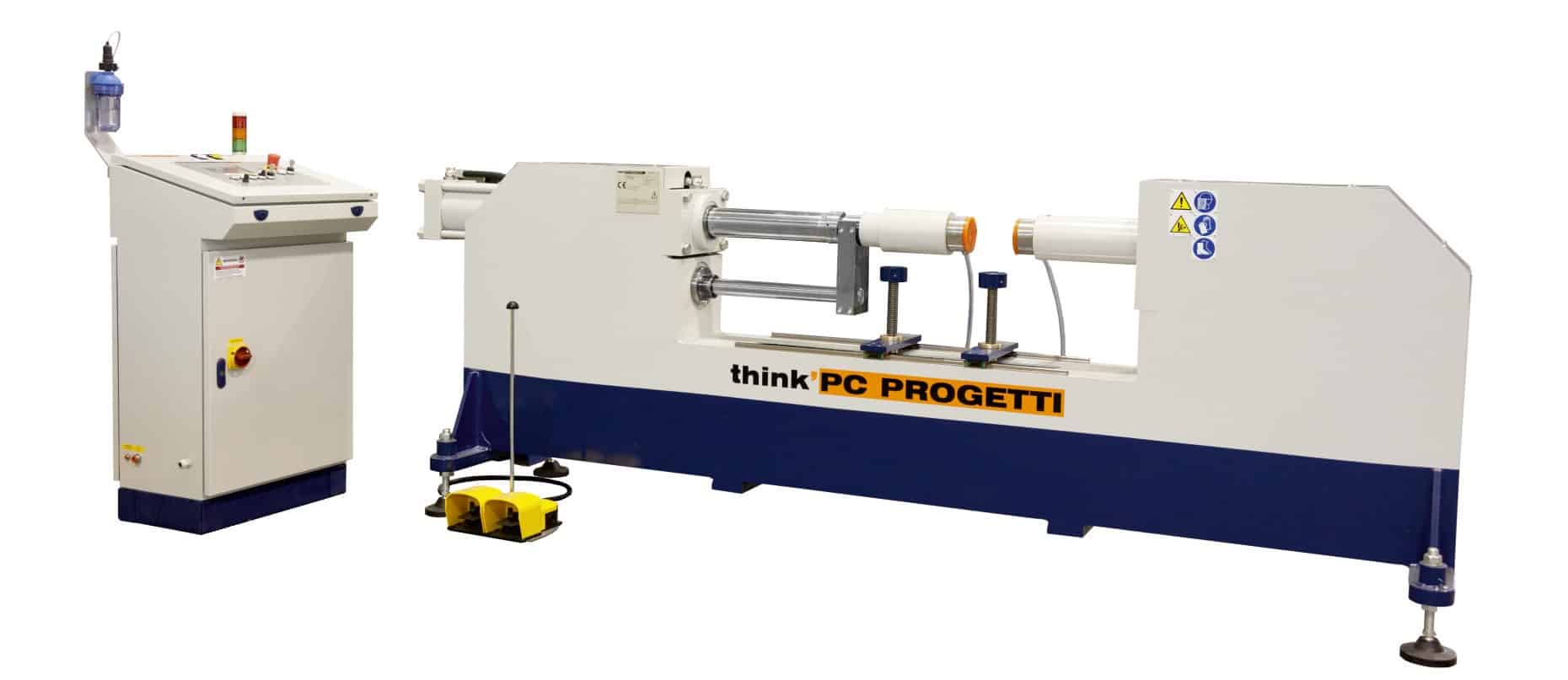

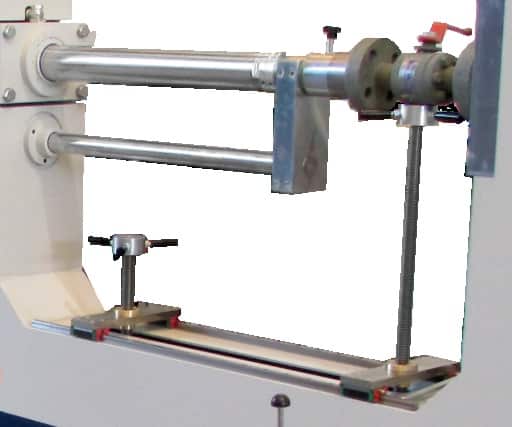

Horizontal test rig with press clamping facilities. The particular “C” shape allows the accommodation of valves completed by a “Control panel” that may increase valve shape dimension in large terms (i.e. Control valves).

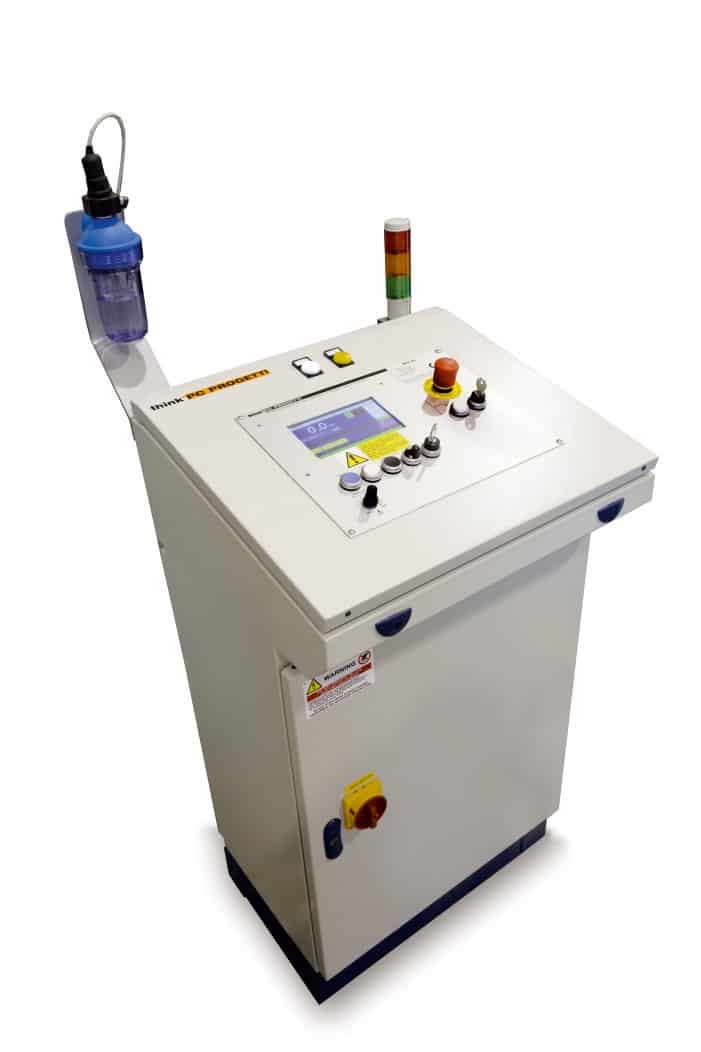

An hydraulic cylinder makes press clamping with or without proportional control. SKM or SKA class pressurization skid controls the rig.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

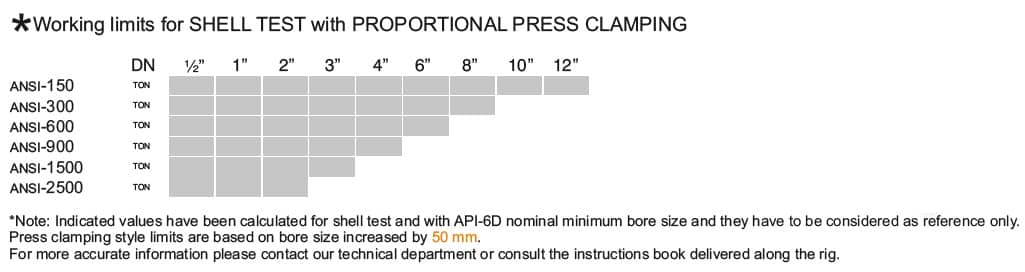

- Reaction force4/40 TON (10% minimum press clamping) (See working limits table)
- Max length 850 mm
- Min length0 mm
- Flow axes height1180 mm
- Terminations allowedRF, RJ
- Clamping styleType 1 – Press Clamping
- Dimensions3000 (L) x 300/700 (P) x 1350 (H) (Mechanical structure)
