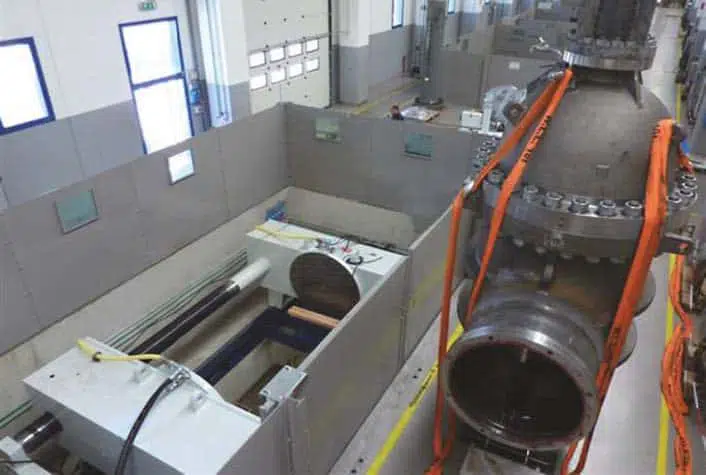

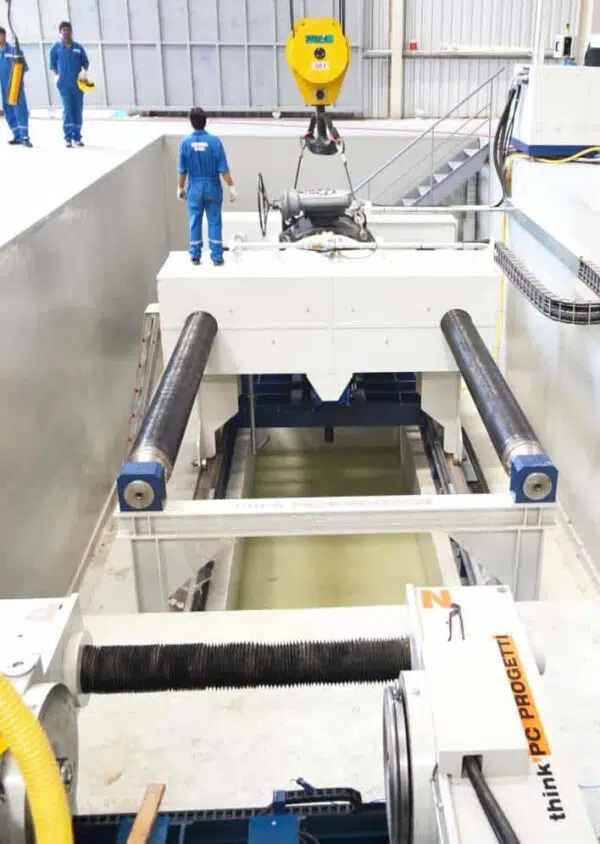

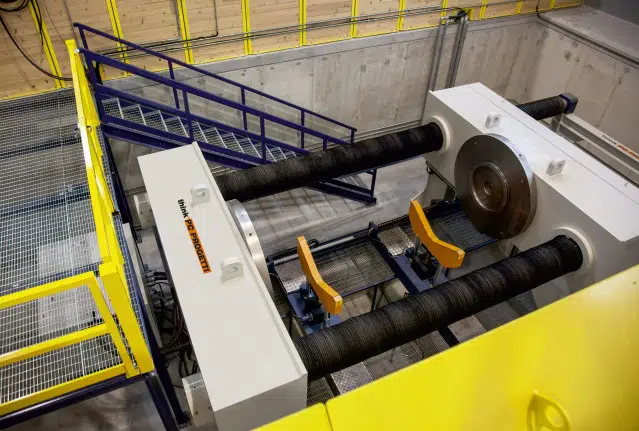

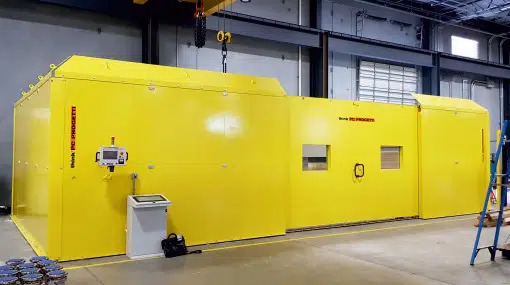

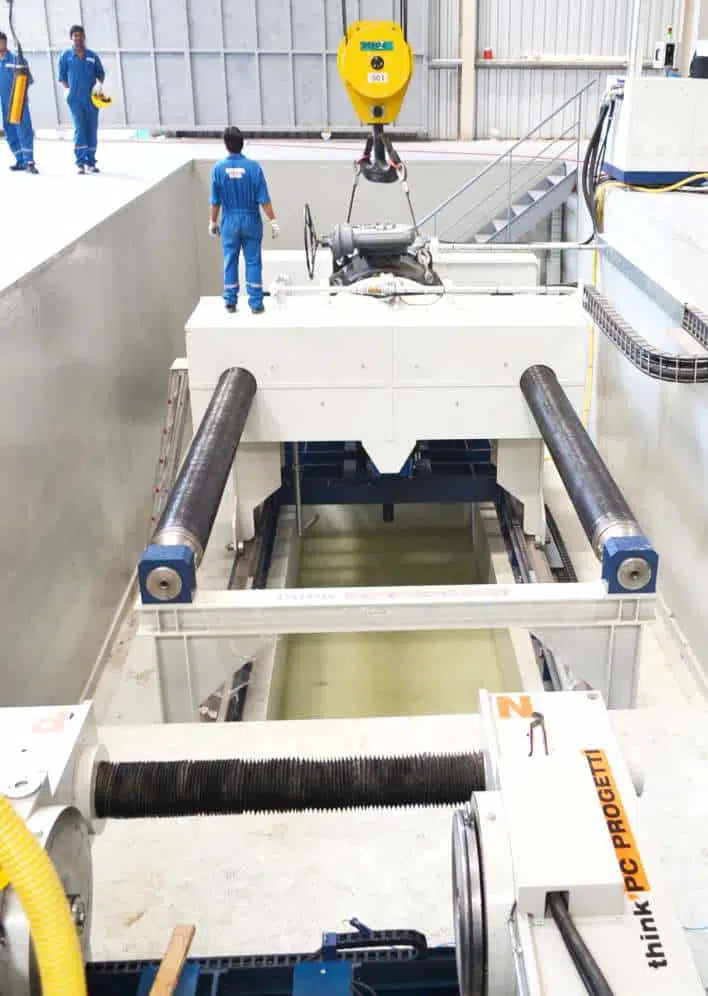

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards.

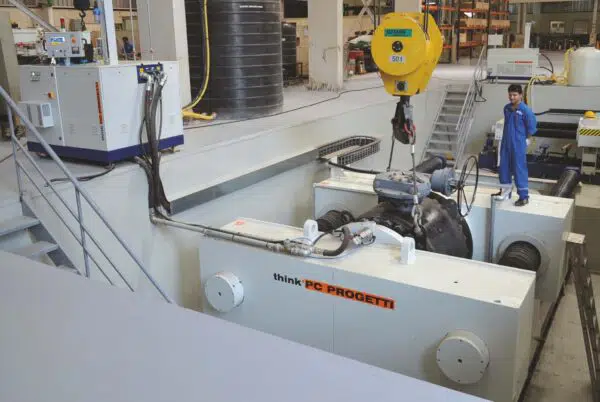

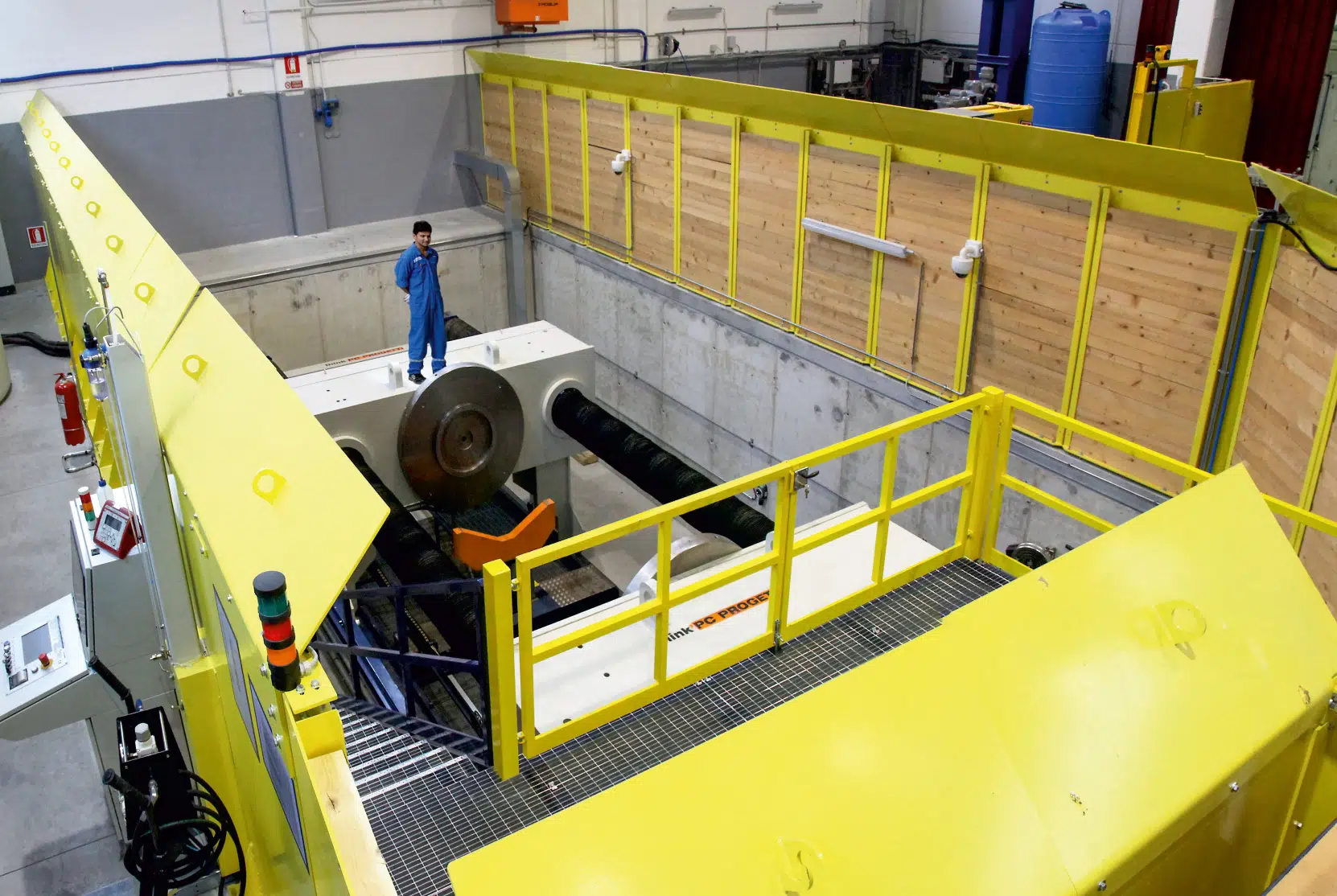

The rig is controlled by “SKA or SKM class”pressurization skid; to have more information about please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information. A water vessel is installed in the basement as water reservoir for test procedures.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

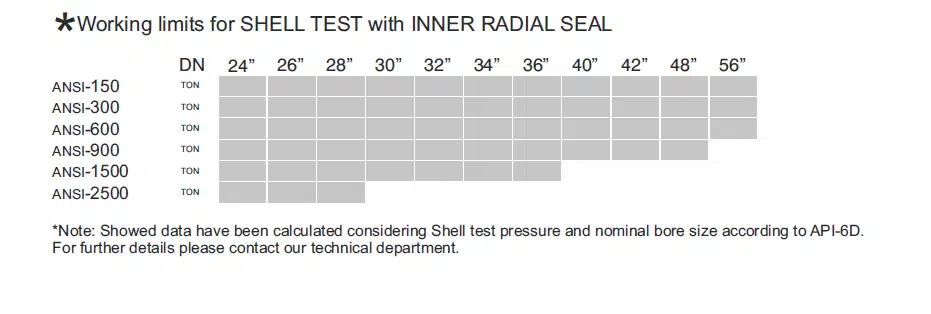

  • Reaction force2500 TON (See working limits table)
  • Max length 5400 mm
  • Min length 800mm
  • Columns inner clearance2500 mm
  • Flow axes height2200 mm
  • Basement water vesseloptional
  • Lifters2x30 TON
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 2 – Inner radial
  • Dimensions (MECH)7800 (L) x 3610 (P) x 2910 (H) mm
