COMBINED CLAMPING, INNER RADIAL SEAL + P.E.A. ADAPTORS NR. 3 AXES MOVEMENT CONTROL

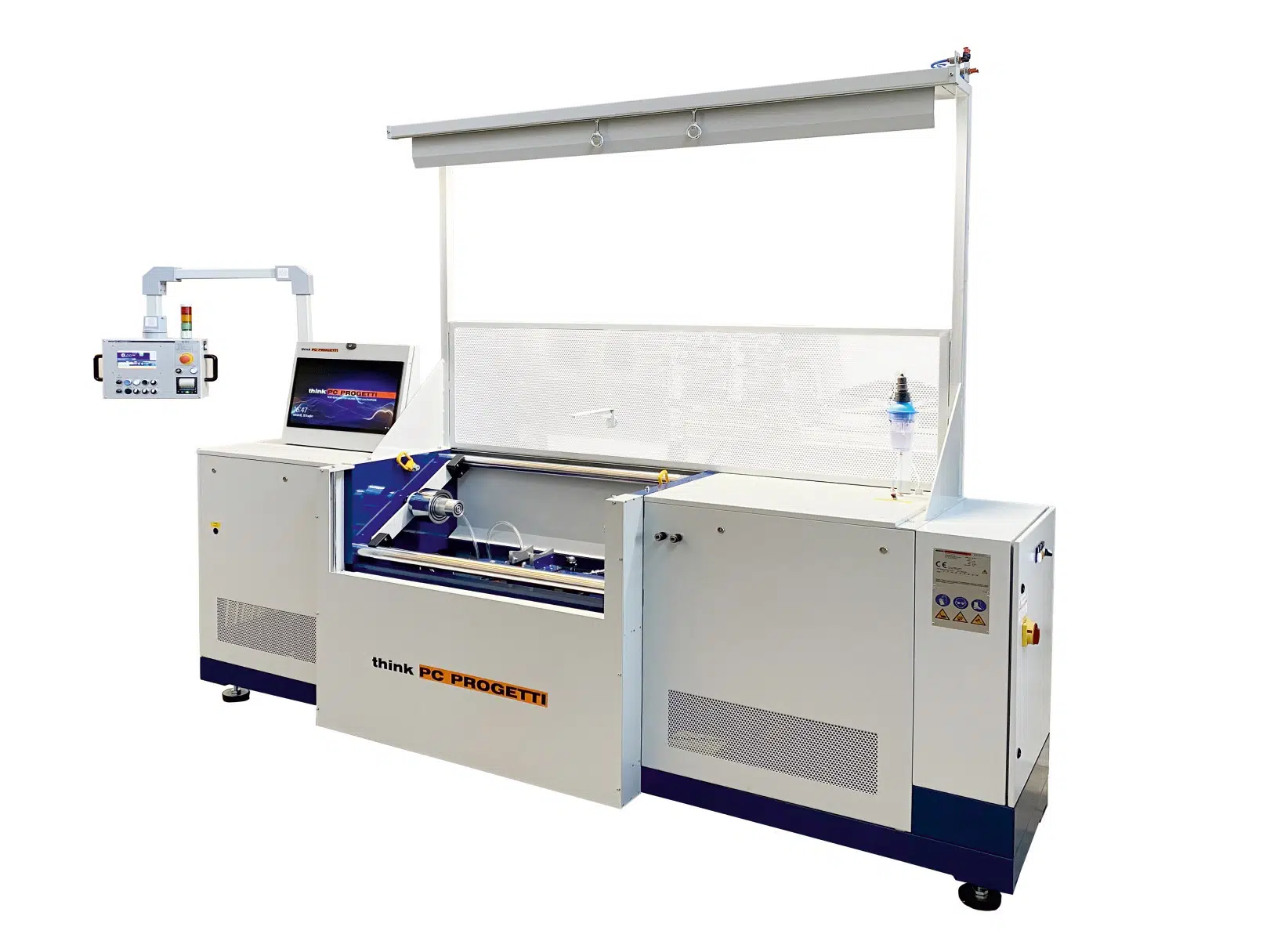

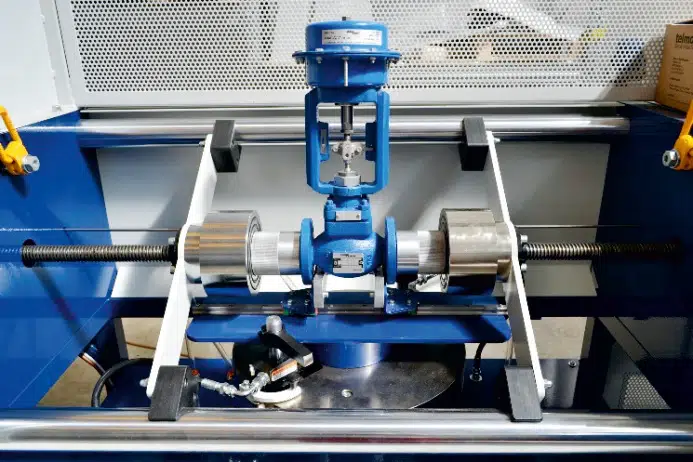

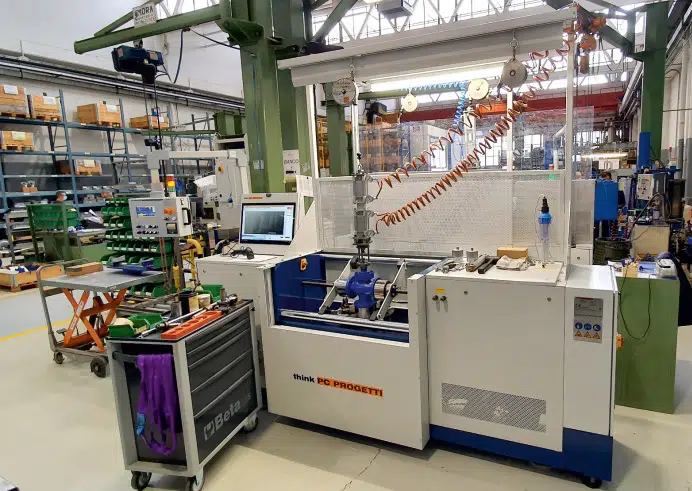

Horizontal test rig with clamping with “PEA adaptors” & claws clamping.
Designed to facilitate 2way / 3way control valve assembly operations and for performing AIR low pressure leak test.
A three axes position control allows accurate seals plateau positioning according to product DB dimensions details.
Full set of digital flow-meter are installed to measure AIR leak flow for III, IV & VI valve leak class.
The test bench is fully interconnected to the main workshop server to receive working order and to transmit test reports in real time.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force1 TON
- Max valve flange 220 mm
- Max valve length (face to face)350 mm
- Min valve length (face to face)130 mm
- Terminations allowedRF, RJ, BW, SW
- Clamping styleType 2 + 7 – Combined with P.E.A.
- Dimensions3100 (L) x 720 (D) x 2650 (H)
