Double claws clamping with tiltable bridge

Horizontal test rig with double claws clamping and tiltable on a side.
The right hand-side is movable to adjust to valves length.
Claws clamping can be performed only on flanged valves.
It allows testing of mechanical stress on flange neck during test performance.
Besides, the clamping force has no influence on valve seat behavior during test, due to the absence of external forces applied.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Viene descritta la versione standard. I banchi prova possono essere personalizzati in qualsiasi aspetto tecnico secondo le preferenze del cliente.(In attesa di brevetto)

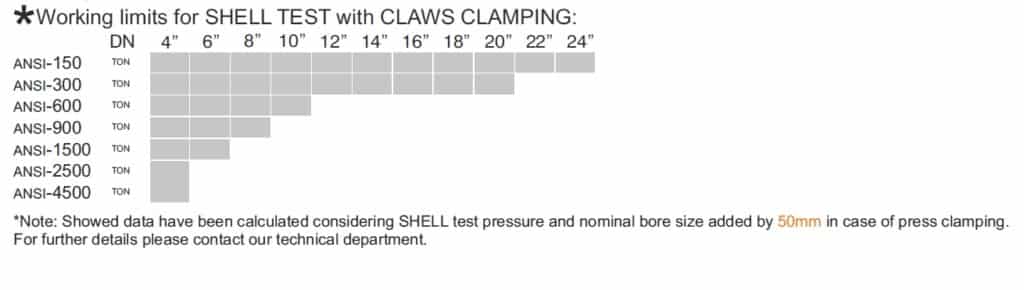

  • Reaction force200 TON
  • Length max1700 mm
  • Length min100 mm
  • Flange diameter max700 mm
  • Flange diameter min120 mm
  • Flange thickness max100 mm
  • Flange thickness min0 mm
  • Flow axes height1070 mm
  • Basement water vessel800 Liters ca.
  • Terminations allowedRF, RJ
  • Clamping styleType 6 – Double claws clamping
  • Dimensions (mech)3500 (L) x 1800 (D) x 1625 (H) mm
