Claws clamping + portable clamping device

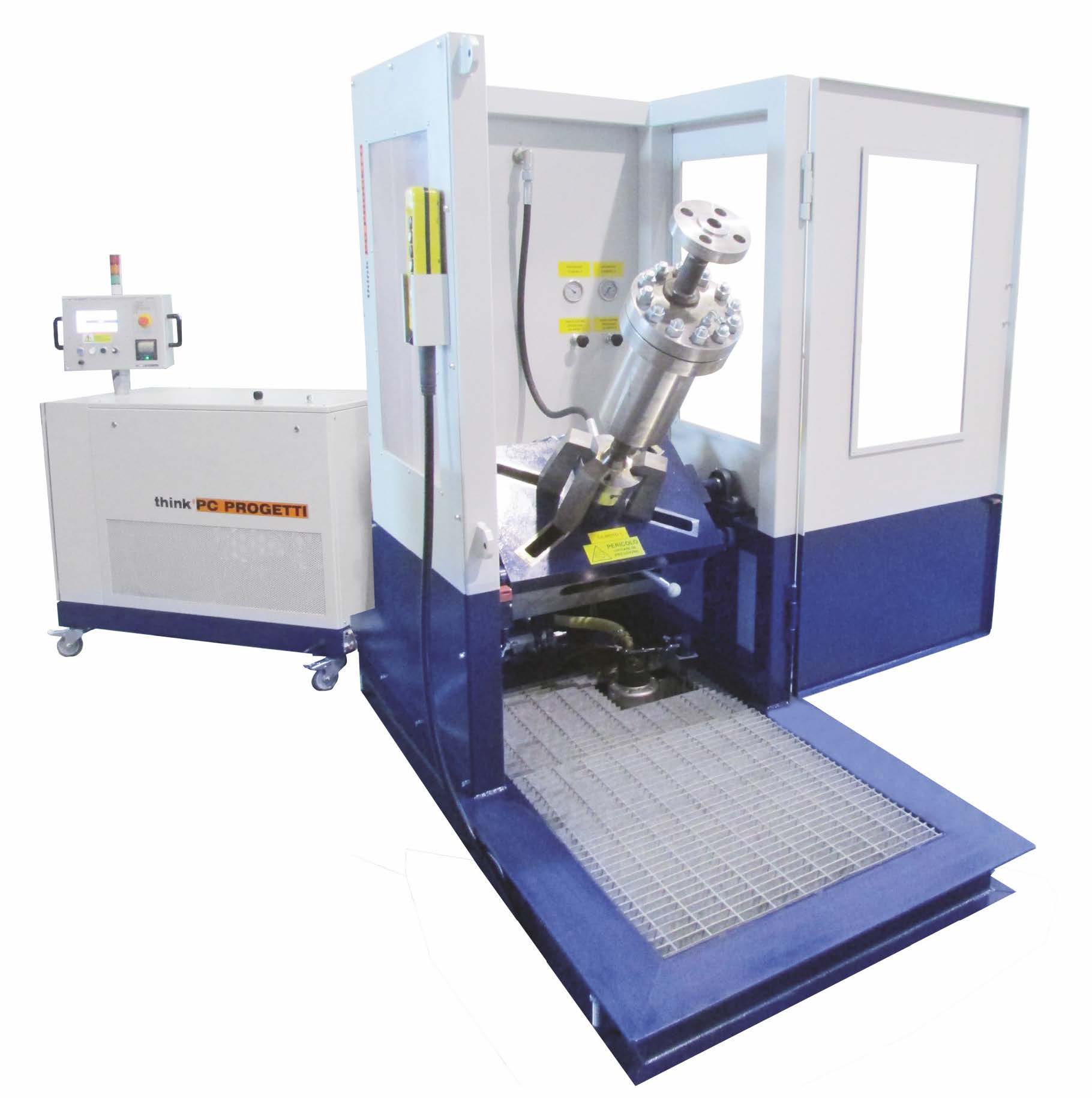

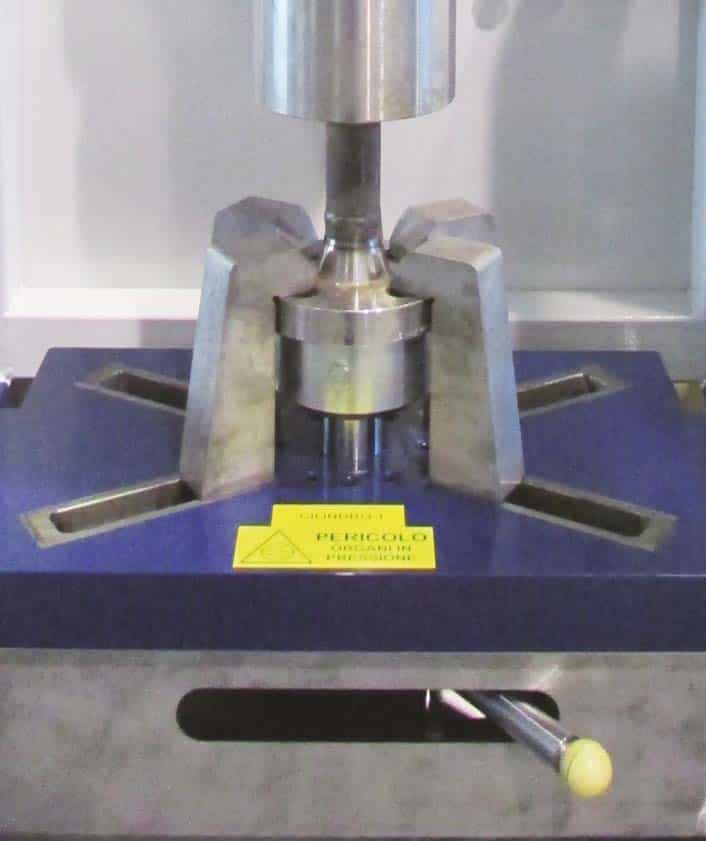

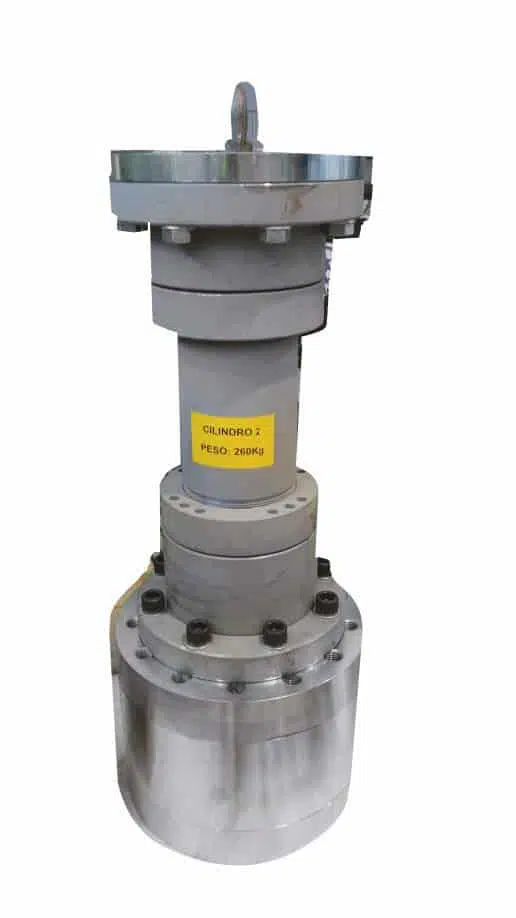

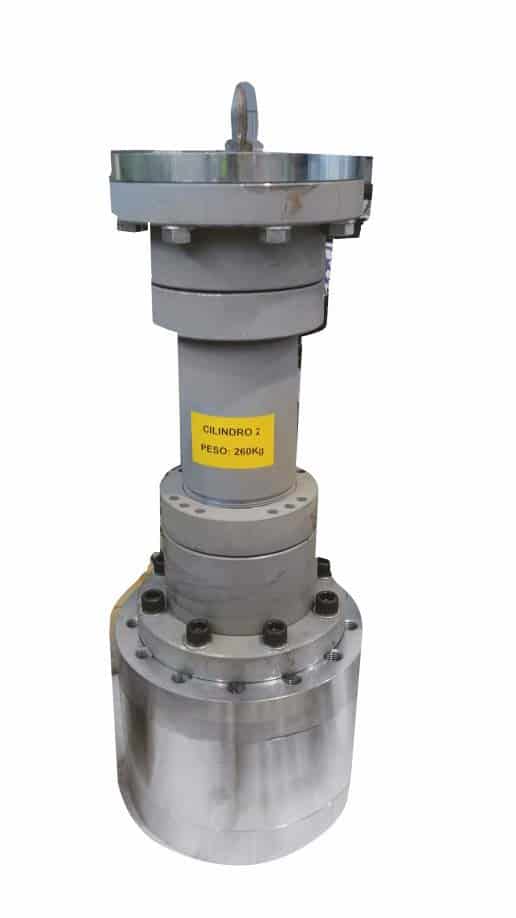

Tiltable Single/Double claws clamping with floor fixed claws clamping unit, and an optional portable clamping unit.
Claws clamping can be performed only on flanged valves.
It allows the testing of mechanical stress on flange neck during test performing.
Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied.
Even VISUAL test on valve seat during test is facilitated.
Armored fairing system ensures operatos safety.
The rig is controlled by SKMM-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force20 TON
  • Max flange Ø200 mm
  • Min flange Ø 90 mm
  • Flange thickness max10/65mm
  • Tilt angle90°
  • Basement water vessel100 Liters
  • Terminations allowedRF, RJ
  • Clamping styleType 5 – Claws only
  • Dimensions (mech)1020 (L) x 1940 (D) x 1800 (H)
