Double claws clamping with tiltable bridge

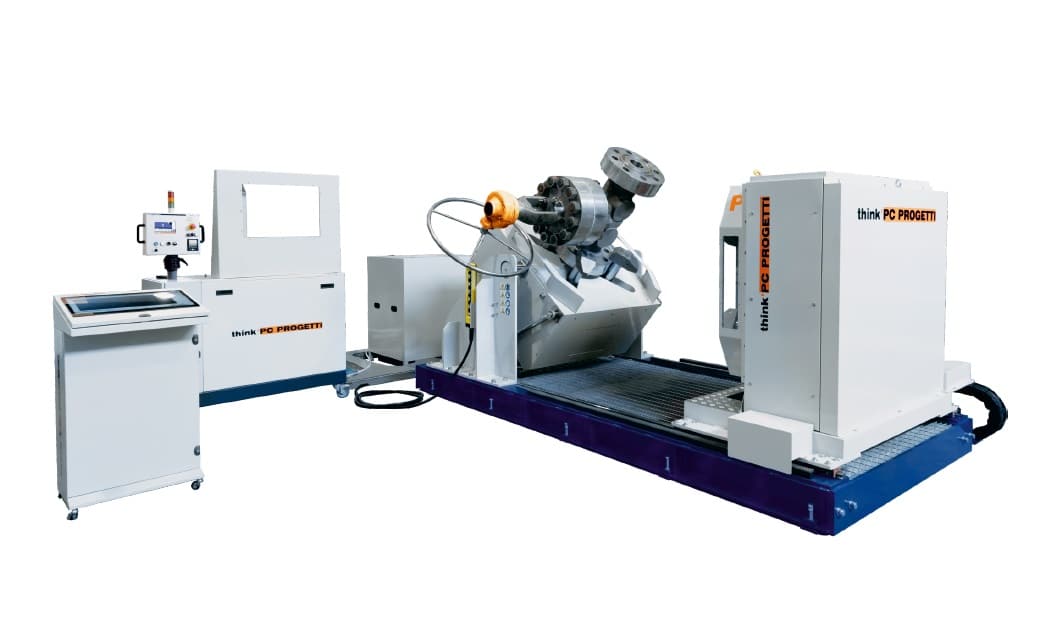

Horizontal test rig with double claws clamping and tiltable on a side. The right hand-side is movable to adjust to valves length. Claws clamping can be performed only on flanged valves. It allows testing of mechanical stress on flange neck during test performance. Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied. The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig a could be completed with several options and accessories, please contact our sale office to have mor information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force150 TON
  • Max valve length 850 mm
  • Min valve length 178 mm
  • Max flange diameter650 mm
  • Min flange diameter 150 mm
  • Max flange thickness 115 mm
  • Min flange thickness20 mm
  • Flow axes height1080 mm
  • Basement water vessel300 Liters
  • Terminations allowedRF, RJ
  • Clamping styleType 6 – Double claws clamping
  • Dimensions (mech)3470 (L) x 2030 (D) x 1650 (H) mm
