Claws clamping w/90° tiltability

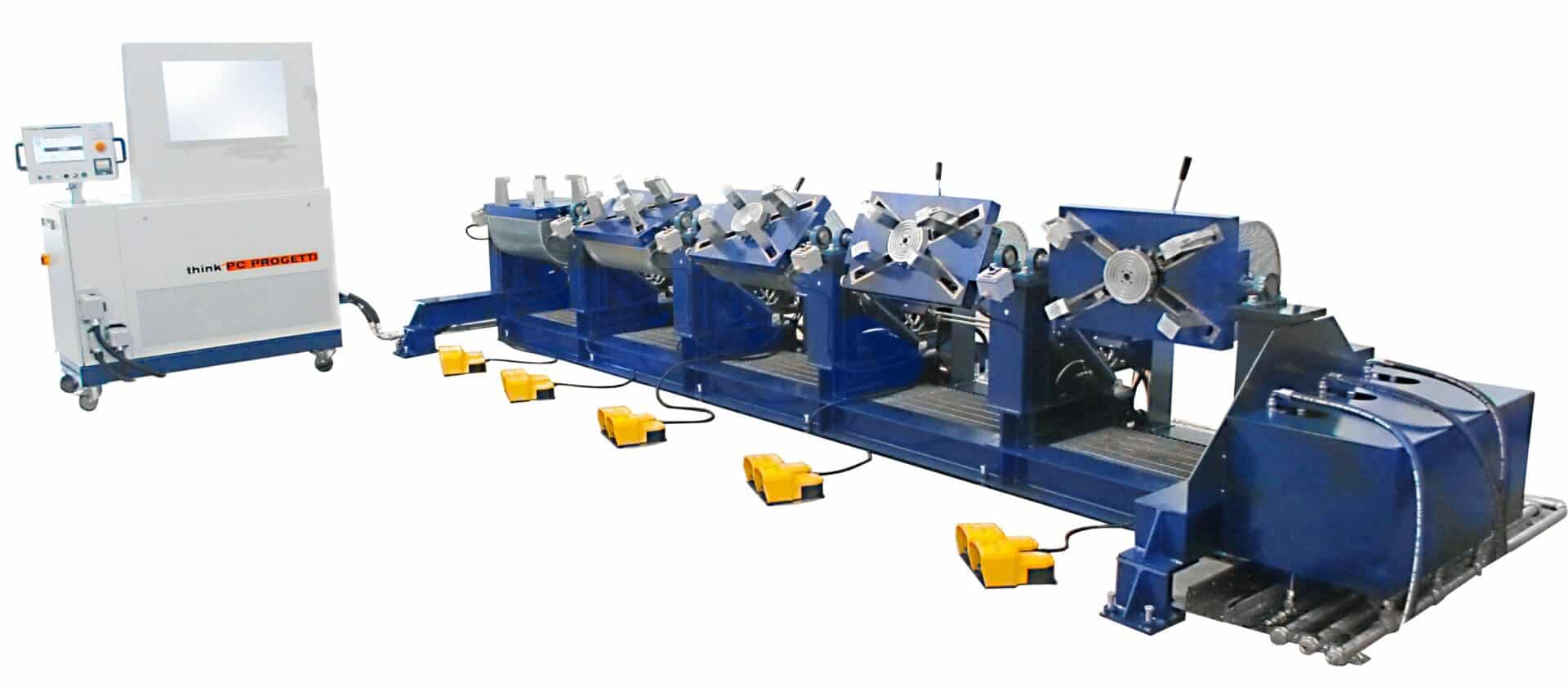

Five station tiltable rig with Single/Double claws clamping with a floor claws clamping unit. Clamping can be performed only on flanged valves.
It allows the verification of mechanical stress on flange necks during testing. Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied.
There are different pressure targets for each station VISUAL test on valve seat during test is facilitated.
The rig is controlled by a SKMA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

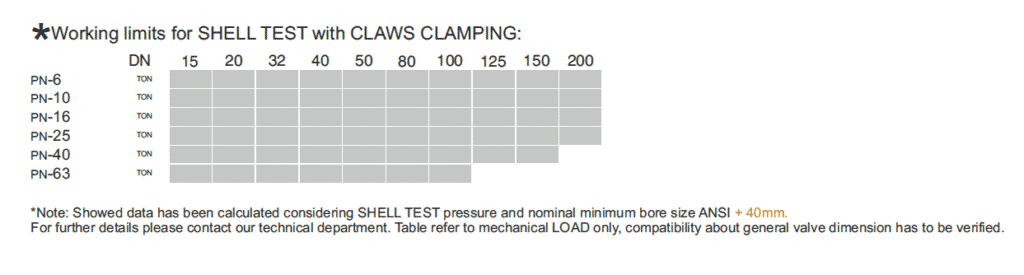

  • Reaction force5 x 20 TON
  • Max flange Ø400 mm
  • Min flange Ø90 mm
  • Flange thickness max10/65mm
  • Tilt angle0° - 90°
  • Basement water vessel500 Liters
  • Terminations allowedRF, RJ

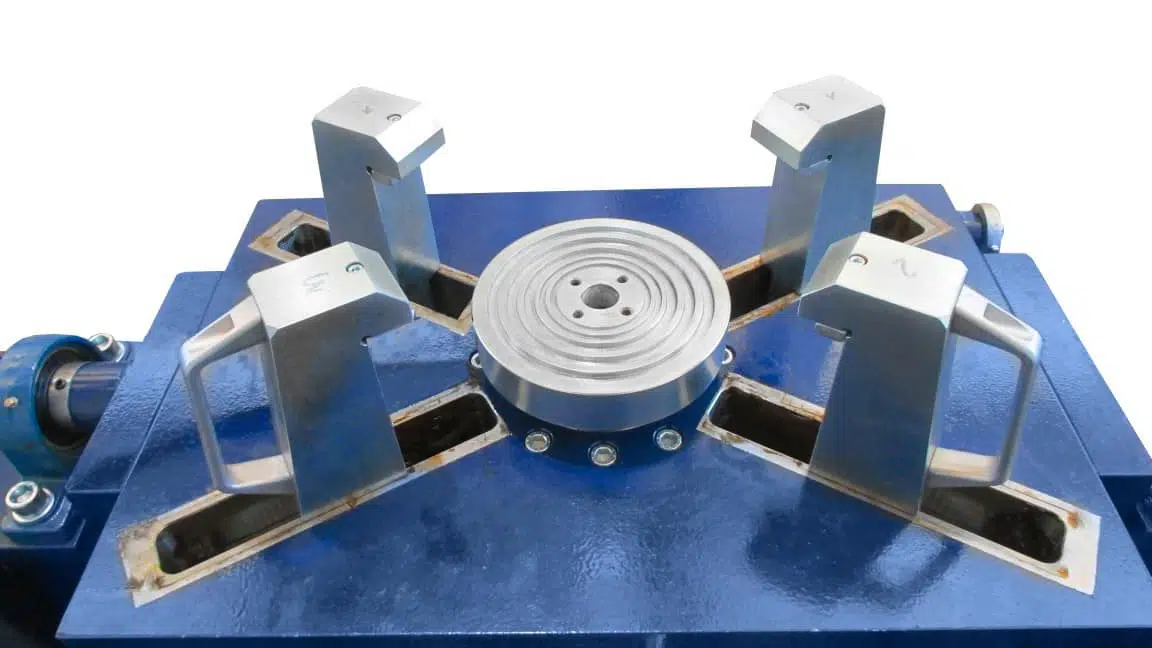

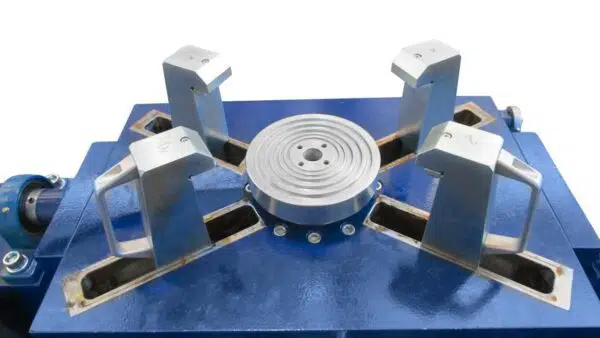

  • Clamping styleType 5 / 6 – Claws / Double Claws
  • Dimensions (mech)5405 (L) x 1850 (P) x 1040 (H)
