CLAWS CLAMPING WITH FULL SURROUNDING FAIRING SYSTEM

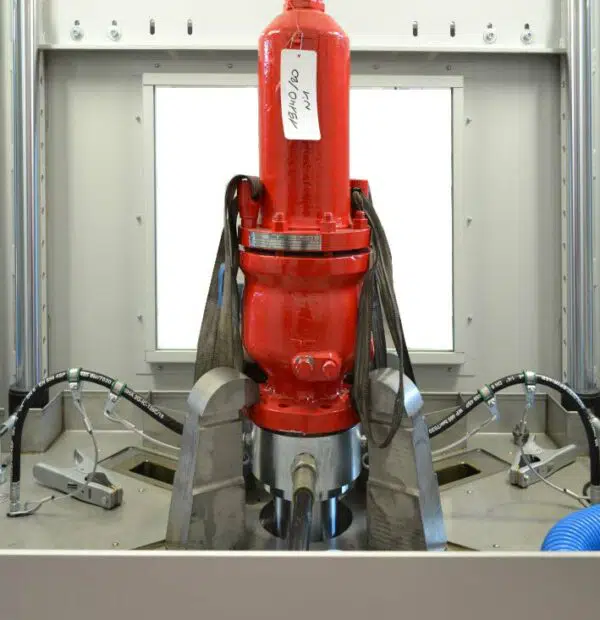

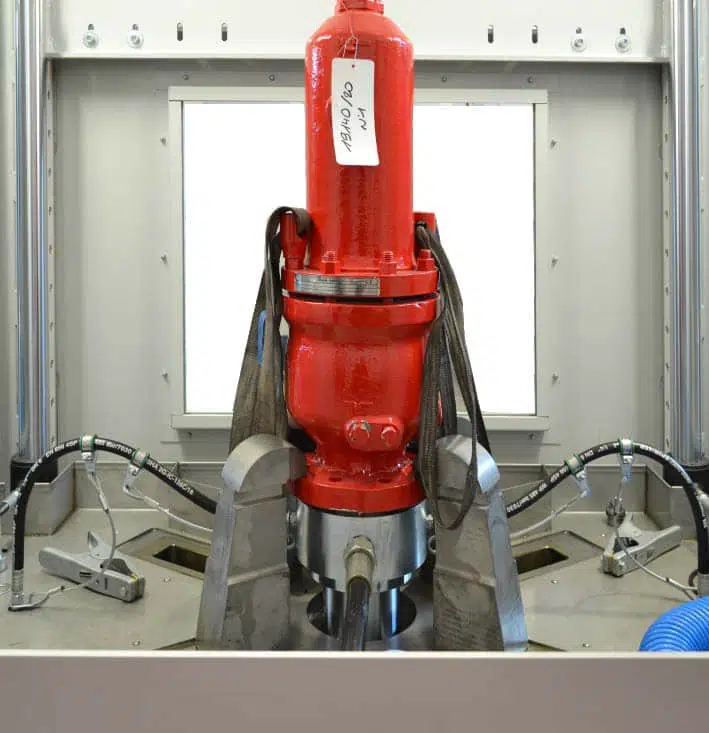

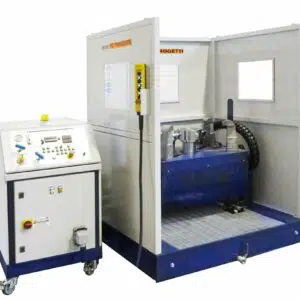

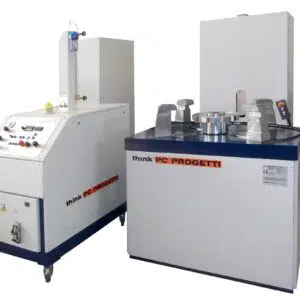

Test rig with claws clamping.
Test of RF or RTJ valves could be executed in the real working conditions.
The clamping is hydraulic on/off type.
This prerogative makes it suitable for PSV valves and for flow valves.
The auto-centering movement of claws and tilting is hydraulically or pneumatically controlled (as option).
In the basement there is a vessel for test fluid and additional vessel are available.

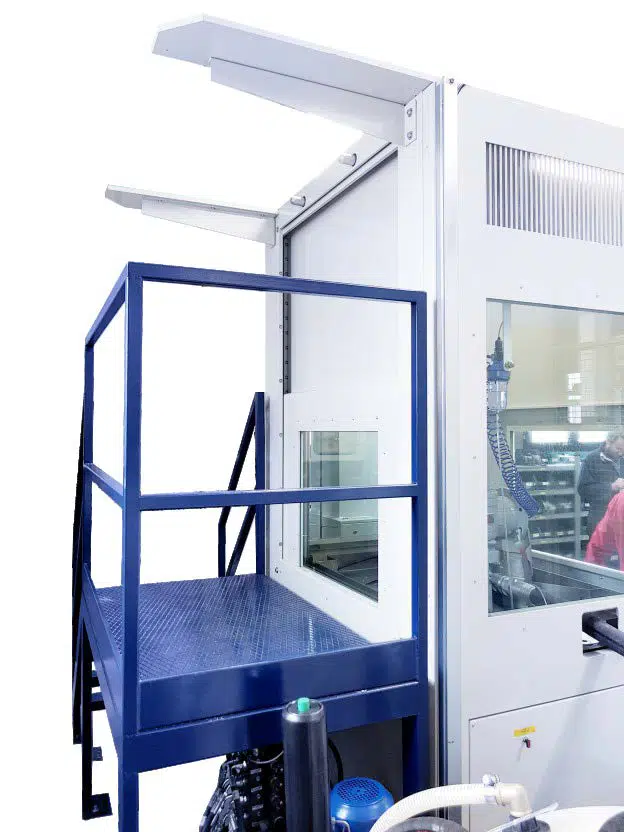

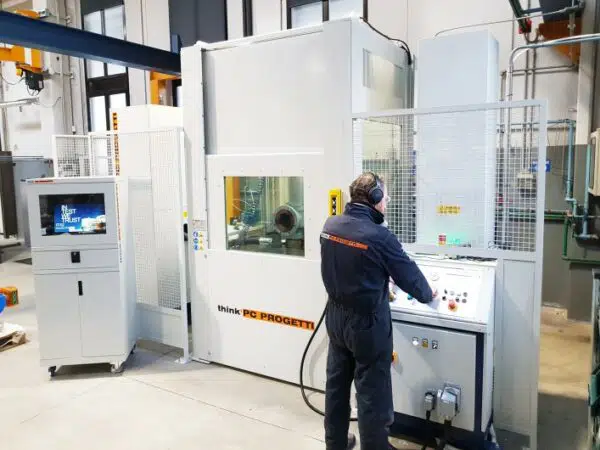

Full Surrounding bullets proof protection fairing (roof included) will ensure best operator safety level.

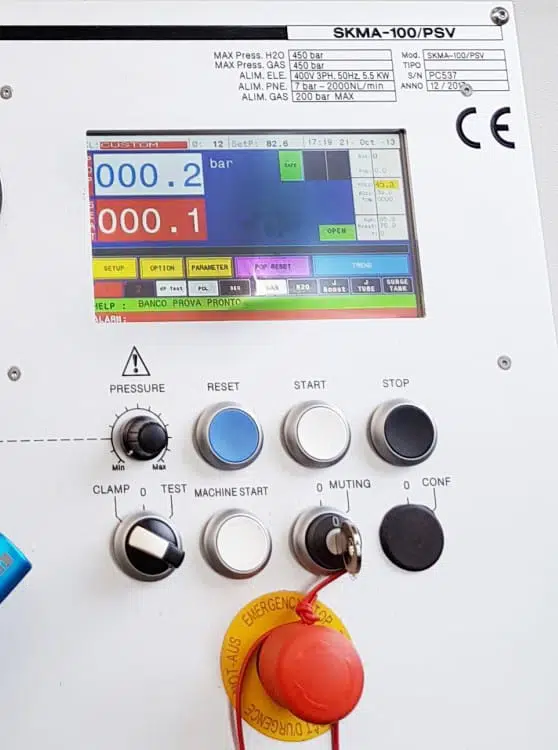

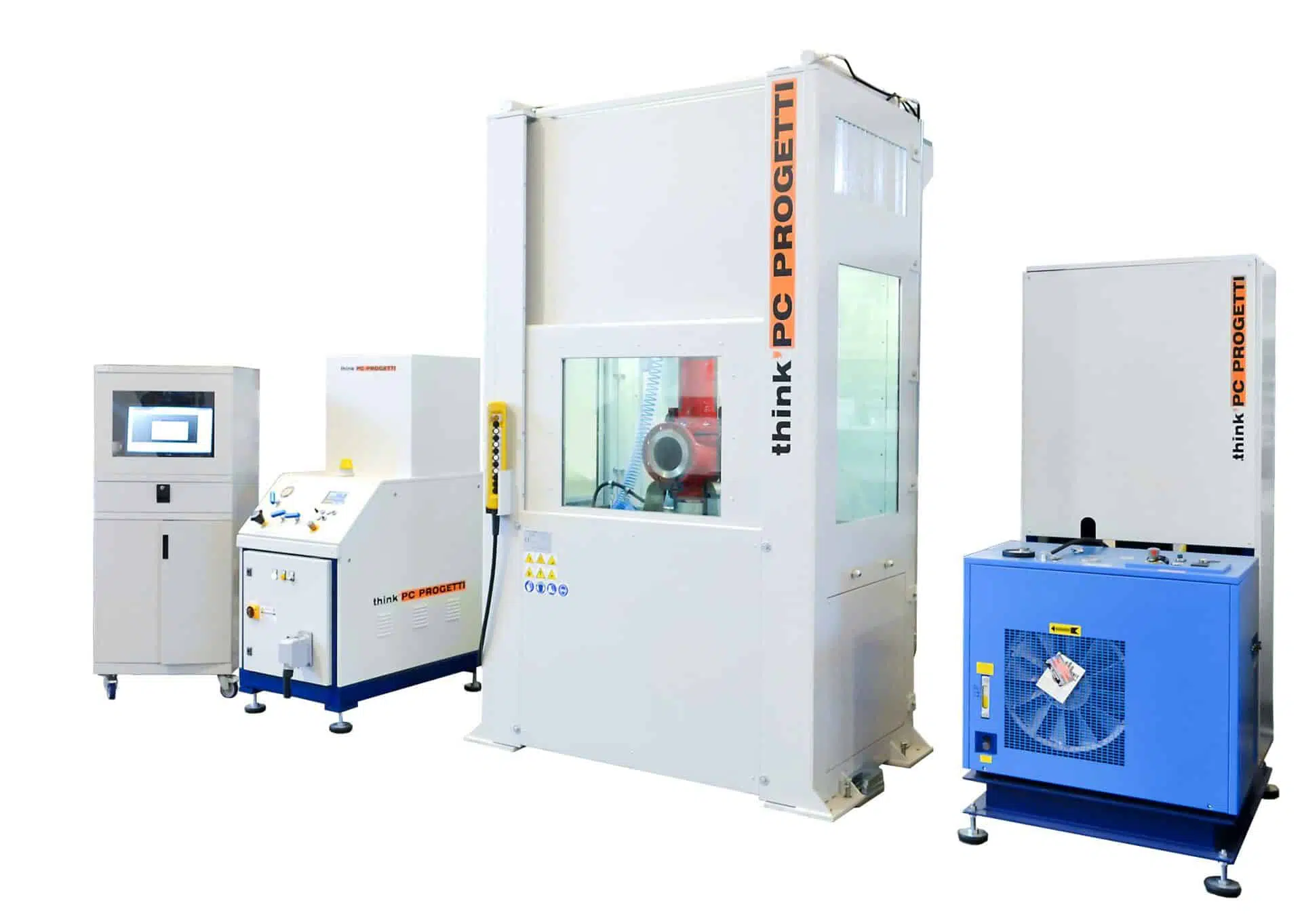

It can be controlled by standard pressurization skid; in the picture you can see mod. SKMM-100-Gas.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force 90 TON (See working limits table)
- Flange max diameter530 / 650 / 860mm
- Flange min diameter150mm
- Seat lift measure contact less0-150 mm ± 0.15%
- Flange thickness max140 mm
- Loading height1200 mm
- Tilting angleFIXED (no tiltable)
- Basement water vessel200 Liters
- Terminations allowedRF, RJ
- Clamp typeType 5 - Hydraulic cylinder w/claws
- Clamping force controlOn/Off type, Range 5..100 %
- Reference standardISO, API, ASME, ASTM
- Dimensions (mech)1465(L) x 2100(D) x 1900(H)
