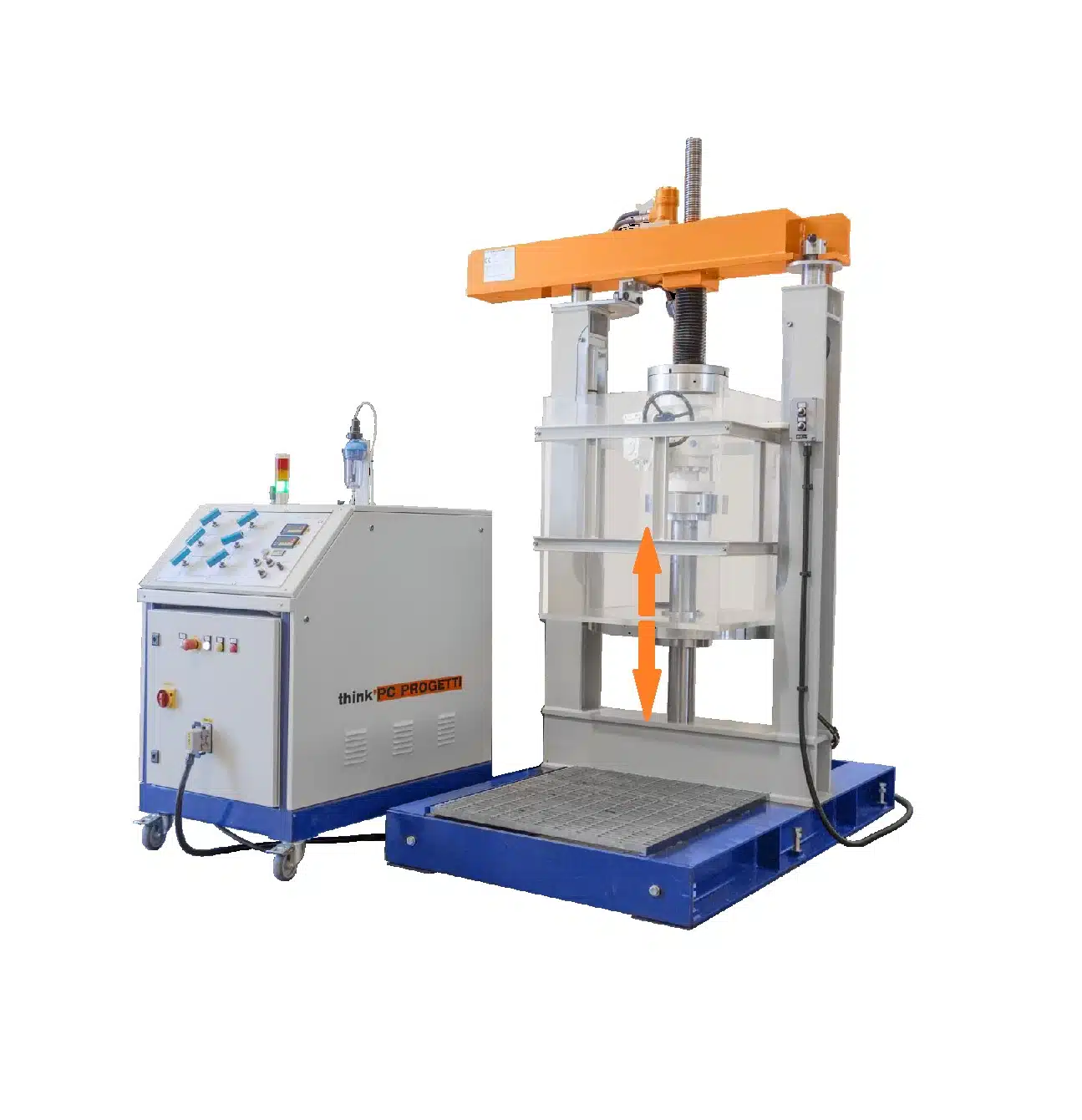

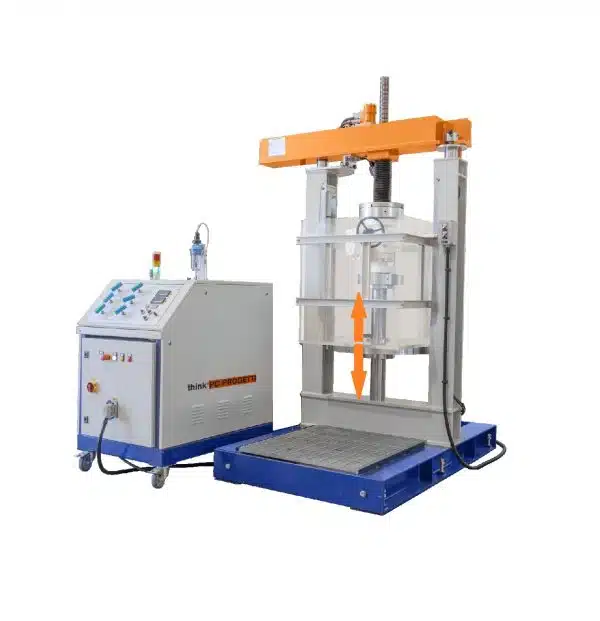

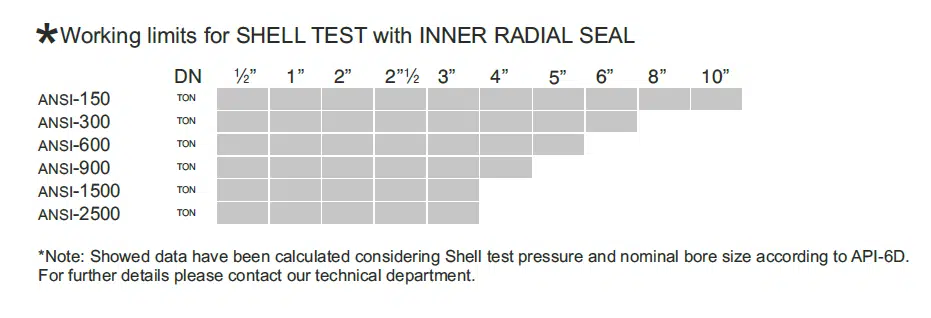

Vertical loading inner radial seals (bore plugs)

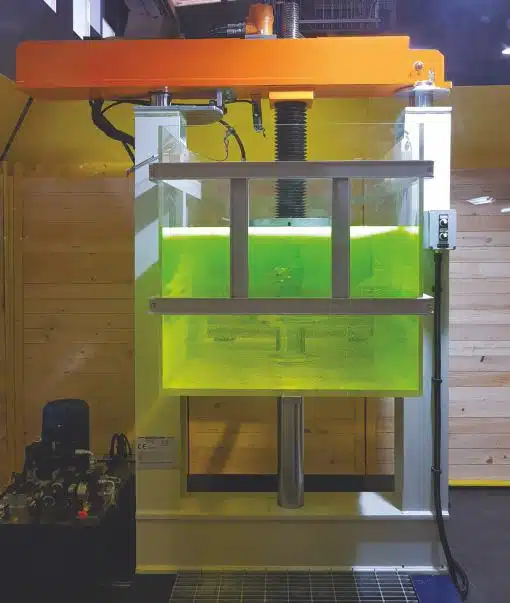

Water immersion air test rig.
It has been designed to discover bubbles leakages in valves casting.

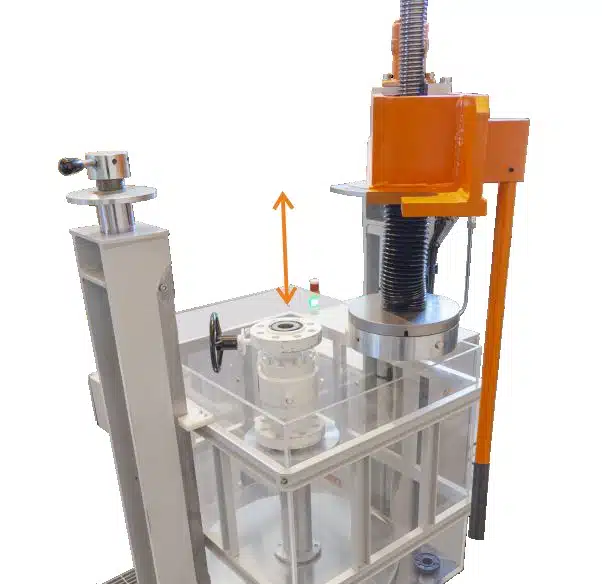

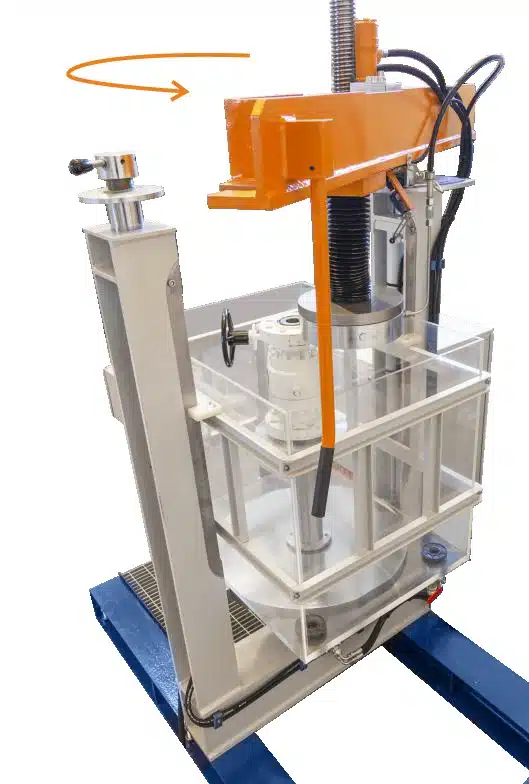

A water vessel is vertically moved in order to save testing time.
A clamping system will let the operator place valves directly on testing position.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force20 TON
  • Valve length max610mm
  • Valve length Min200 mm
  • Clearance between columns800 mm
  • Water immersion vessel690 (L) x 1200 (D) x 790 (H) mm vertical movement
  • Camping styleType 2: Inner radial seal
  • Dimensions (mech)1150 (L) x 1980 (D) x 2480 (H)
