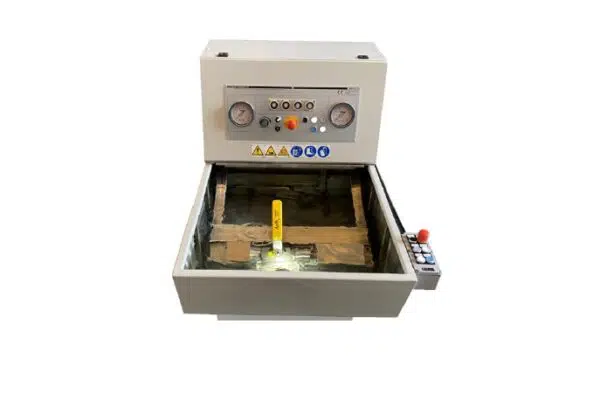

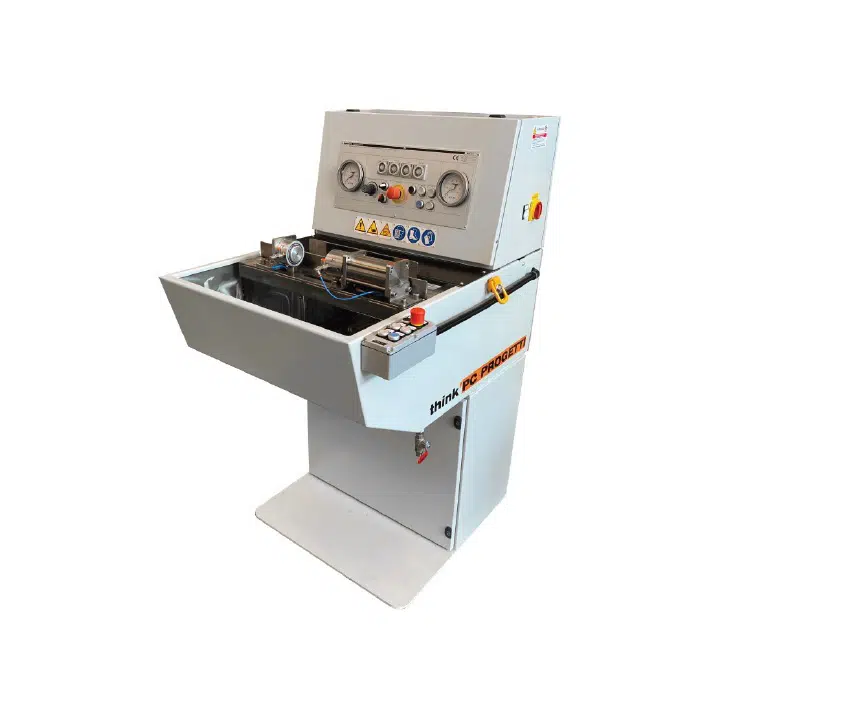

ON/OFF PRESS CLAMPING FIXED WATER VESSEL (Automatic immersion)(bore plugs)

Water immersion test bench.
It has been designed to discover bubble leakages in valves castings & seats.
It is equipped with press clamping (on/off control).
Automatic immersion developed to test cycles.

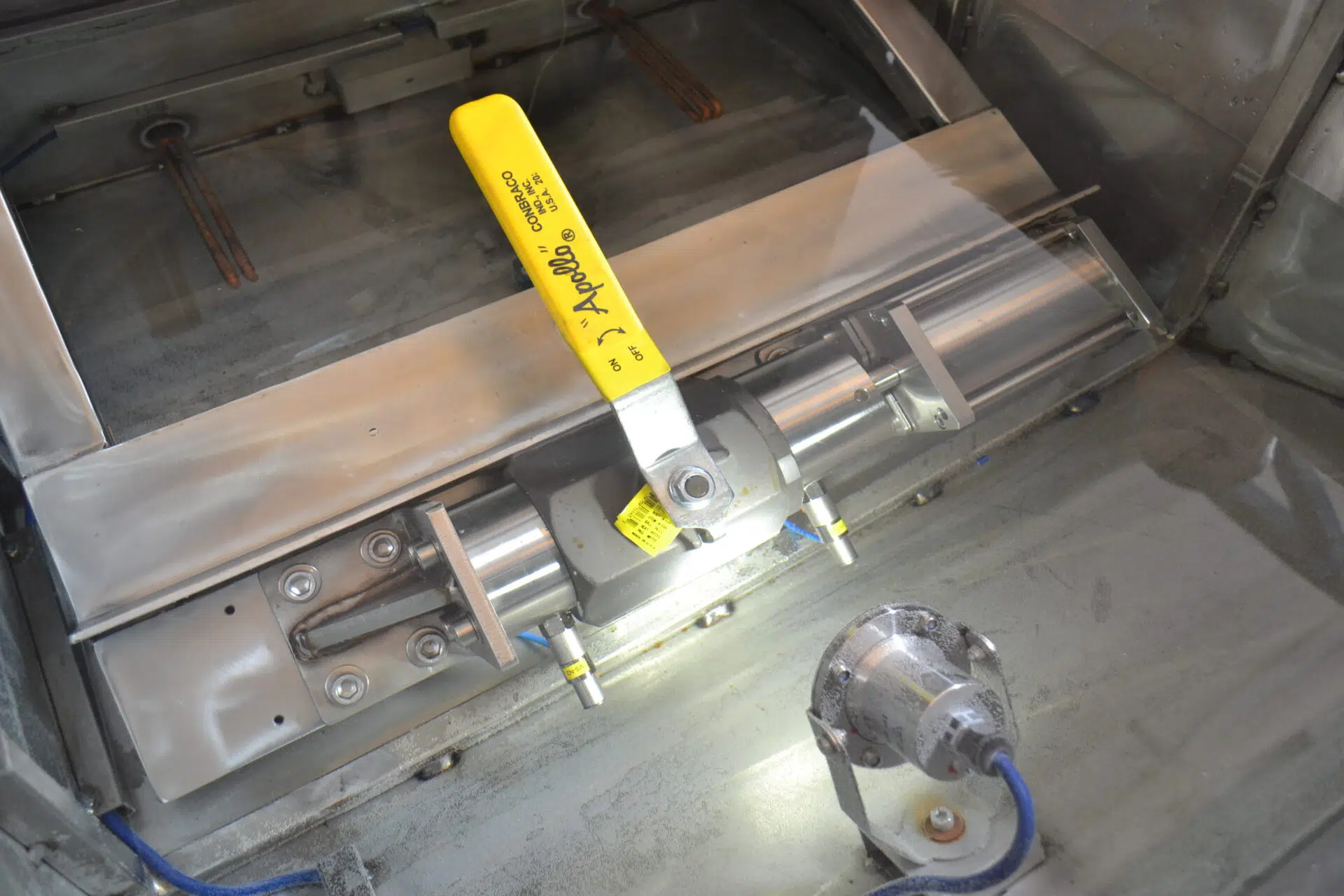

Vessel water temperature is controlled to emphasize bubbles forming, and it’s lit up with a high intensity submerged spotlight.
Please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force1 TON
  • Valve kind to testfloating ball valves sizes - ¼” - ½” – ¾” - 1” – 1” ¼ -1” ½ -2”
  • Water vessel100 Liters
  • Clamping style Type 1 - compression on/off
  • Dimensions (mech) 800 (L) x 1130 (D) x 1600 (H)
