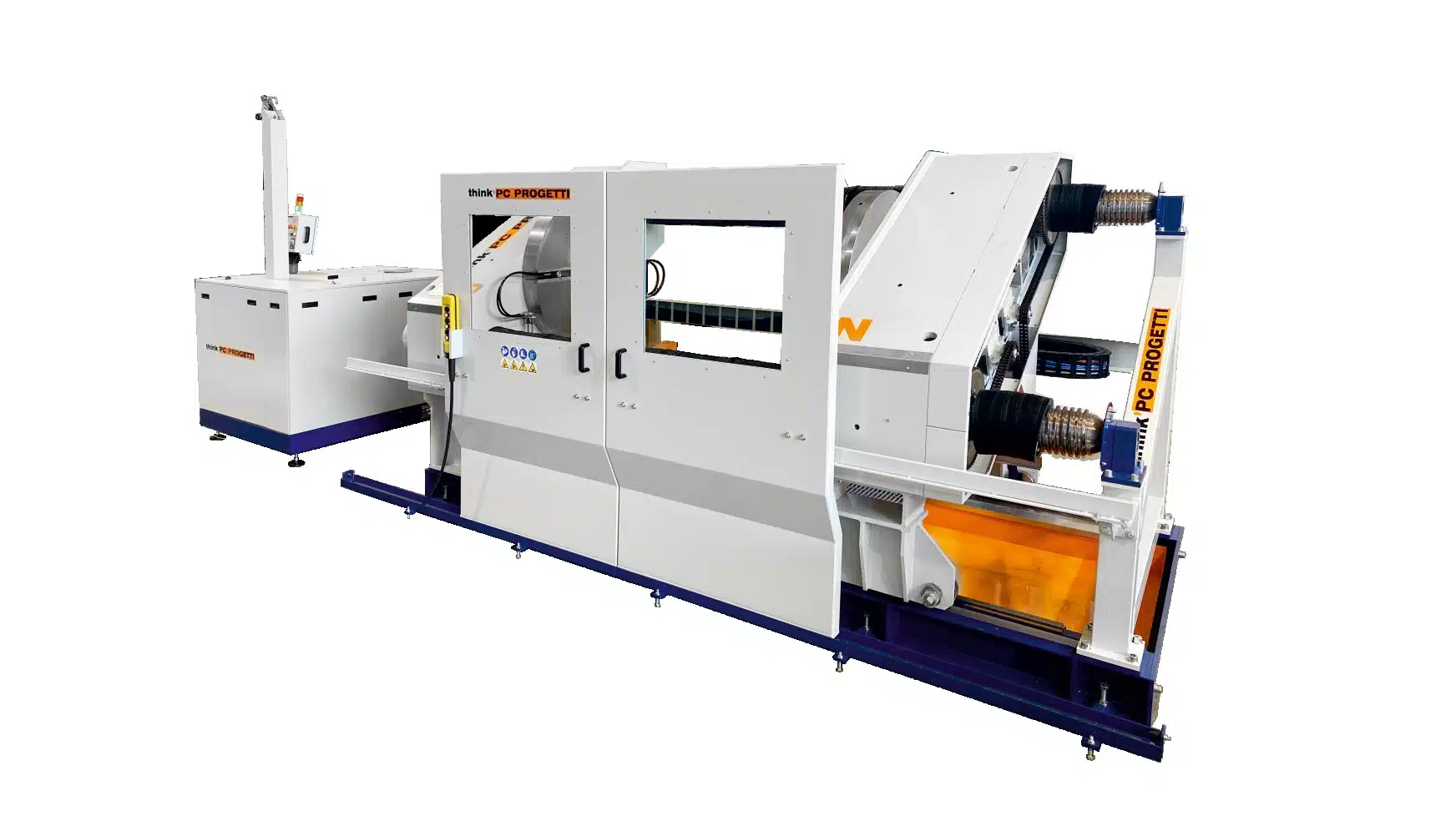

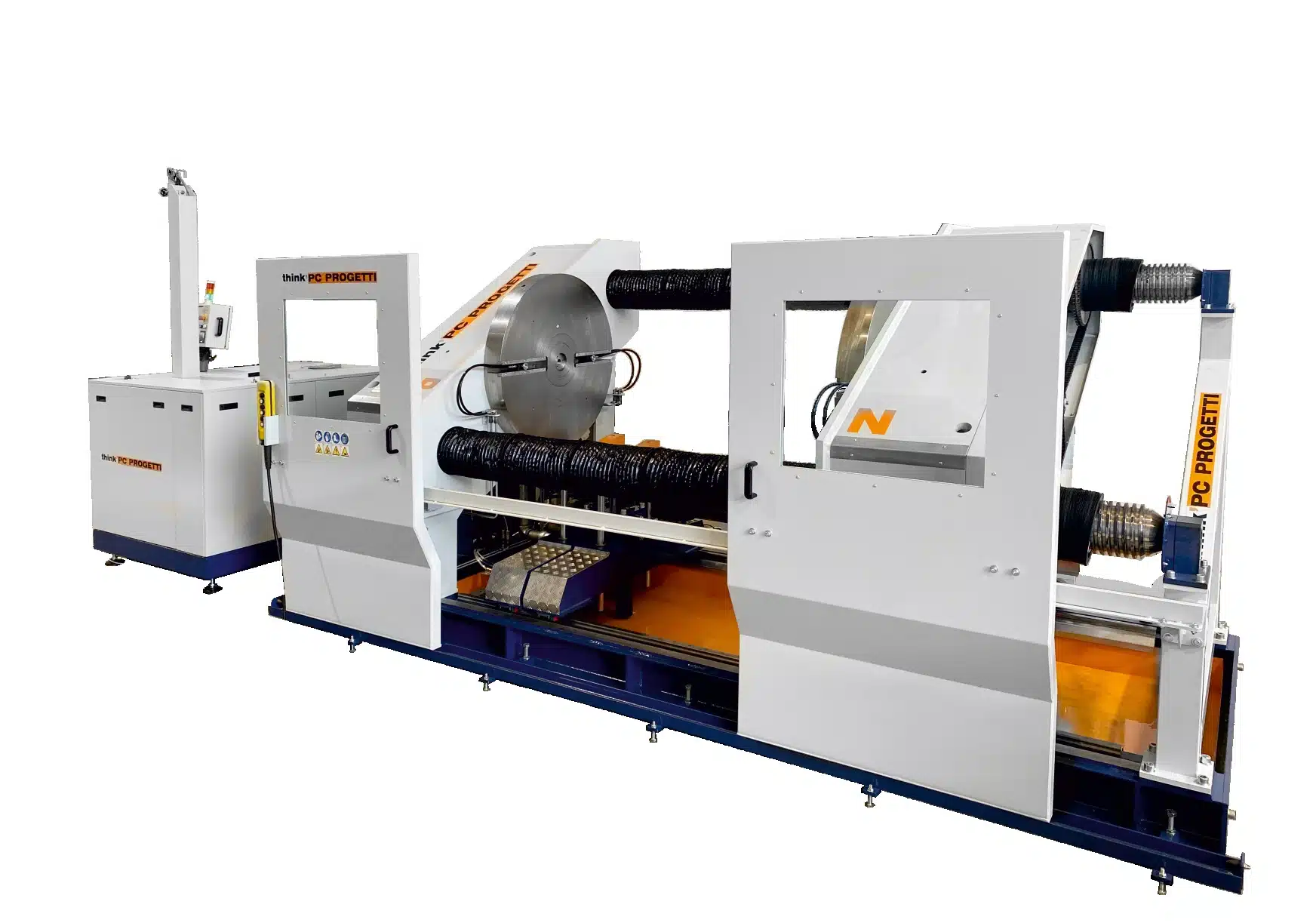

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards.
Besides, the vertical loading height is reduced. In the basement a water vessel is installed as water reservoir for test procedures.
The rig is controlled by SKM or SKA class pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

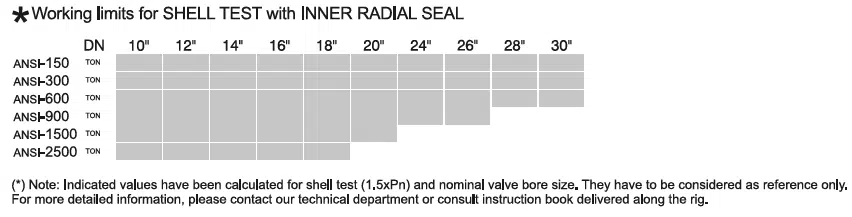

  • Reaction force700 TON
  • Max valve length 1800 mm
  • Min valve length 400 mm
  • Columns inner clearance1450 mm
  • Flow axes height1400 mm
  • Basement water vessel 700 Liters
  • Lifters2x10 TON
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 2 - Bore plugs
  • Dimensions (mech)4570(L) x 2150(P) x 2110(H)
