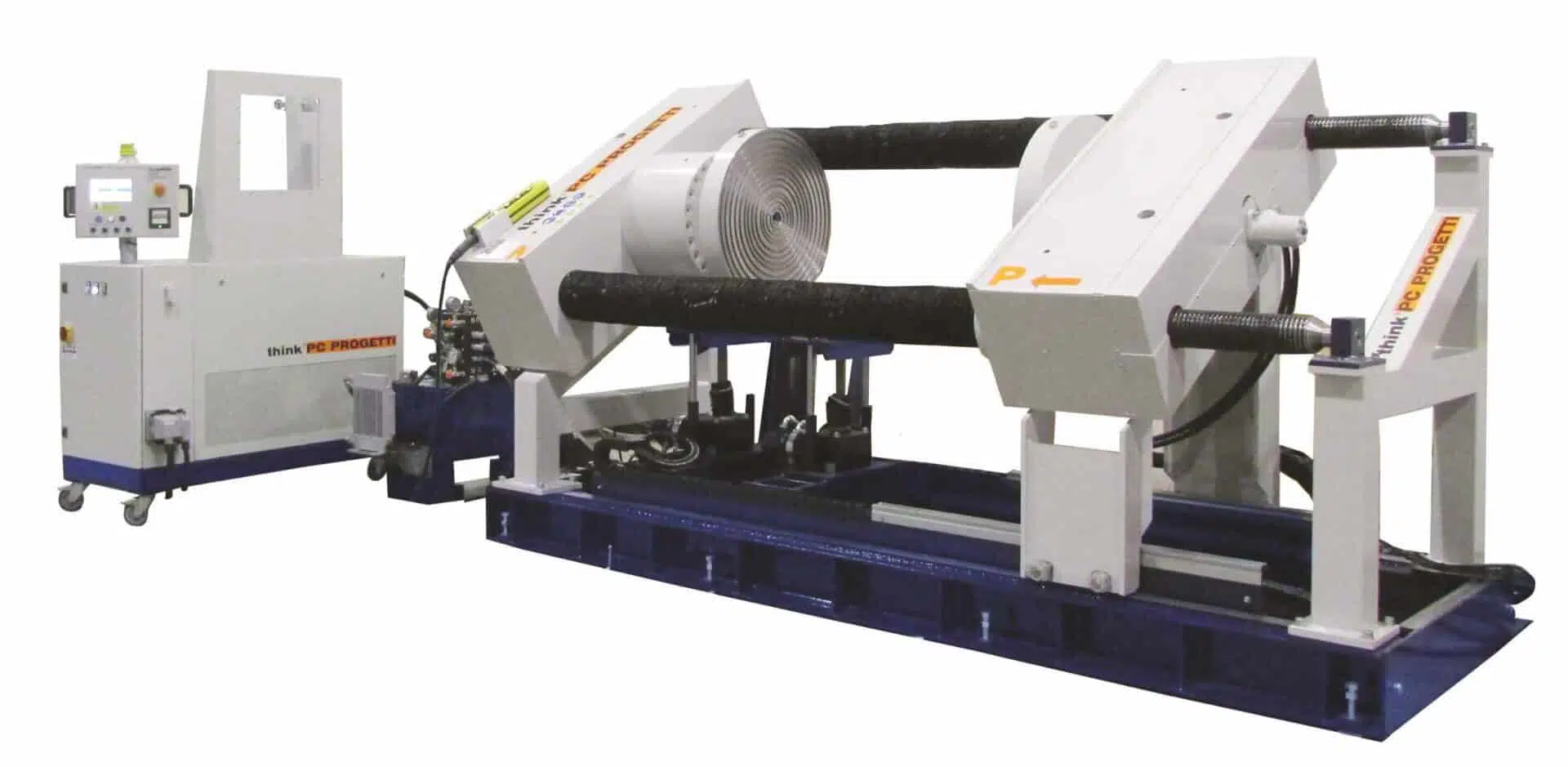

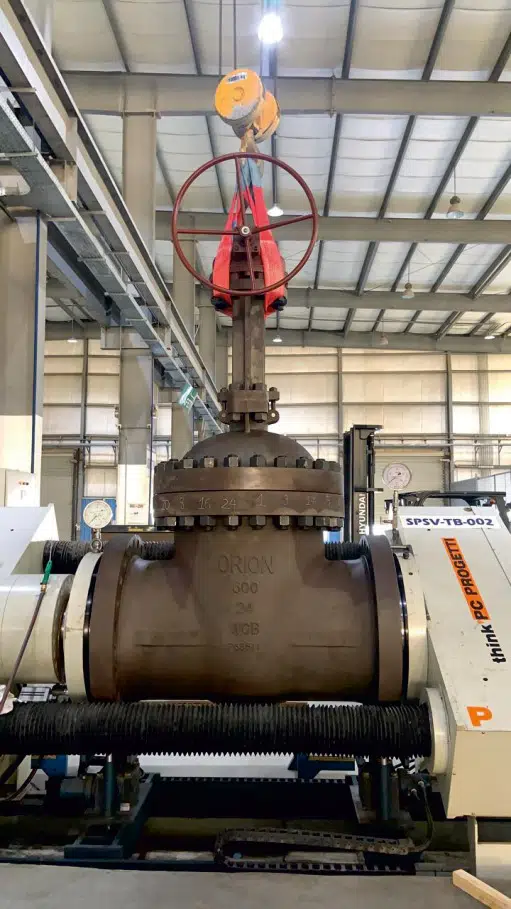

Horizontal test rig with combined clamping style: inner radial seal + press clamping facilities.
The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve body and an hydraulic cylinder makes pressing clamping with or without proportional control. This prerogative makes it conform to the most diffuse international test standards. In the basement, a water tank is installed as water reservoir for test procedures. Complete flow meters set could be installed (see option) to perform seat leakage test on control valves.
The rig is controlled by SKA-100 pressurization skid; to have more information about please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

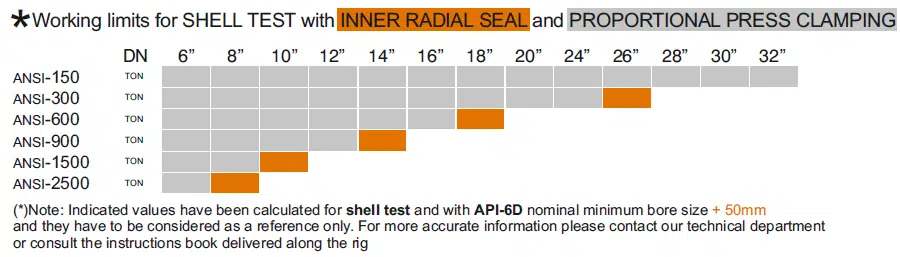

  • Reaction force250 TON (10% minimum press clamping) (See working limits table)
  • Columns disposal30°
  • Valve lenght max1600mm
  • Valve lenght min0 mm
  • Columns inner clearance1150mm
  • Flow axes height950mm
  • Basement water vessel400 Litres
  • Lifter2x5 TON
  • Valve kindBW, SW, RF, RJ
  • Clamping styleInner radial & Pressing - Combined
  • Dimensions (mech)3375(L) x 1625(P) x 1627(H)
