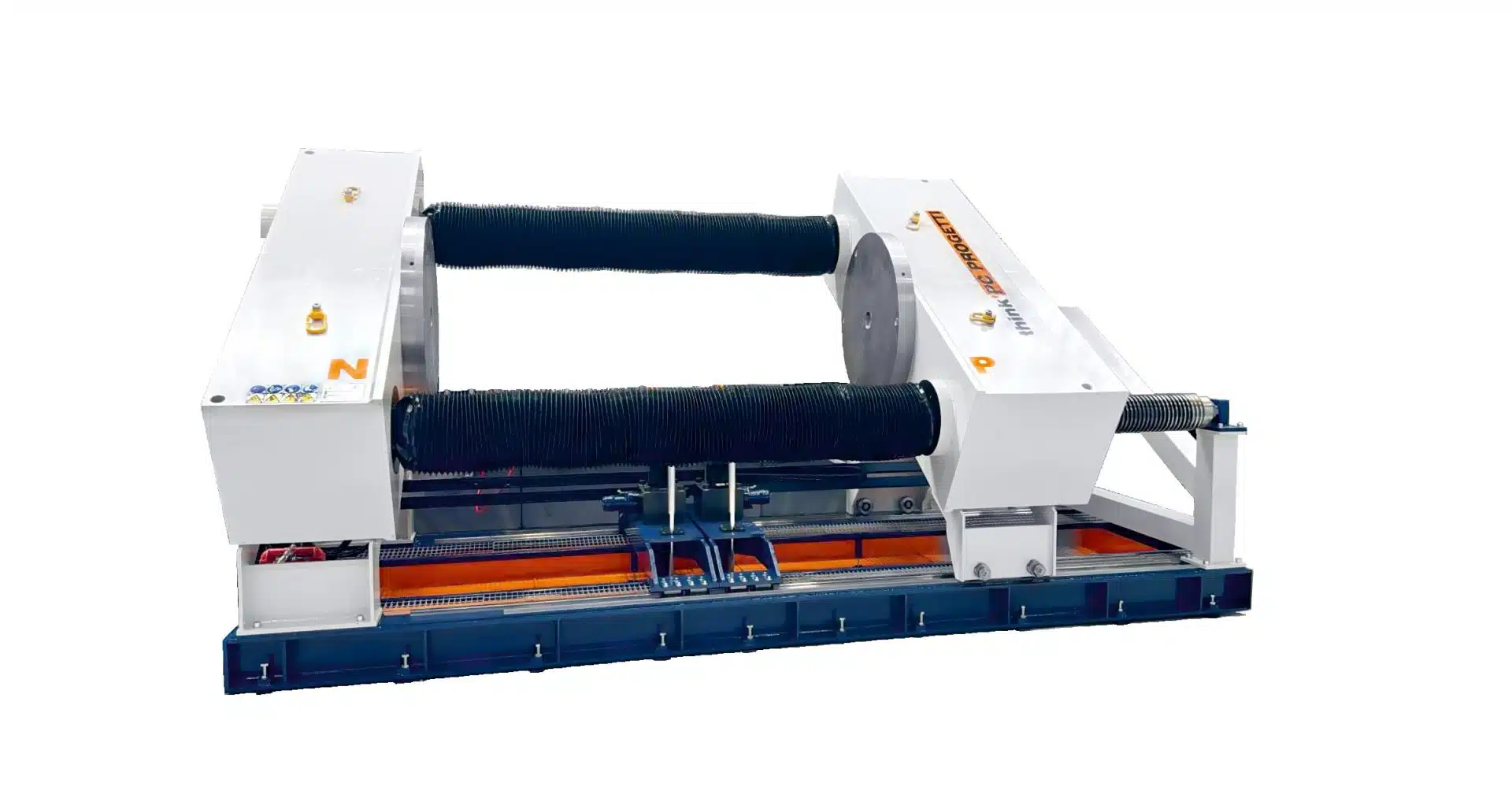

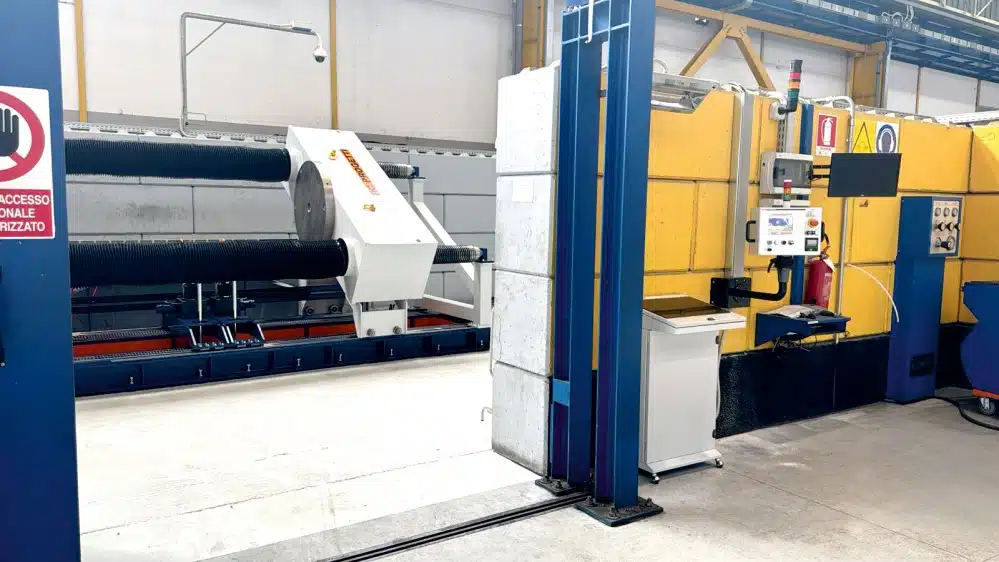

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. The 30° columns disposal allows vertical loading of valves to be tested with a crane or with a horizontal loading fork lifter. Besides, the vertical loading height is reduced. In the basement a water vessel is installed as water reservoir for test procedures. The rig is controlled by a SKM or SKA class pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force1000 TON
  • Max valve length 2500 mm
  • Min valve length 500 mm
  • Columns inner clearance1700 mm
  • Flow axes height1500 mm
  • Lifters 2x20 TON
  • Basement water vessel 1500 Liters
  • Terminations allowed BW, SW, RF, RJ
  • Clamping style Type 2 - Bore plugs
  • Dimensions (mech)5730 (L) x 2560(P) x 2490 (H)
