DOUBLE SCREWED COLUMNS + CYLINDER
COMBINED CLAMPING INNER RADIAL SEAL +
PROPORTIONAL PRESS CONTROL

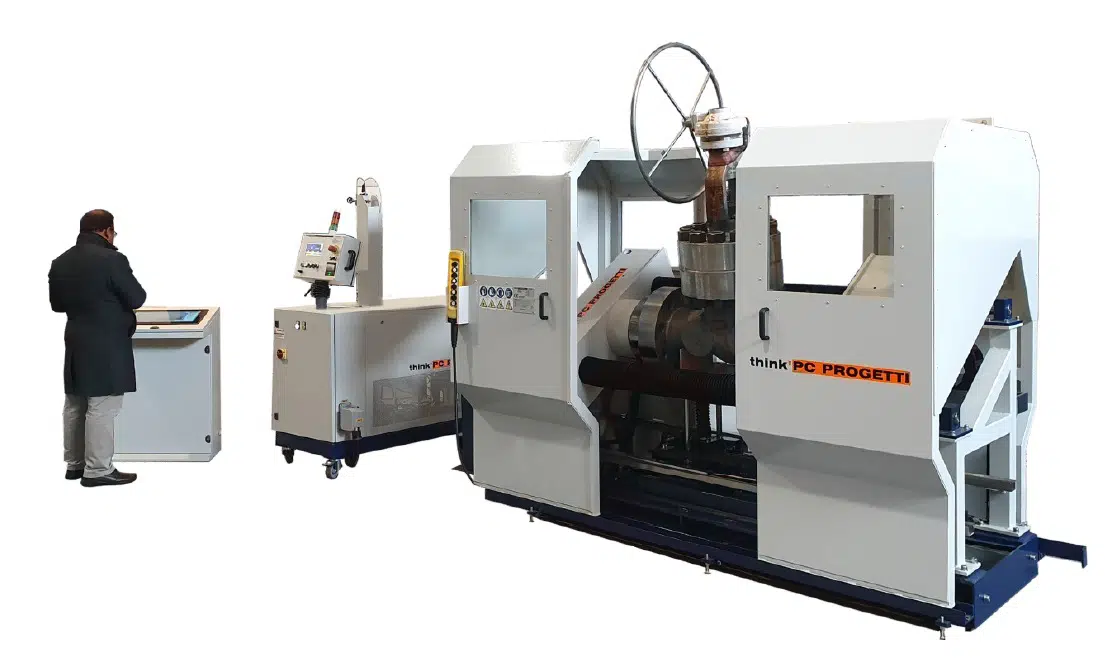

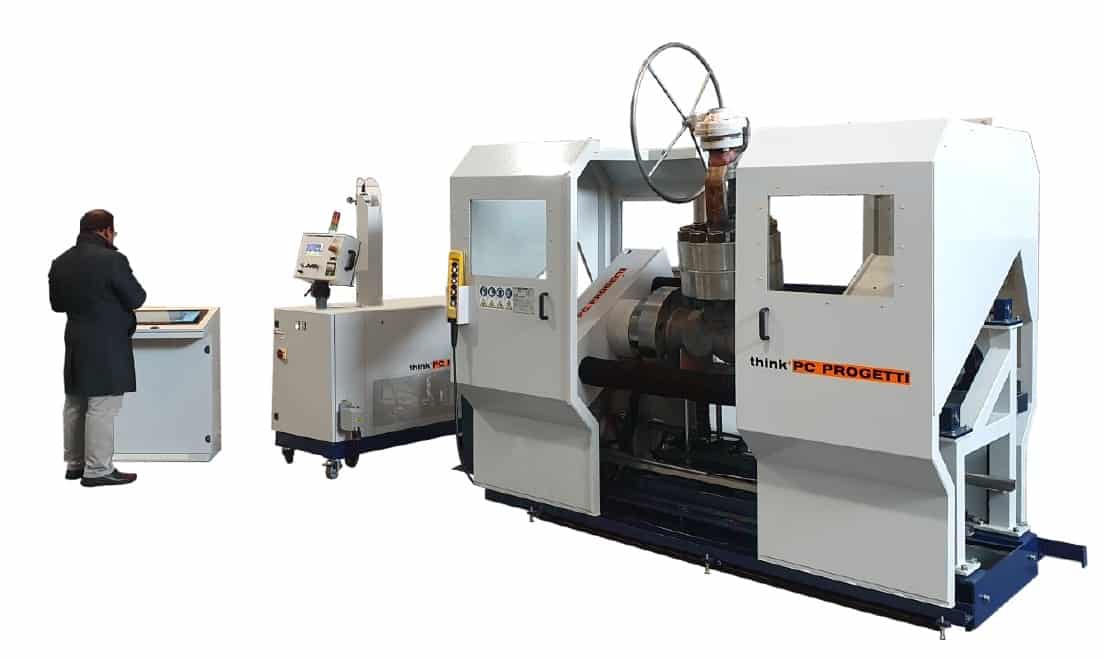

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities.
The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body and a hydraulic cylinder makes proportional press clamping with or without proportional control.
This prerogative makes it compliant to the most widespread international test standards. In the basament a water vessel is installed as a water reservoir for test procedures.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force150 TON
- Max valve length 1000 mm
- Min valve length 0 mm
- Columns clearance700 mm
- Flow axes height950 mm
- Basement water vessel150 Liters
- Terminations allowedBW, SW, RF, RJ
- Clamping styleType 3 - Combined
- Dimensions (mech)3055 (L) x 1425 (P) x 2040 (H)
