FULL PROTECTION SHIELD DOUBLE SIDE ACCESS
INNER RADIAL SEAL (BORE PLUGS) OR COMBINED

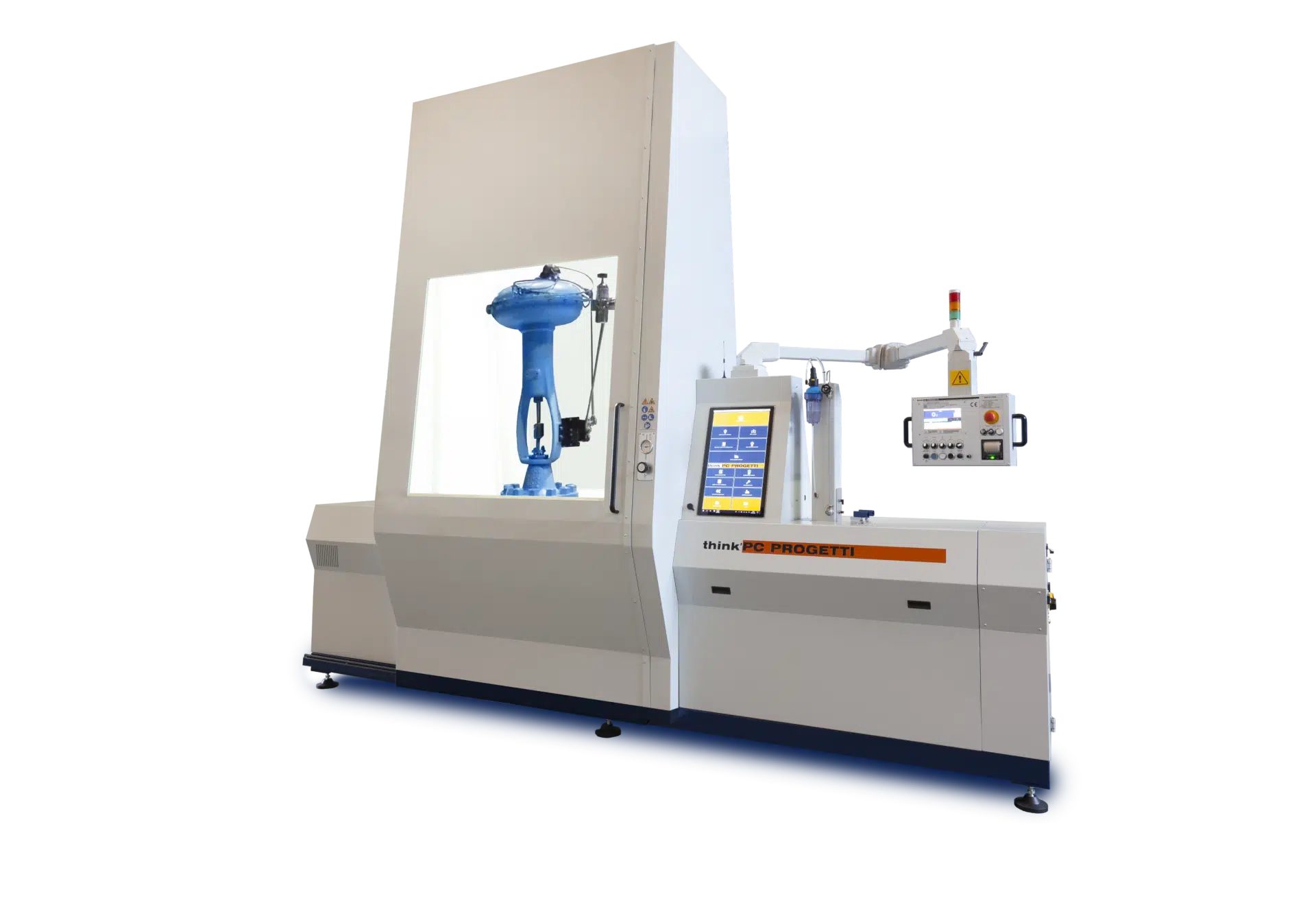

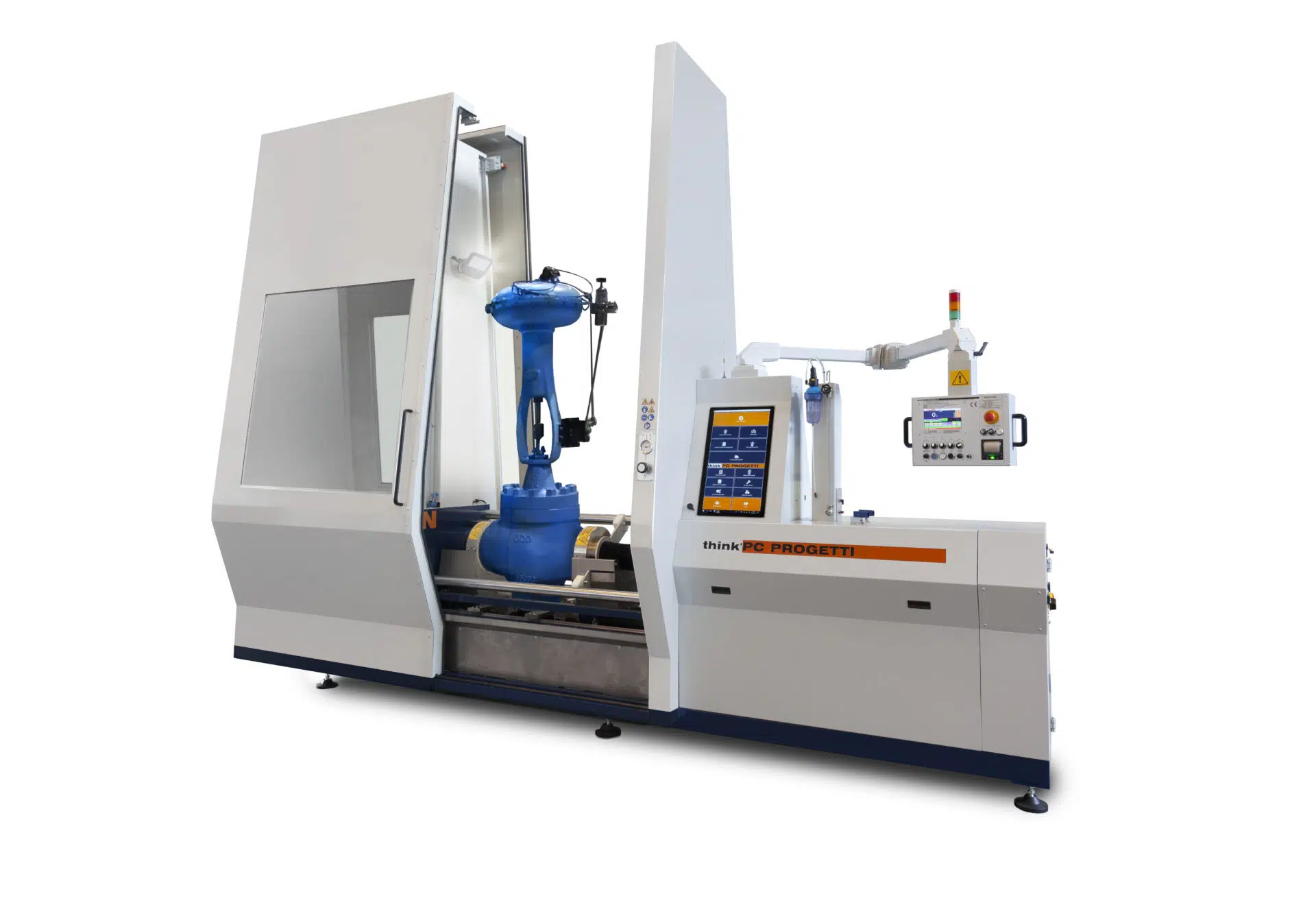

Control valves test bench, that belongs to BO30-2CV/SH rigs family. An armored full surrounding certified bullet-proof faring protection, allows to test valves having 2500 mm maximum height from flow axes.
It is available up to 100 TON reaction power.

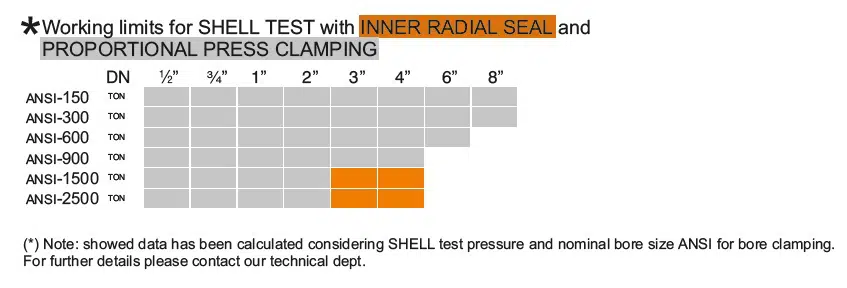

Combined clamping is available: Bore plugs or proportional pressing.
It is equipped with a full asset of digital flowmeters for Air/Water leak flow measure, and positioner commands panel to control and test valve actuators, including movements hysteresis and performances. The door opening is conditioned by visual inspection rules (automatic pressure is reduced before inspection) and normal pressure discharge procedures. In the basement, a water tank is installed as a water reservoir for test procedures. The test process is controlled by an electronic PLC and LCD touch screen, along with a cer tification software TestREC, which is fully interconnected to the company LAN network. Full LAN configuration and data collection is granted. Double control AUTO / MAN software is foreseen to give maximum flexibility to operators.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force40 TON
- Max valve length 1000 mm
- Min valve length 200 mm
- Flow axes height2500 mm
- Basement water vessel150 Liters
- Terminations allowedBW, SW, RF, RTJ
- Clamping styleType 3 - Combined
- Max pressure 250 bar (water) - 7 bar (air)
- Pneumatic supply 7 bar @ 2000 Nl/min
- Electric supply3PH + N + T 380V@50Hz, 5.5Kw
- Dimensions (mech)3055 (L) x 1425 (P) x 2040 (H)
