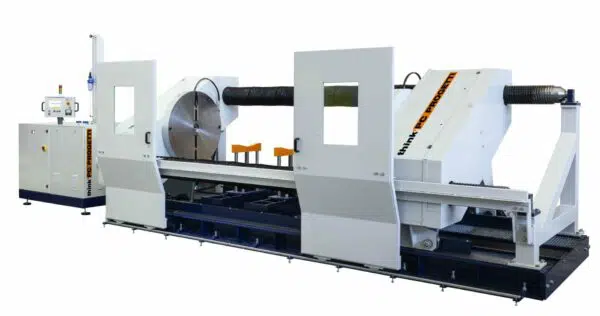

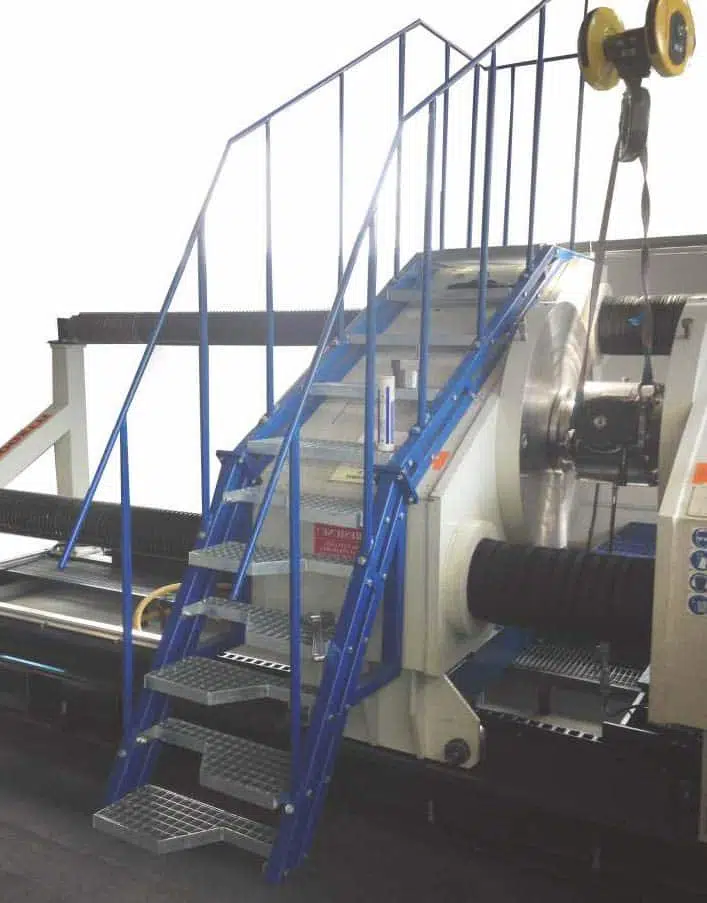

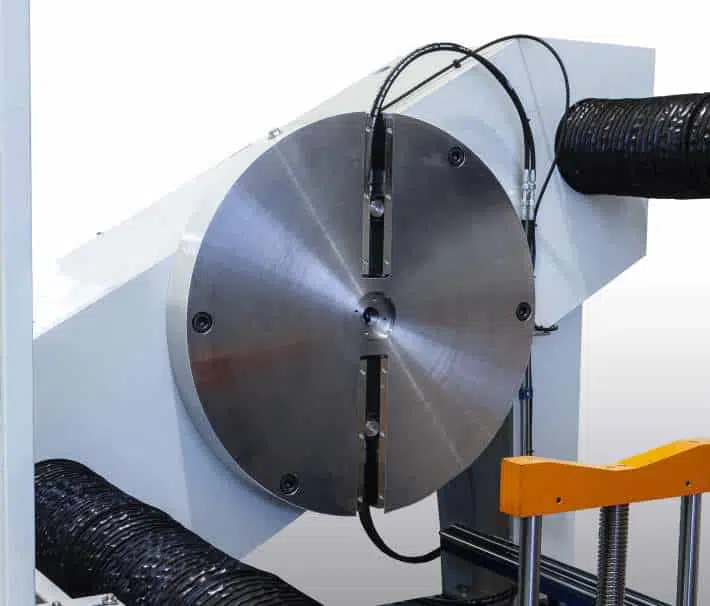

Horizontal test rig with combined clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by SKA-100 class pressurization skid; to have more information about it please consult our dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

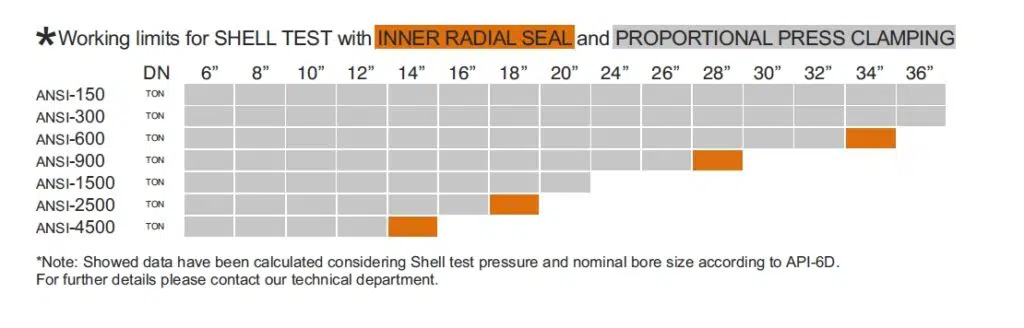

- Reaction force850 TON (See working limits table)
- Valve lenght max2200 mm
- Valve lenght min400 mm
- Columns inner clearance1580 mm
- Flow axes height1230 mm

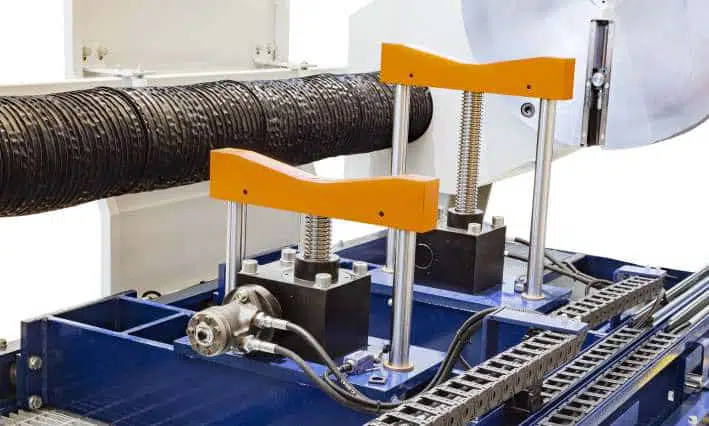

- Lifters2x10 TON
- Basement water tank1600 Liters
- Terminations allowedBW, SW, RF, RJ
- Clamping styleType 3 – Combined
- Dimensions (mech)5140 (L) x 1974 (P) x 1984 (H)
