Inner radial seal (bore plugs) 3 loading trays

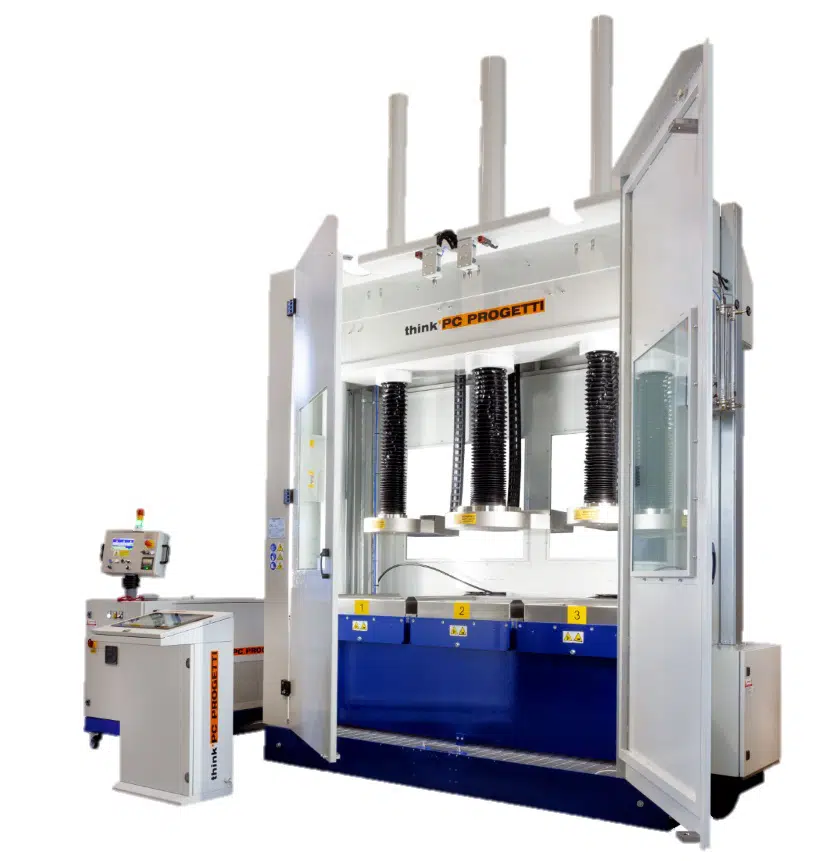

Vertical test rig with inner radial seal clamping style.
3 test places available for contemporary pressure tests.
The screwed columns assure complete absence of external forces on valves body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by a SKMM-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

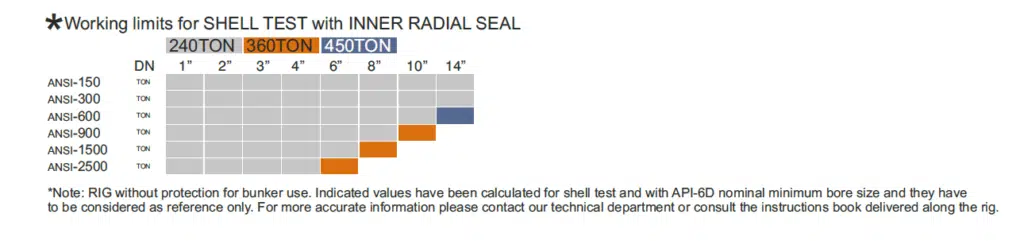

  • Reaction force (total)3x150 TON (See working limits table)
  • Valve length max1200 mm
  • Valve length min150 mm
  • Center to center distance700 mm
  • Loading height925 mm
  • Basement water vessel400 Liters
  • Loading tray3 indipendent
  • Loading tray length400 mm
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 2 – Inner radial
  • Dimensions (mech)2525(L) x 1200(D) x 2750(H)
