Mobile bridge proportional press clamping

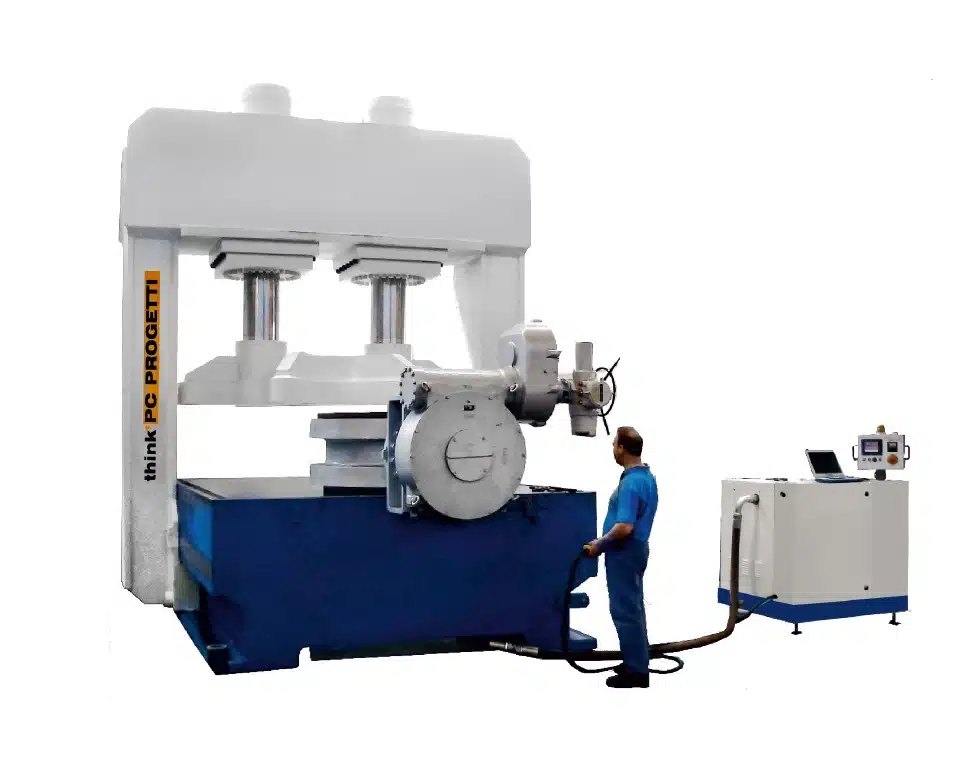

Vertical test rig with controlled pressing clamp; the press force is according controlled automatically to the water pressure inside the valve, and the result load is reduced to minimal therms. Mobile upper side bridge allows vertical loading of the valve and the possibility to have double working stand; while the first is working, the second could be prepared for the next piece. In the basement there is a water tank and an external water tank could be added as option. The use of an open castle as upper side reaction structure, allows the user to make a visual inspection of valve seat during the test. The rig is controlled by SKA-500 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

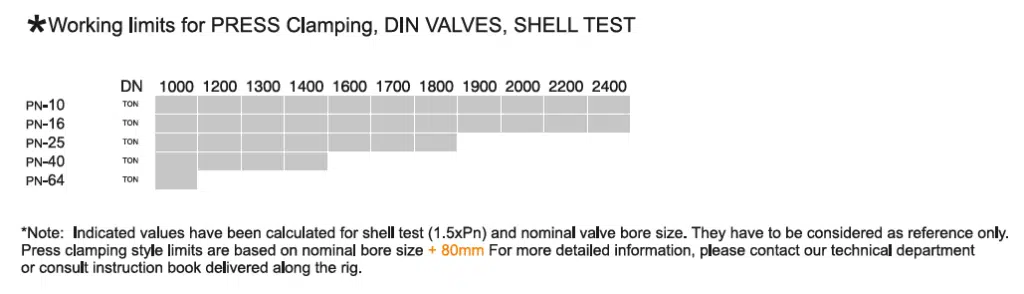

  • Reaction force1200TON (See working limits table)
  • Working stands1 (two on request)
  • Max valve length 1265 mm
  • Min valve length265 mm
  • Columns inner distance 2900 mm
  • Flow axes height 1200 mm
  • Bridge run2200 mm
  • Basement water tank 350 Liters ca.
  • Terminations allowedRF, RJ
  • Clamping style Type 1 - proportional compression (flange surface)
  • Dimensions3900(L) x 3700(P) x 4920(H)
