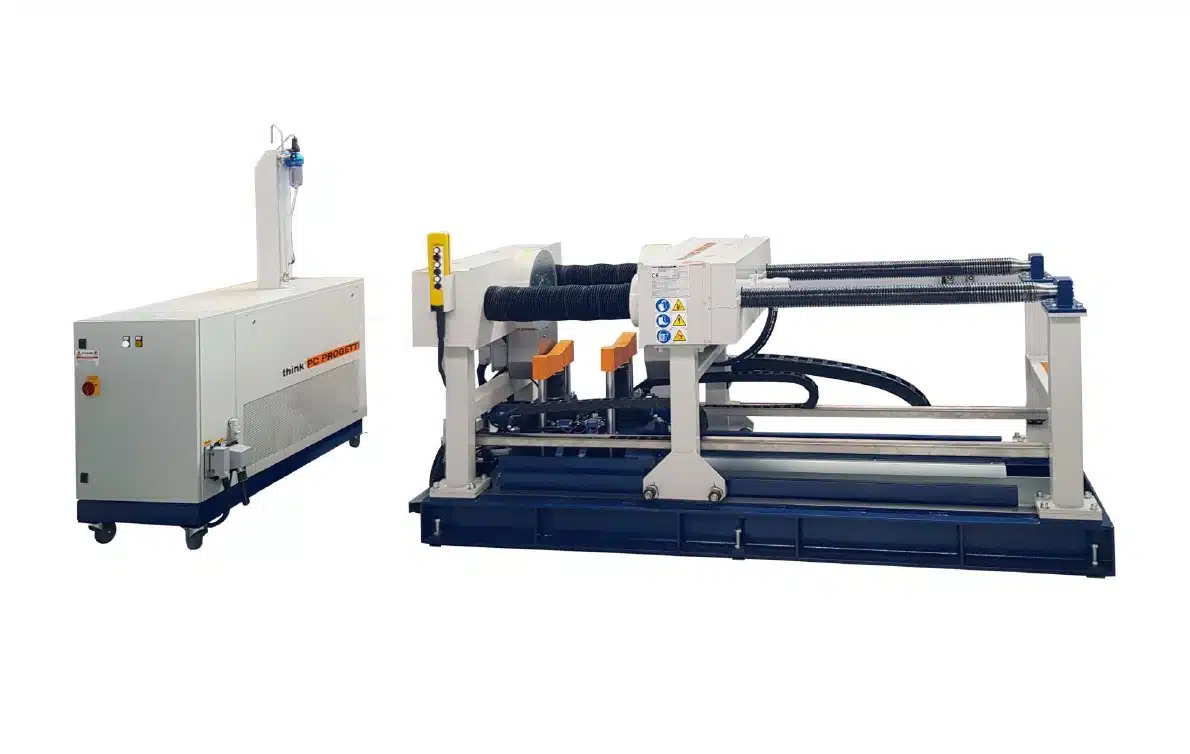

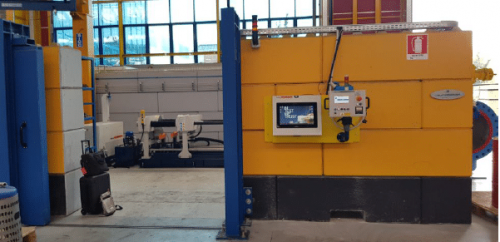

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative
makes it compliant to the most widespread international test standards. A water vessel is installed in the basement as water reservoir for test procedures. The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories,please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force100 TON (See working limits table)
  • Max valve length 1000 mm
  • Min valve length 50 mm
  • Columns inner clearance700 mm
  • Flow axes height950 mm
  • Basement water vessel150 Litres
  • Terminations allowedRF, RJ, BW, SW
  • Clamping styleType 2 – Inner radial seal (Bore plugs)
  • Dimensions2660(L) x 1100(P) x 1190(H)
