Mobile bridge
Proportional press clamping

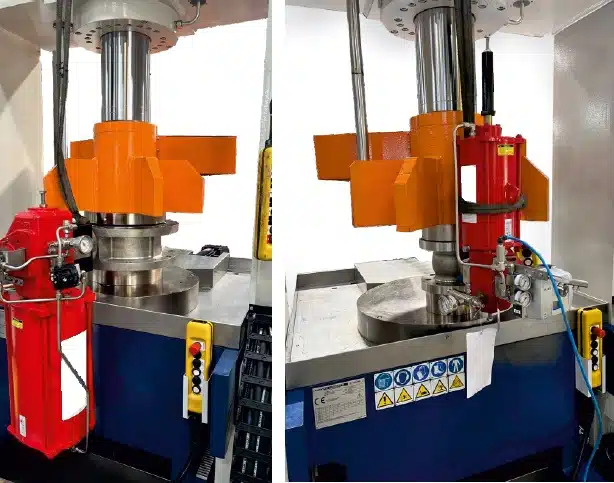

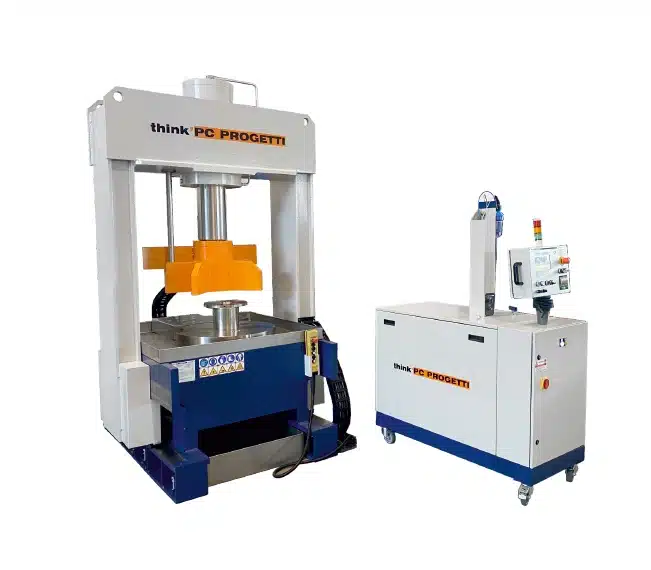

Vertical test rig with controlled pressing clamp; press force is automatically controled according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water tank could be added as option. The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force250 TON
  • Max valve length 500 mm
  • Min valve length40 mm
  • Columns inner clearance1200 mm
  • Loading height900 mm
  • Bridge run900 mm
  • Basement water vessel200 Liters
  • Terminations allowedRF, RJ
  • Clamping styleType 1 - Proportional Press Clamping
  • Dimensions (mech)1700 (L) x 1550 (P) x 2690 (H)
