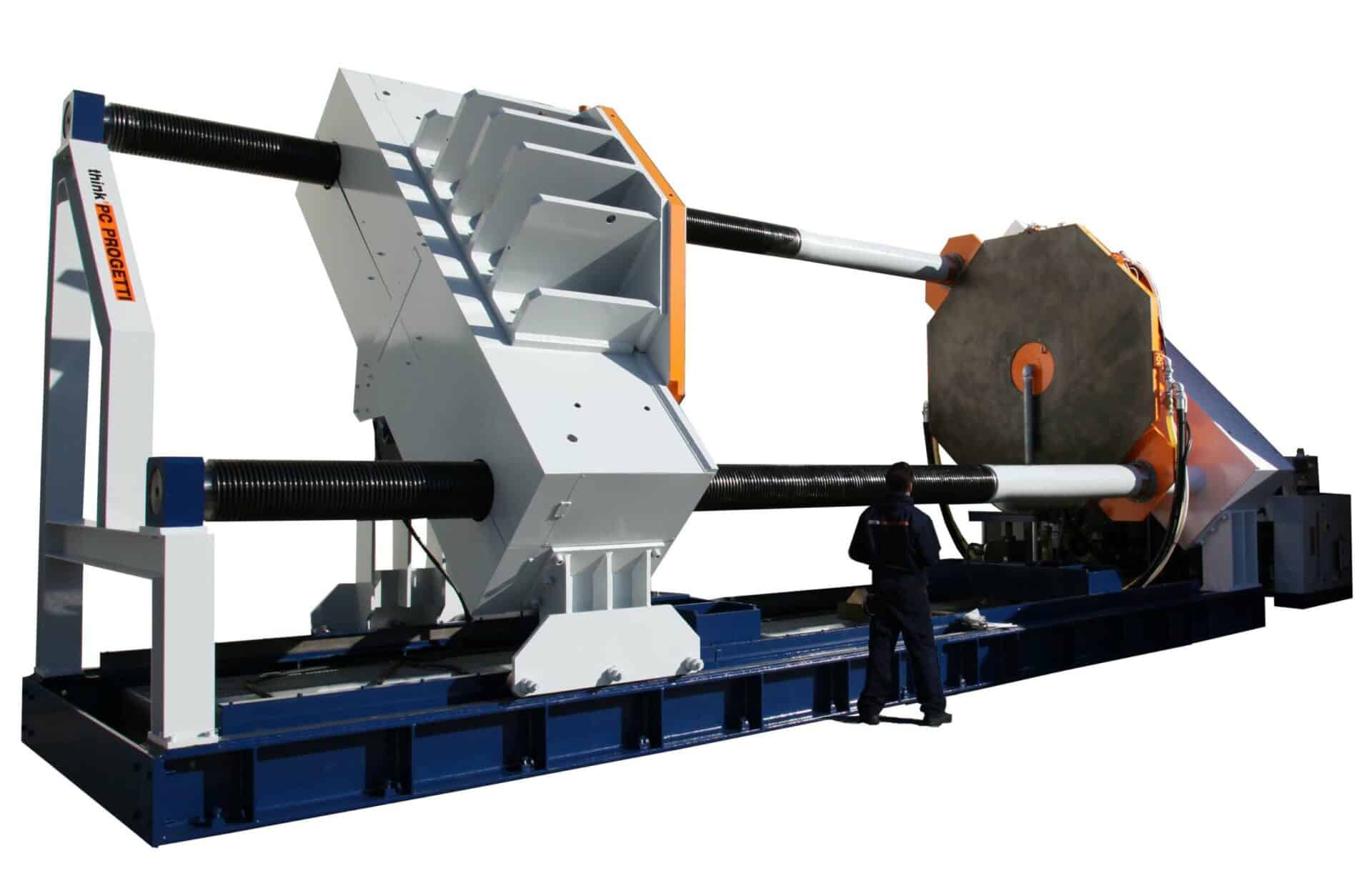

Test rig for valves with combined clamping style.
Both pressing & bore plugs sealing styles are available.
The reaction bridge is moved by a hydraulic command.
Valve loading is made vertically with an overhead travelling crane and final positioning is made by two lifters.
In the basement there is a water vessel protected by a step resistant grid.
Clamping is controlled through a pressurization skid with proportional clamping to ensure minimum mechanical effort on valve casting.
The rig is controlled by a SKA-2000 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force3000 TON (10% minimum press clamping) (See working limits table)
  • Valve length max6400mm
  • Valve length min1750mm
  • Columns inner clearance2900mm
  • Flow axes height2800mm
  • Basement water vessel5000 Liters
  • Lifters2x30 TON
  • Clamping styleType 3: Combined
  • Dimensions (mech)11500(L) x 4500(P) x 5500(H)
