Claws clamping + portable clamping device

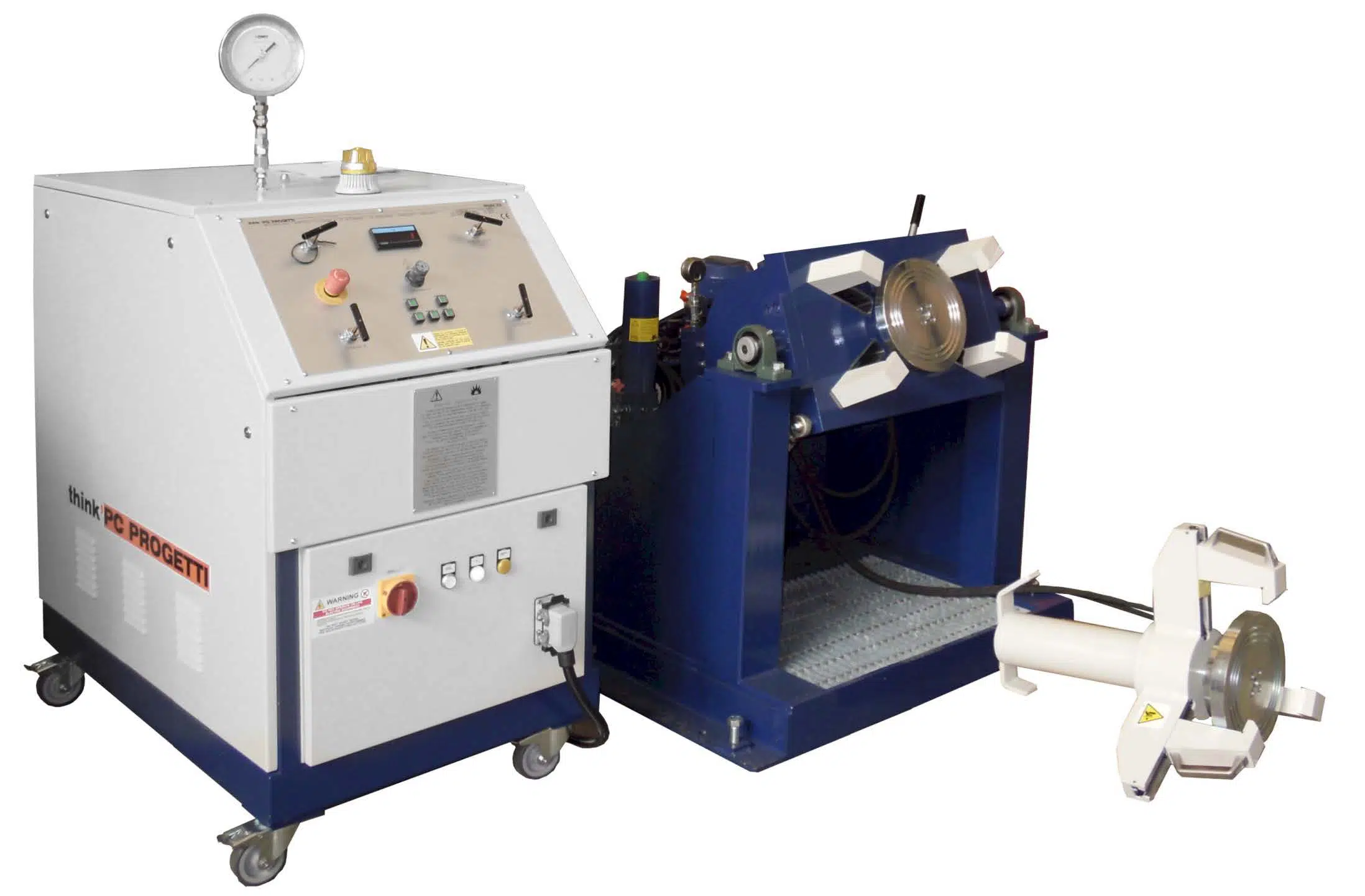

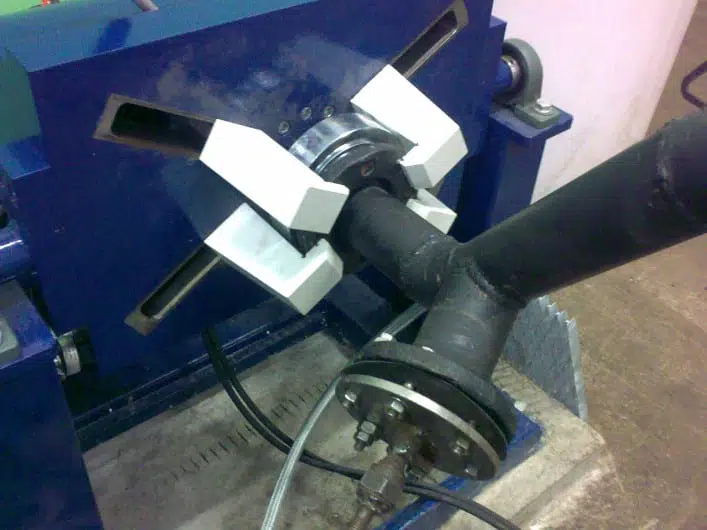

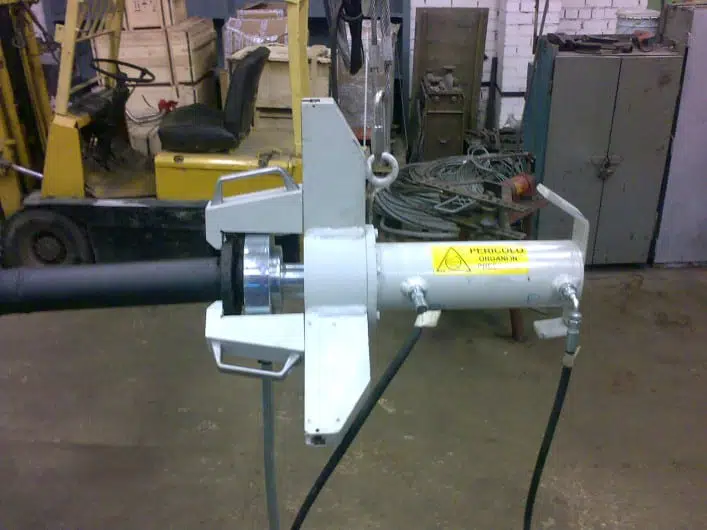

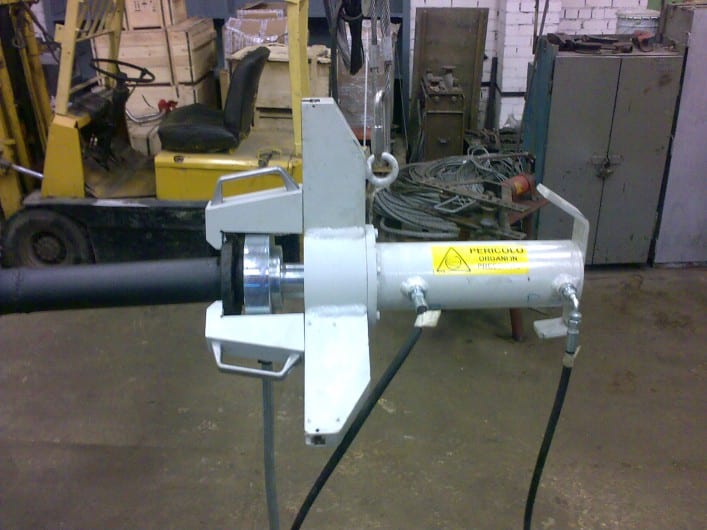

Tiltable Single/Double claws clamping with floor fixed claws clamping unit, and an optional portable clamping unit.
Claws clamping can be performed only on flanged valves.
It allows the testing of mechanical stress on flange neck during test performing.
Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied.
Even VISUAL test on valve seat during test is facilitated.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

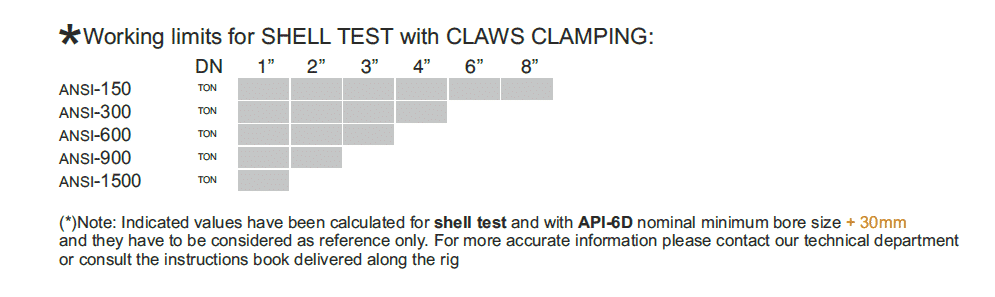

  • Reaction force15 TON
  • Max flange Ø400 mm
  • Min flange Ø90 mm
  • Flange thickness max10 - 65mm
  • Tilt angle90°
  • Basement water vessel100 Liters ca.
  • Terminations allowedBW, SW, RF, RJ
  • Clamping styleType 5 – Claws only
  • Dimensions (mech)1180 (L) x 1230 (D) x 1060 (H)
