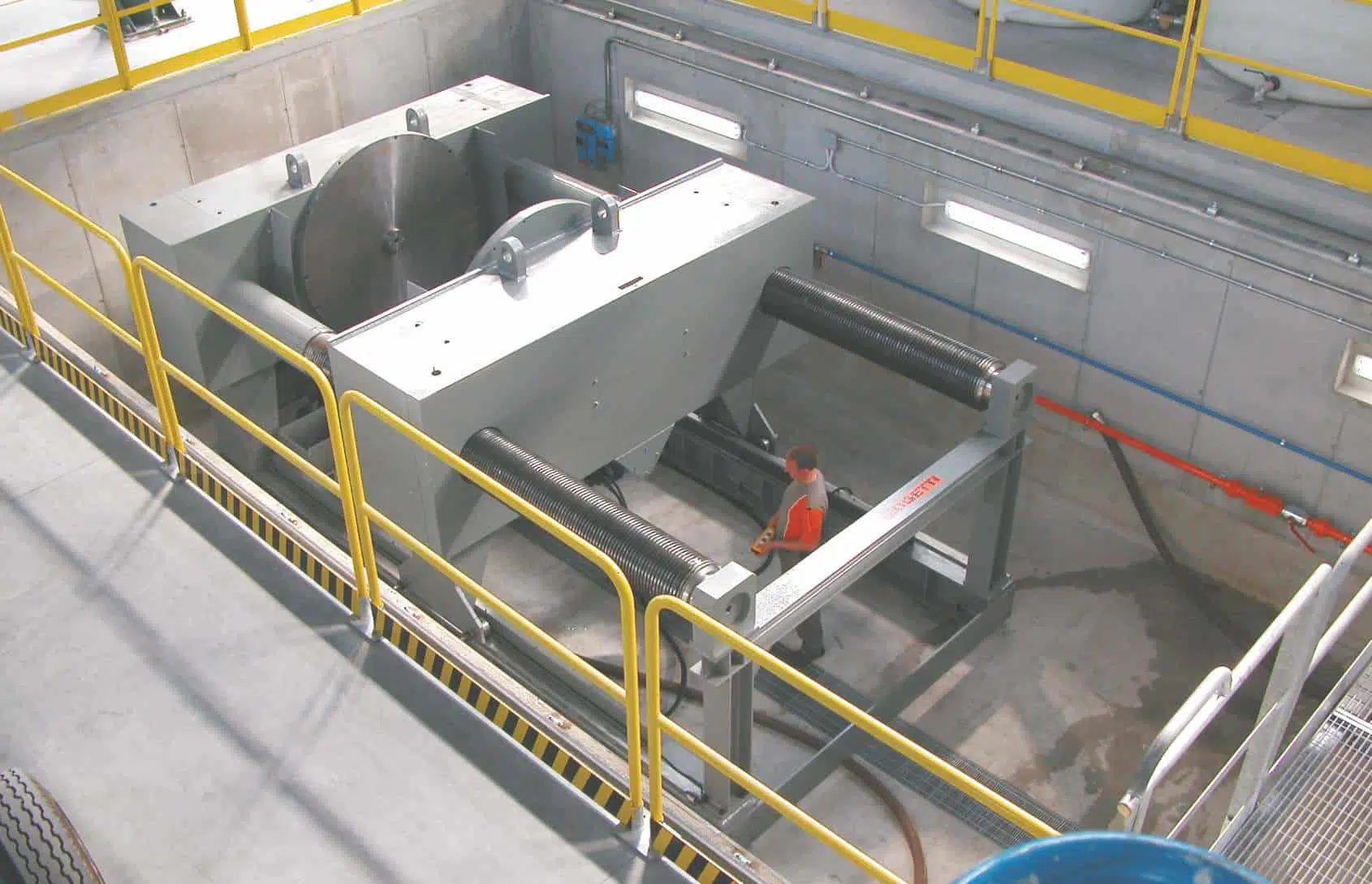

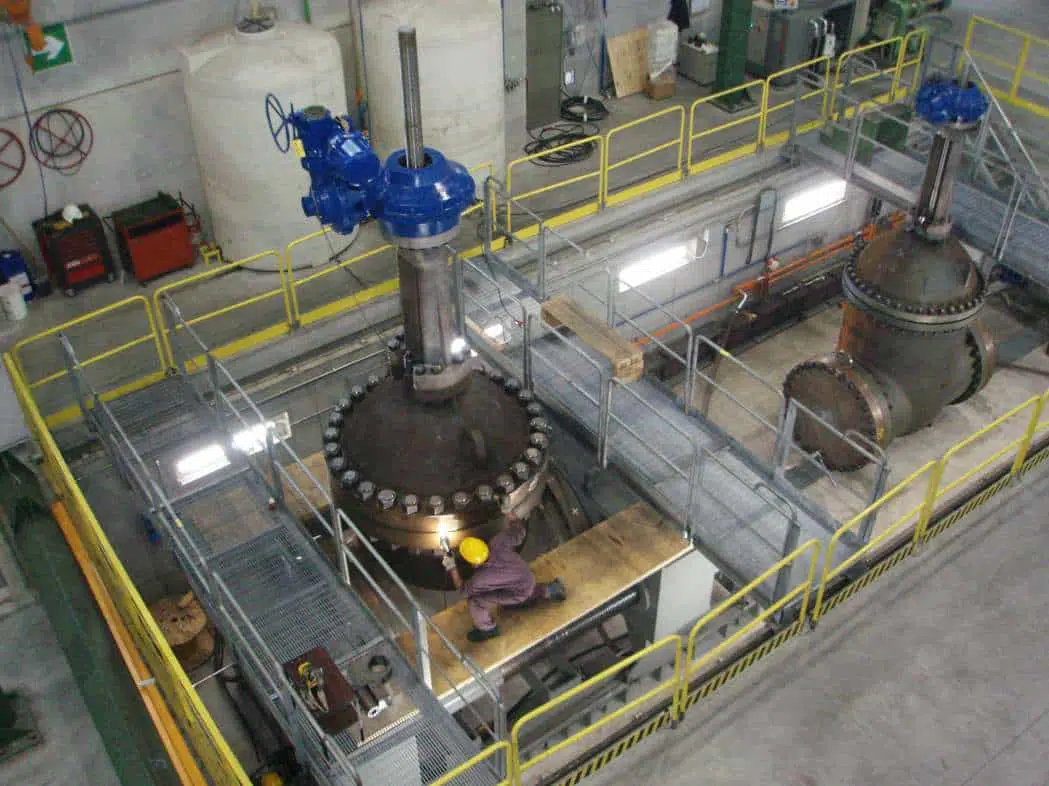

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. A water vessel is installed in the basement as water reservoir for test procedures. The rig is controlled by SKA-1000 pressurization skid; to have more information about please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force2800TON (See working limits table)
  • Max length 3600 mm
  • Min length 600 mm
  • Columns inner clearance2400mm
  • Flow axes height2000mm
  • Basement water vesselOptional
  • Lifters2 x 30 TON (standard asset)
  • Termination allowedBW, SW, RF, RJ
  • Clamping styleType 2 - inner radial
  • Dimensions (MECH)5900 (L) x 3560 (P) x 2950 (H) mm
