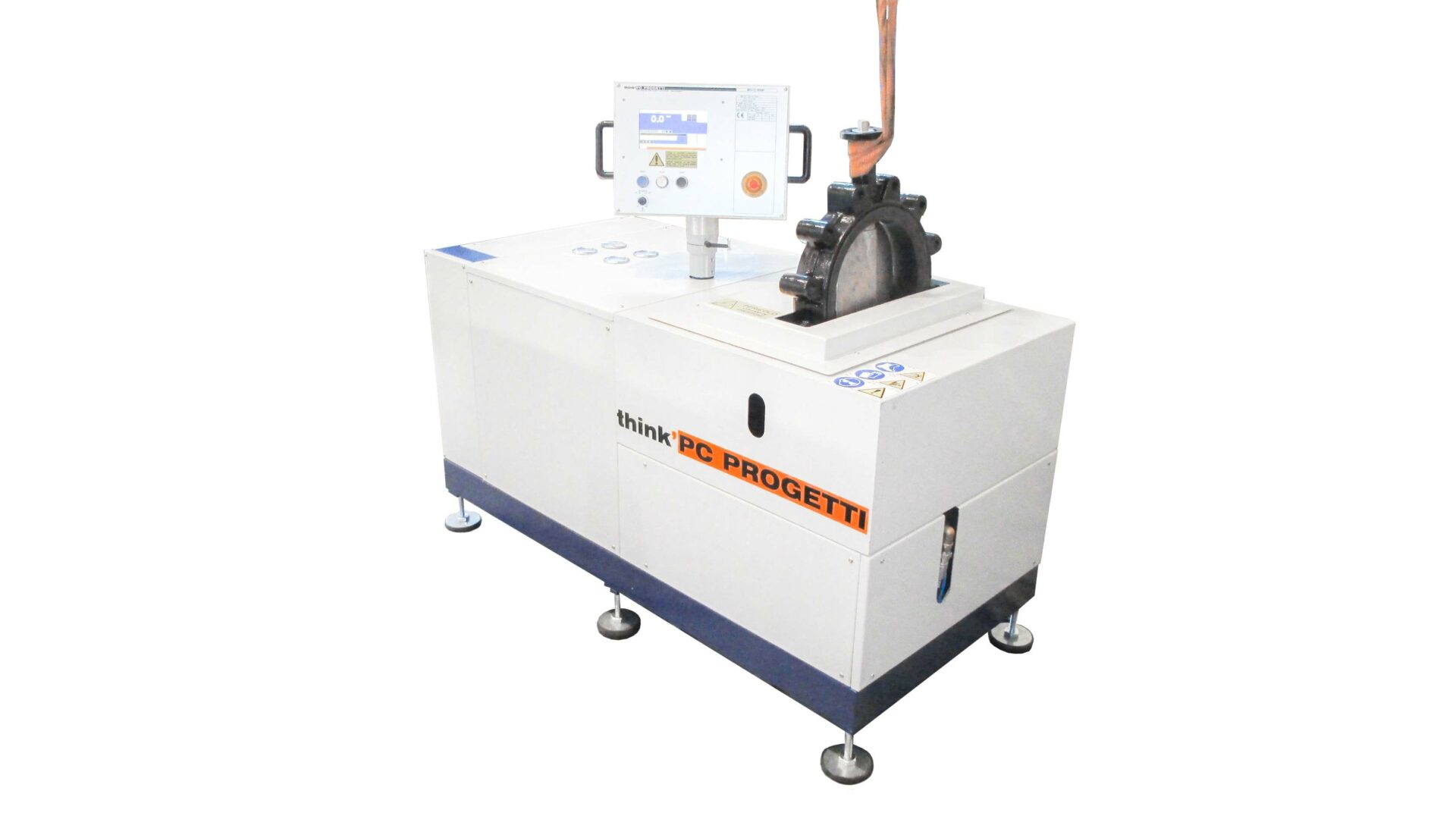

Horizontal test bench with proportional press clamping. Pressing force is automatically set upon valve size and class and it is even proportionally modulated according to test rising pressure.
The valve is inserted into a fairing to ensure the best safety level for operators, on the bottom side there auto centering “V” supports that let the operator center perfectly the valve flow axes whit the test bench.
This rig shape makes it perfect for BUTTERFLY valves testing. Test process components are integrated into the ring fairing. The test bench is controlled by a PLC and LCD for automatic test performing.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

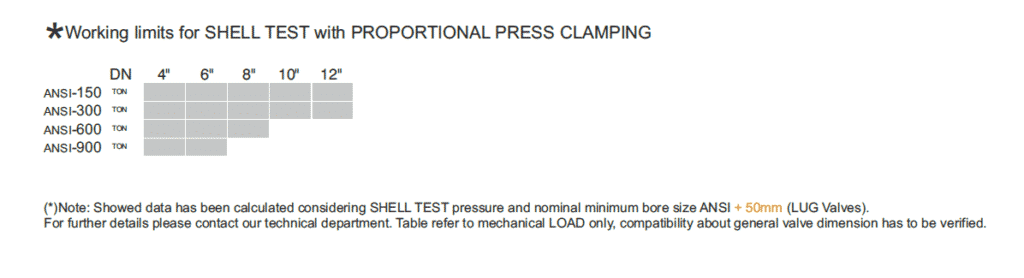

  • Reaction force90 TON (See working limits table)
  • Max Length 100 mm
  • Min Length 40 mm
  • Max flange diameter500 mm
  • Flow axes height990 mm
  • Loading Height from the ground650 Litres
  • Terminations allowedRF
  • Clamping styleType 1 – Proportional Press
  • Dimensions1500 (L) x 700 (P) x 1300 (H)
