Claws clamping with protection perimeter and 90° tiltable

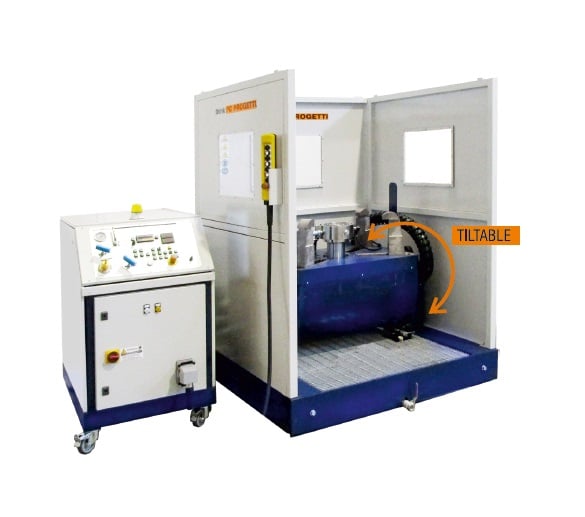

Test rig with claws clamping. Test of RF or RTJ valves could be executed in real working conditions. The clamping is of hydraulic on/off type. This prerogative makes it suitable for PSV valves and for flow valves. The auto-centering movement of claws and tilting is hydraulically or pneumatically controlled (as option). In the basement there is a vessel for test fluid and additional vessels are available. The tilting ability of clamping plateau improves product loading capability, and allows the bullet-proof protection fairing to ensure best operator safety level. It can be controlled by a standard pressurization skid; in the picture you can see mod. SKMM-100-G.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

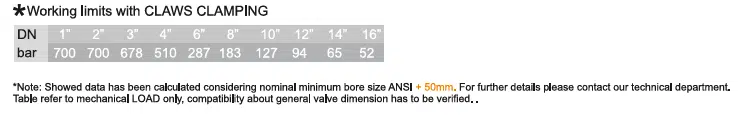

  • Reaction force90 TON (See working limits table)
  • Max flange diameter530/650/860 mm
  • Min flange diameter 90 mm
  • Seat lif measure contact less0-150mm ±0,15%
  • Max flange thickness 140 mm
  • Tilting angle0° + 90°
  • Basement water vessel 200 Liters
  • Terminations allowed RF, RJ
  • Clamping style Type 5 - Hydraulic cylinder w/claws
  • Clamping force controlOn/Off type
  • Range10..100%
  • Reference standardISO, API, ASME, ASTM
  • Dimensions (mech)1465 (L) x 2100 (D) x 1900 (H) mm
