BV-M/7.5SH

Category:

CLAWS CLAMPING WITH FULL PERIMETER PROTECTION

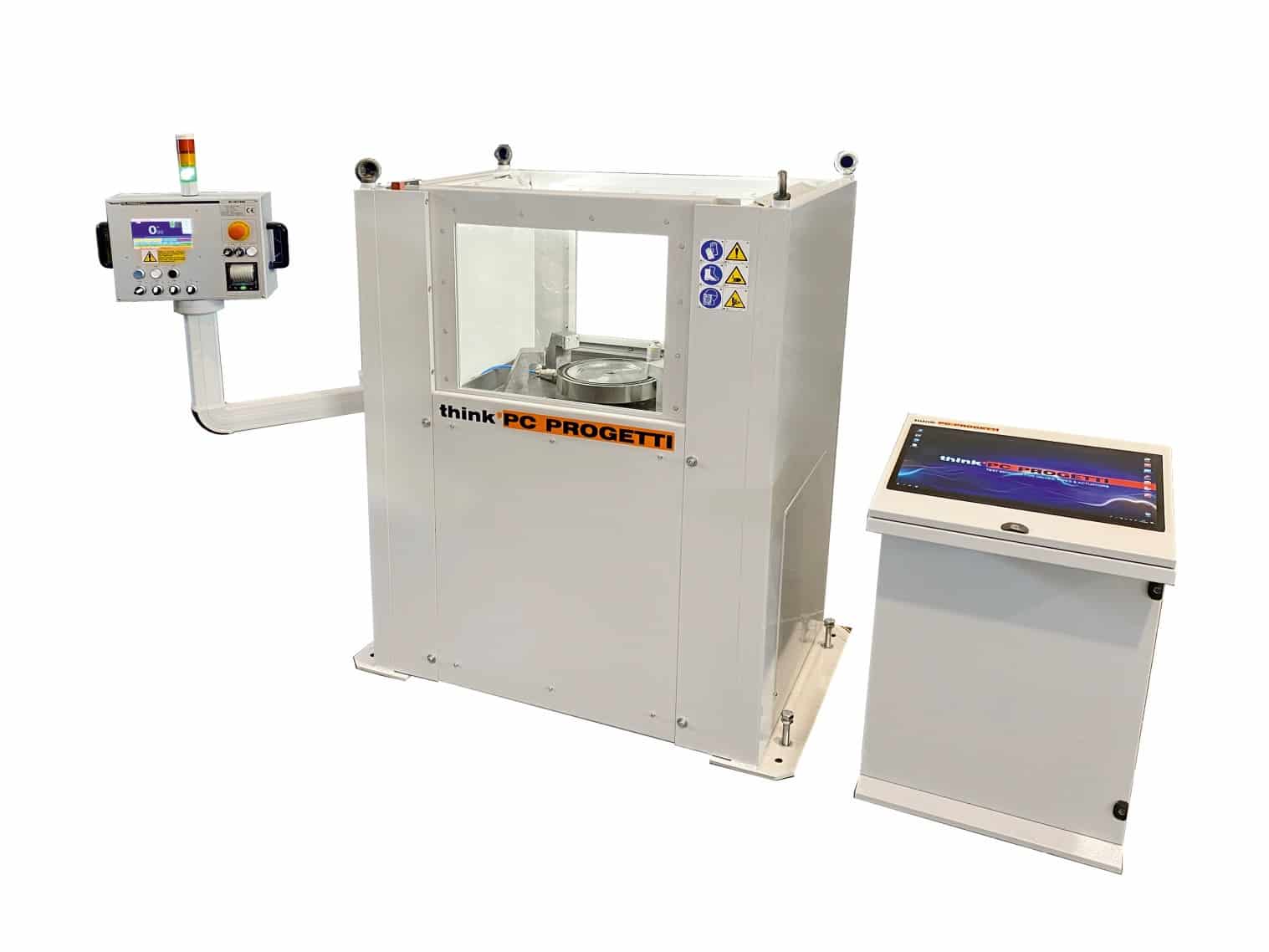

Test rig with claws clamping. Test on RF or RTJ valves can be executed in real working conditions. The clamping is of hydraulic on/off type.
This prerogative makes it suitable for PSV valves, angular flow valves, vessels, fitings ecc. The auto-centering automatic movement of claws is hydraulically or pneumatically controlled (as option). Perimeter protection fairing will ensure operator safety; double access side is foreseen to allow operators to the inner
area (Front and Rear). The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force7.5TON
  • Max flange lengthØ450mm
  • Min flange lengthØ200mm
  • Seat lift measure contact less0-150mm ± 0,15%
  • Tilting angleFIXED (non tiltable)
  • Basement water vessel200 Liters
  • Termination allowedRF, RJ
  • Clamping styleType 5 – Hydraulic cylinder w/claws
  • Clamping force controlOn/Off type
  • Range10..100%
  • Eletrical supply3PH + N+T 380V@50Hz 3KW
  • Dimensions (mech)850 (L) x 850 (D) x 1590 (H) mm
