Mobile bridge
Proportional press clamping

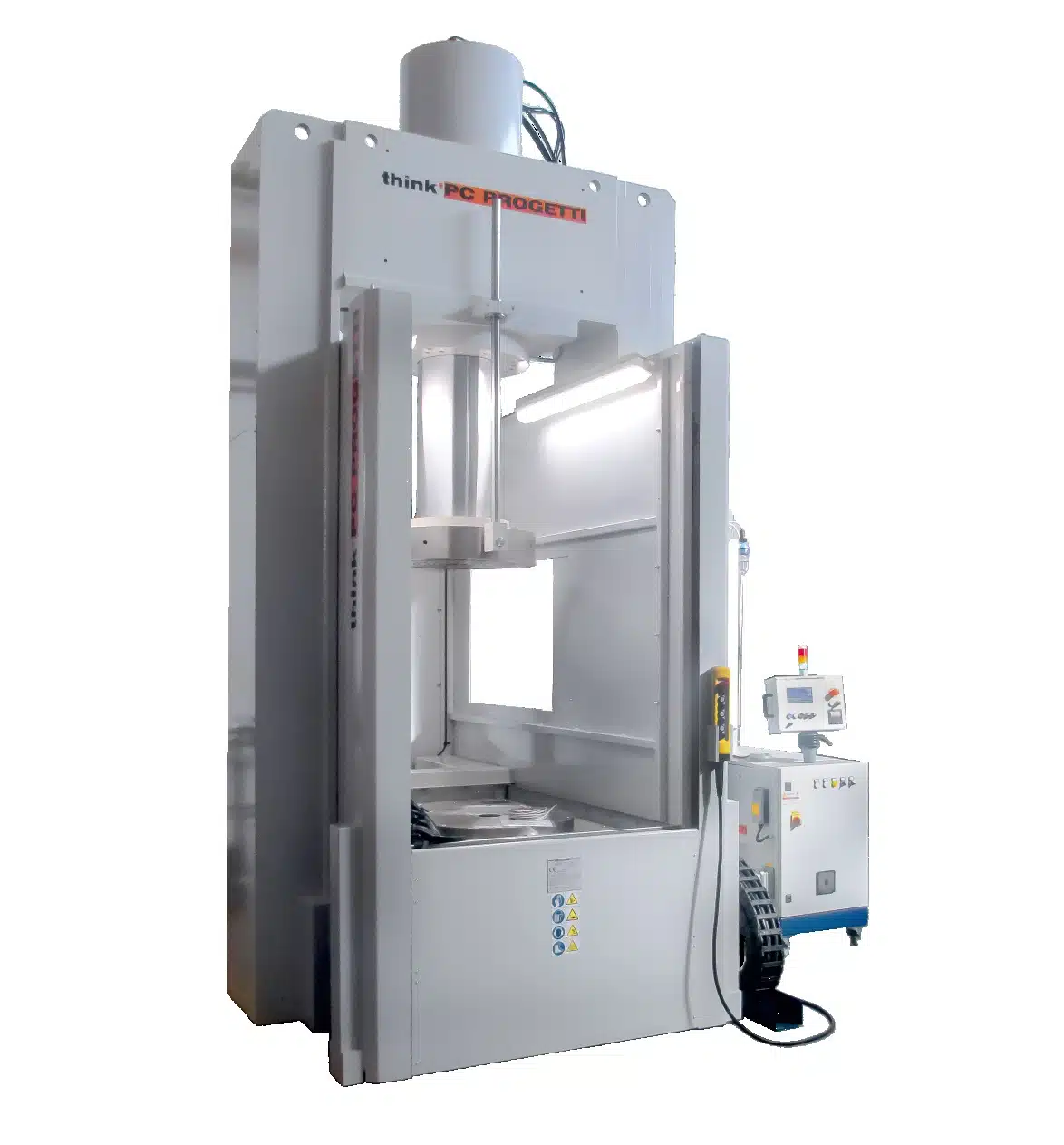

Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. In the basement there is a water vessel and an external water tank could be added as option. The use of an open castle as an upper side reaction structure allows the user to make visual inspections of valve seats during the test. The front side can be closed by a mobile horizontal sliding gate (optional). The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicate technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.

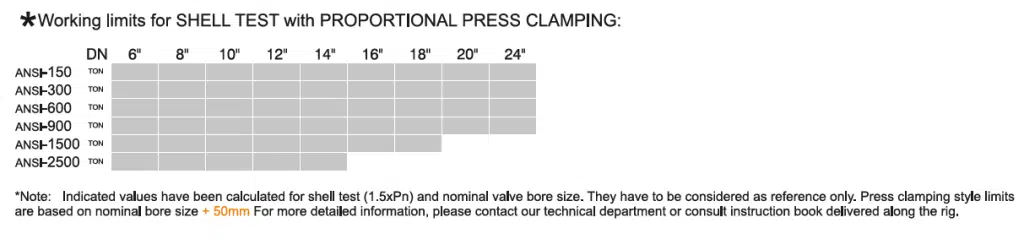

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force500 TON
  • Max valve length 1850 mm
  • Min valve length400 mm
  • Max flange diameter1200 mm
  • Mobile bridge run1200 mm
  • Cylinder shaft run 1100 m
  • Loading height900 mm
  • Basement water vessel200 Liters
  • Termination allowedRF, RJ
  • Clamping styleType 1 - proportional press clamping
  • Dimensions1545(L) x 2880(P) x 4395(H)
