Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities.
The mobile bridge is moved by two screwed columns that assure complete absence of external forces on valve body and hydraulic cylinder can make press clamping with or without proportional control.
This prerogative makes it compliant to the most widespread international test standards.
A water vessel is installed in the basement as water reservoir for test procedures.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force750 TON (10% minimum press clamping)
- Max length 3000 mm
- Min length 150 mm
- Columns inner clearance1200 mm
- Flow axes height1200 mm
- Basement water vessel1200 liters
- Terminations allowedBW, SW, RF, RJ

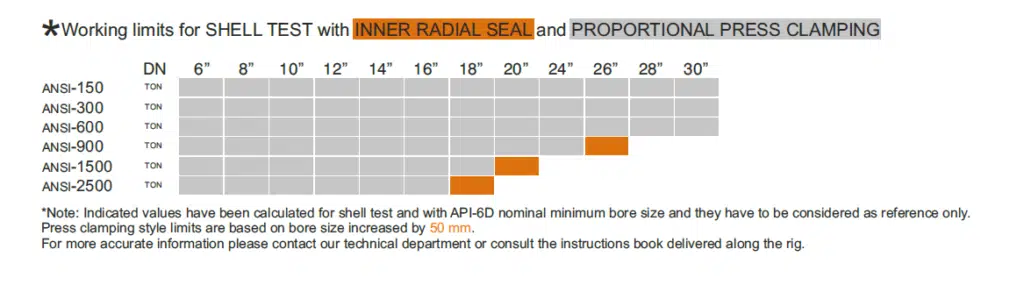

- Clamping styleType 3 - Combined
- Dimensions5550 (L) x 2000 (P) x 2000 (H)
