Inner radial seal (bore plugs)
5 loading trays

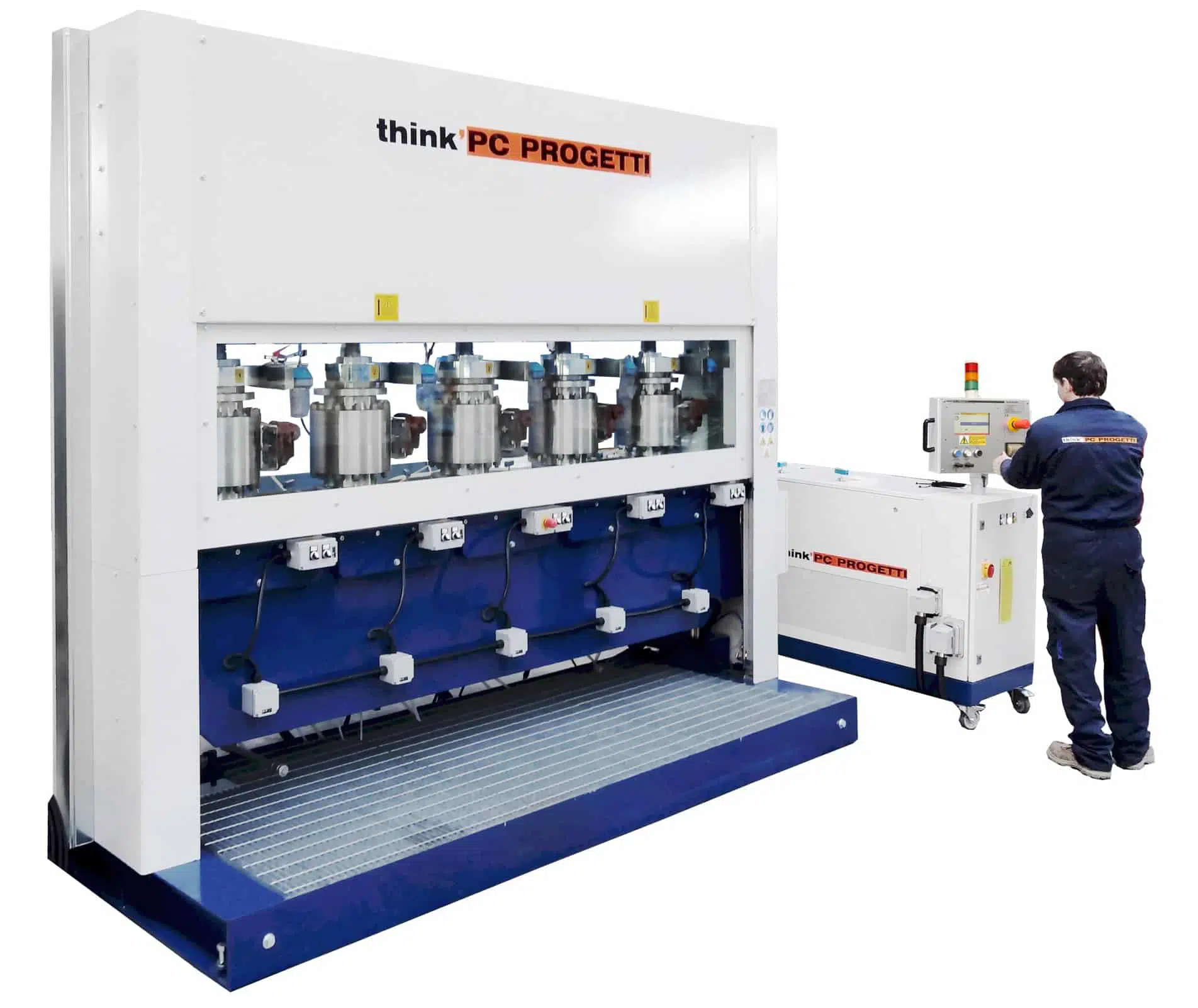

Vertical test rig with inner radial seal clamping style.
5 test places available for multiple pressure test.
The screwed columns assure complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

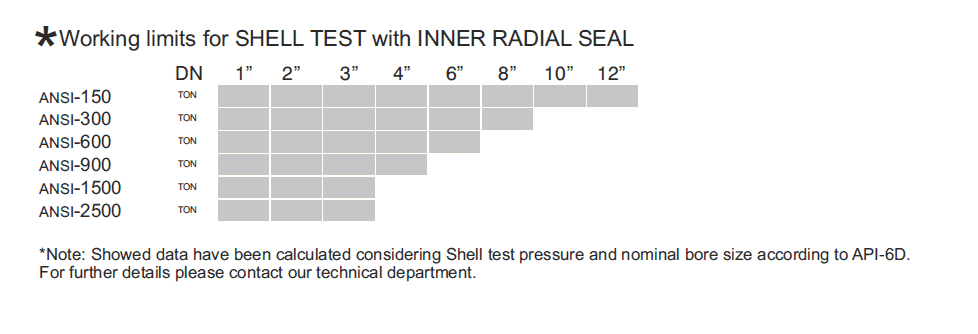

- Reaction force (total)150 TON 5 x 30 TON
- Length max700 mm
- Length min200 mm
- Center to center distance580 mm
- Loading Height1200 mm
- Basement water vessel400 Liters ca.
- Terminations allowedBW, SW, RF, RJ
- Clamping styleType 2 – Bore plugs
- Dimensions (mech)3280(L) x 1250(D) x 2750(H)
