BV-PMV/200

Category:

Mobile bridge, bore plugs clamping

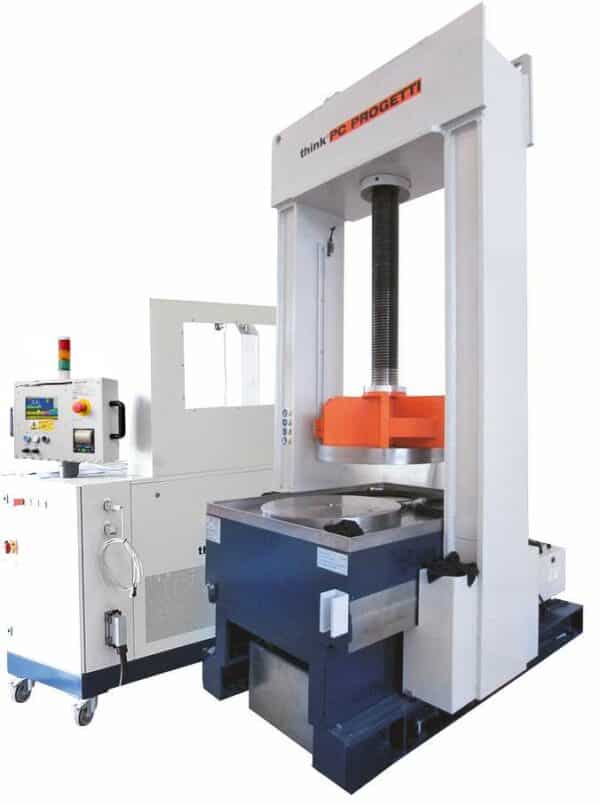

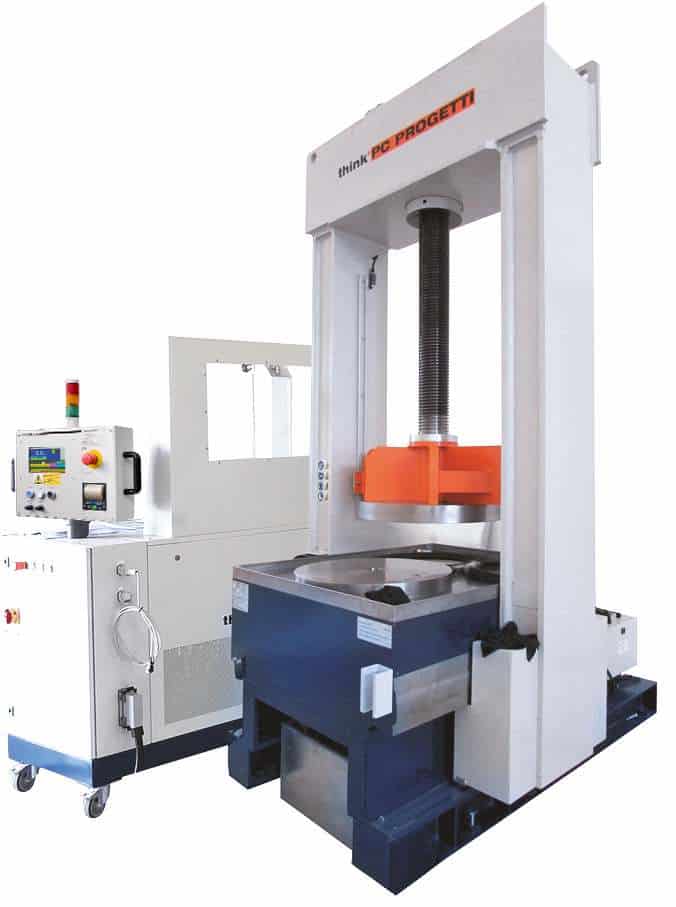

Vertical test rig with bore plugs clamping style; mobile upper side bridge allows vertical loading of the valve and the possibility to have double working stand; while the first is working, the second could be prepared for next piece. In the basement there is a water tank and an external water tank could be added as option.
The use of a opened castle as upper side reaction structure, allows the user to make visual inspection of valve seat during the test.
The rig is controlled by SKA/SKM classes pressurization skid; to have more information about please consult dedicated technical data sheets.
The rig could be completed with several options and accessories, please contact our sales office to have more information.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

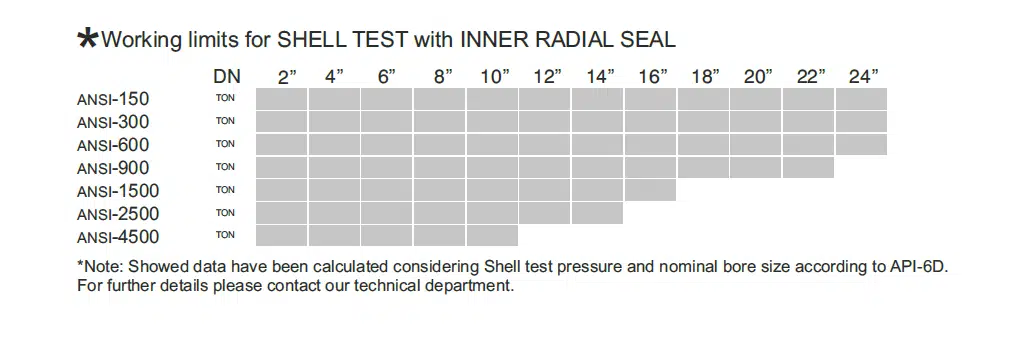

  • Reaction force200 TON
  • Workig stand1 ( 2 on request)
  • Length max1300 mm
  • Length min200 mm
  • Columns inner clearance1100 mm
  • Loading Height1010 mm
  • Bridge stroke900 mm
  • Basement water vessel350 Liters ca.
  • Terminations allowedRF, RJ, BW, SW (Bore machined)
  • Clamping styleType 2 – Bore Plugs
  • Dimensions (mech)1610 (L) x 2440 (P) x 3450/4150 (H)
