Inner radial seals (bore plugs)
3 independent water vessels &
bullet-proof surrounding protection

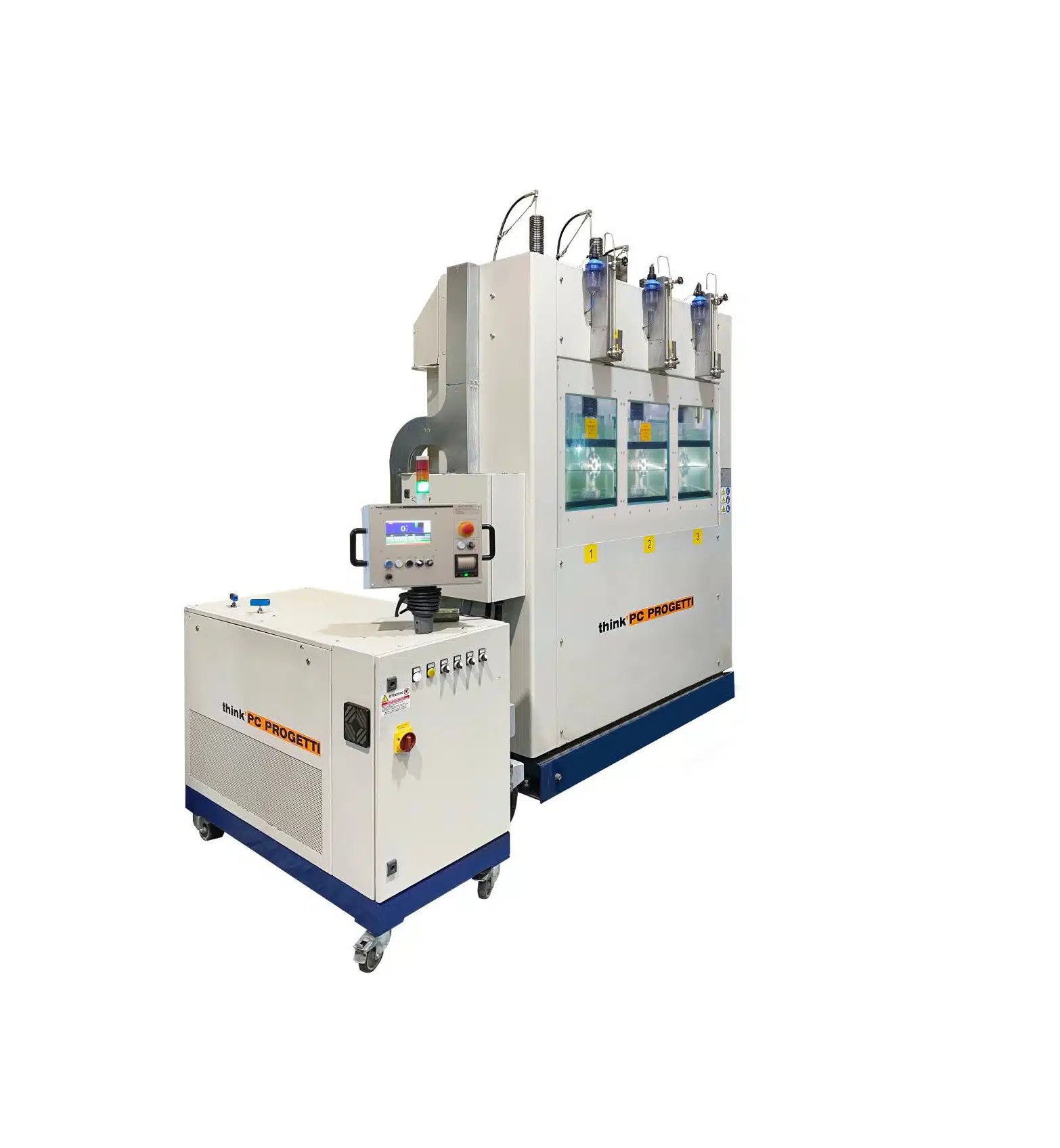

Three station vertical test rig with inner radial seal clamping style.

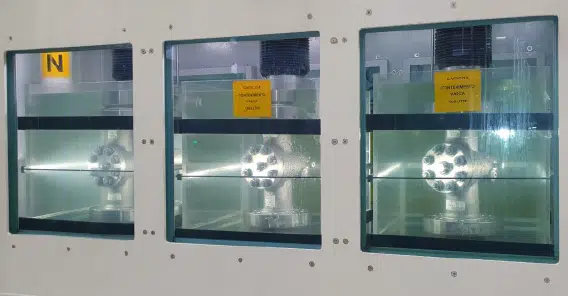

Each test place has the possibility to perform GAS tests under water having independent water vessels, risign automatically to submerge the valve.
Each water vessel can be equipped with a temperature control system.
Proportional control of pressing clamp is available as well; the press force is automatically controlled according to pressure inside the valve, and the result load is reduced to minimal terms.
Armored steel protection with bullet-proof glass guarantees the highest safety level for operators, and the best view for the under water bubbles leak catching.
The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult the dedicated technical data sheet.
The rig could be completed with several options and accessories, please contact our sales office to have more information.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force30 TON
- Max valve length 460 mm
- Min valve length 200 mm
- Loading height 1100 mm
- Vessel inner dimension400 (L) x 525 (D) x 500 (H)
- Water heating 5-40°C
- Distance between test places550 mm
- Terminations allowedRF, BW, SW, RJ
- Clamping style Type 2 - Inner radial
- Dimensions (mech) 2295 (L) x 1110 (D) x 2630 (H)
