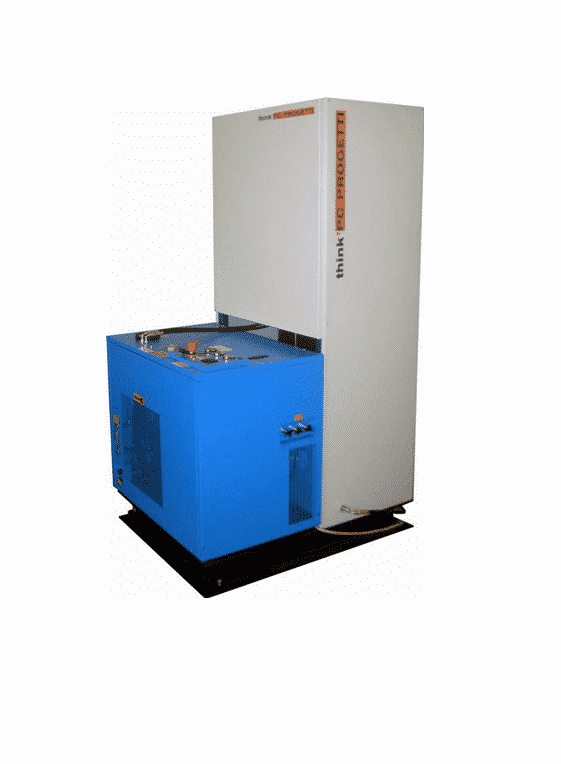

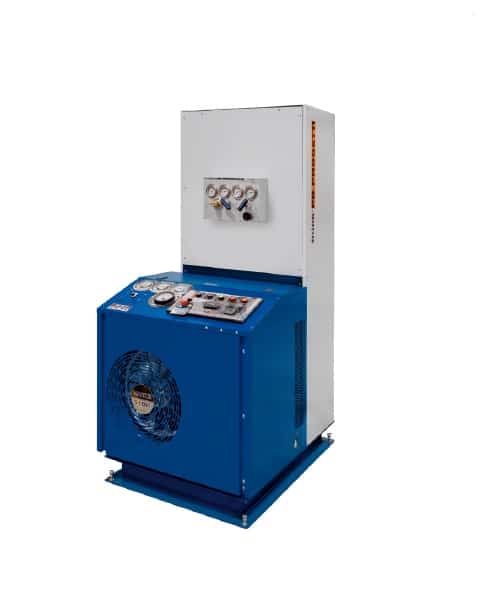

Air compressor skid.
It is formed by an eletric 3 stage compressor able to pressurize ambiant air up to 330 bar as std.
Reservoir vessel and final pressure booster are available as options.
Maximum outlet pressure : 1000bar.

  • Outlet pressure 330 bar std
  • Flow ability 200 SL/min (8 min to pressurize 10L vessel up to 200 bar)
  • Final booster Optional - Available on request
  • Reservoir tank 150L@max 330bar
  • Noise level79 Db (ISO-3746)
  • Electrical supply3PH + T, 400V@50Hz, 5KW
  • Dimensions (mech)900 (L) x 2100 (D) x 2100 (H) mm
