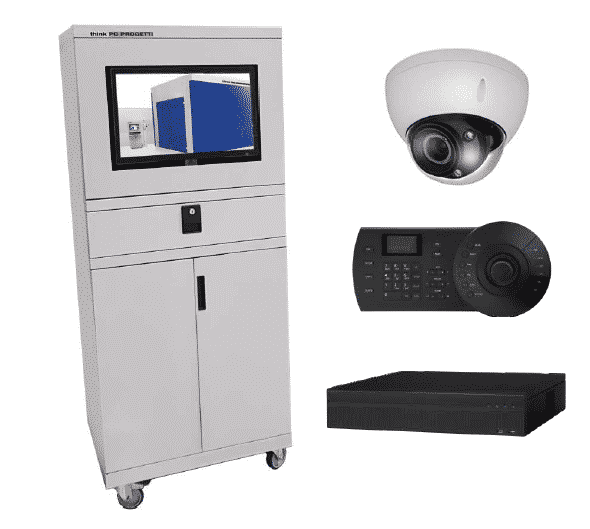

SK-SC/01

Control console for IP Cameras, with 3D positioning control device. Possibility to see test procedures even remotely over WAN connection, or on Smartphone App.
Digital video recorder included with possibility to export video data on USB key or LAN connection.
Safety Video detection alarm for unauthorized people in dangerous area.

– Nr. 4 HDCVI High definition Cameras, 30fps@1080P, Sensor 1/2.8” CMOS. Resolution 1920px(H)x1080px(V), 2MP, Motorized w/Fixed Iris Lens 2.7-12mm, Minimum illumination 0.005Lux/F1.8, 30IRE, 0Lux IR on. DORI Def. Observe Wide-19m, Tele-55m. Pan 0°-355°, Tilt 0°-75°, Rotation 0°-355°. Working temperature -30° +60°C. Protection IP67 & IK10.

– Nr.1 Monitor LCD 16:9 20.7”

– Nr. 1 Network keyboard & Dome Joystick position controller, 3D pos.

– Nr. 1 Digital video recorder,H.264+/H.264 dual-stream video compression, 4CH input max 8MP each, 1TB HD capacity (Max ex. To 8TB), HDMI / VGA output, USB 2.0, USB 3.0, Smartphone Network Android/Iphone/Ipad, Videodetection alarm included.

– Nr. 1 Console cabinet Dim. 717(L) x 595(D) x 1625 (H)
