BPA-40K

Static torque peak measure and endurance dynamic test

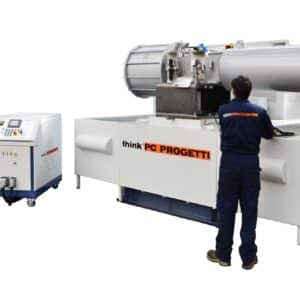

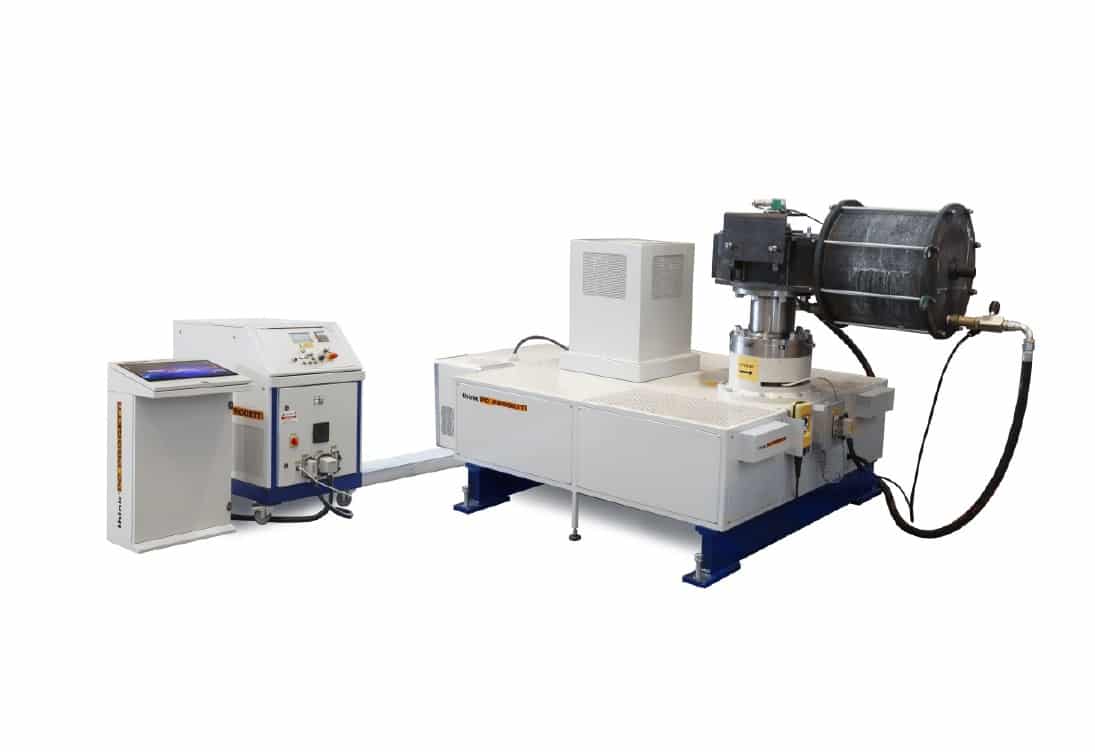

Scotch YOKE ¼ turn actuator test bench, able to perform TORQUE test in static positions and dynamic endurance full load simulation. It is controlled by SKMM-100 pressurization skid and test data are collected by TestREC6.6.0- ACT control software.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Nominal TORQUE40000 Nm
  • Torque measurementDirect/Indirect
  • Working range10 – 100%
  • Angle range0.0° - 90.0°
  • ZERO adjustment-5.0° / +5.0°
  • Bidirectional reaction forceINCLUDED
  • Static torque measuring angle res.0,1°
  • Static torque fixed point (PIN BLOCK) :Available as option
  • General accuracy0.5% F.S.
  • Dynamic test simulationDynamic brake
  • Rotation speed0,1 – 2,9 °/sec (Other on request)
  • Dimensions (mech)2300 (L) x 2316 (D) x 1150 (H)
