SKA-100/S

Category:

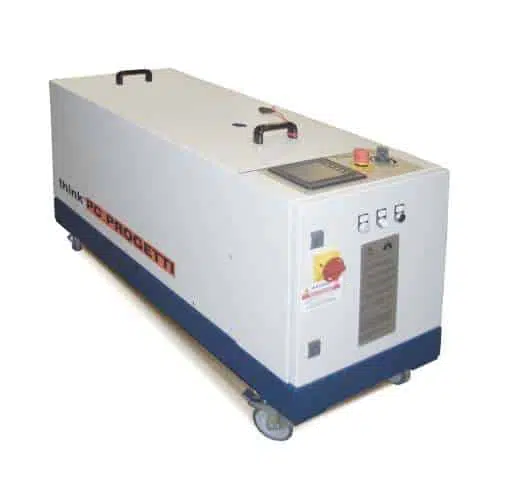

Controlled by electronic PLC and configured by LCD touch screen monitor, this hydraulic/pneumatic pressurization skid could store test data, set-points, times and leak limits .
The pressure set-point is automatically reached, leak is measured by electric bubbles counter and vacuum pump can ensure absence of air in the valve’s body. The wet test items are made of stainless steel and is dimensioned to take pressure up to 700 bar.
High reliability is assured by metal to metal needle and it has a high filling flow ability.
The reports of test can be obtained without external PC by 24cln thermal printer.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • H2O700 / 1050 / 1380 / 1600 bar
  • Air- (SHV model : 0.998 / 0 bar)
  • Filling flow70 L/min (from external line)
  • Pressurization Power0,4 / 1,5 HP
  • Vacuum pump opt.36 m3 /h
  • Backseat testNot available
  • Seat over pressure testNot available
  • Operation HP testNot available
  • DBB test opt.Not available
  • GAS Test opt.Not available
  • GAS Booster opt.Not available
  • CAVITY test optNot available
  • Multistation opt.Not available
  • Actuator control panel opt.Not available
  • ATEX certification opt.Not available
  • Fluid allowedWater, Water & oil mixture, Glicole, Ethanol (Atex), Methanol (Atex).
  • Control systemPLC/LCD touch screen 7"
  • Printer opt.Not available
  • Ref. StandardAPI \ DIN \ BS \ FCI other on request
  • Eternet InterfaceRJ45 10-100BASE-T
  • Certification softwareOption TestREC
  • Tele service VNP routerNot included
  • AirANSI Bubbler, Bubbles counter, Volumetric bubbler, Mass flowmeters
  • WaterWater Column, Digital water column, Turbines flowmeters, accordin client preferences
  • Service air supply7 bar @ 2000L/min Other available on request.
  • Electrical supply3ph+T 400V@50Hz 2.2KW Other available on request.
  • Dimensions (mech)500(L) x 1000(D) x 700(H)
