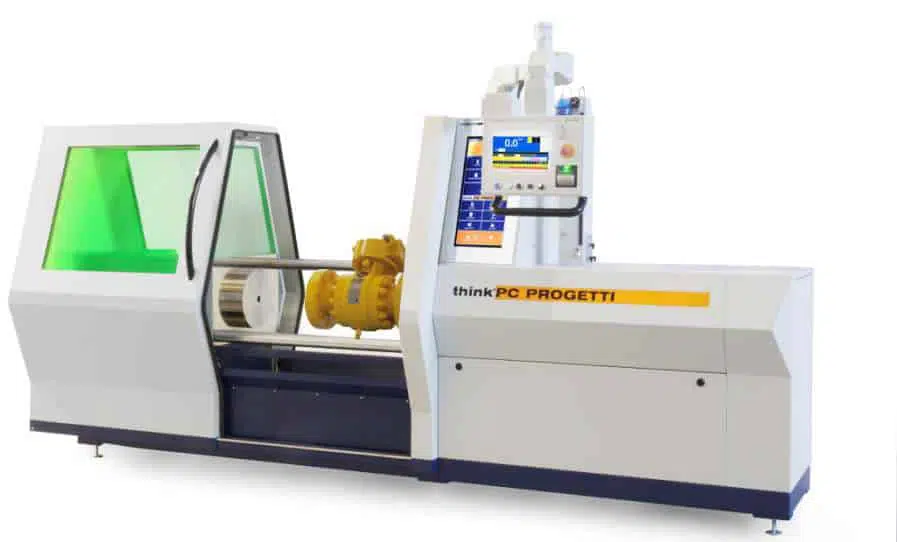

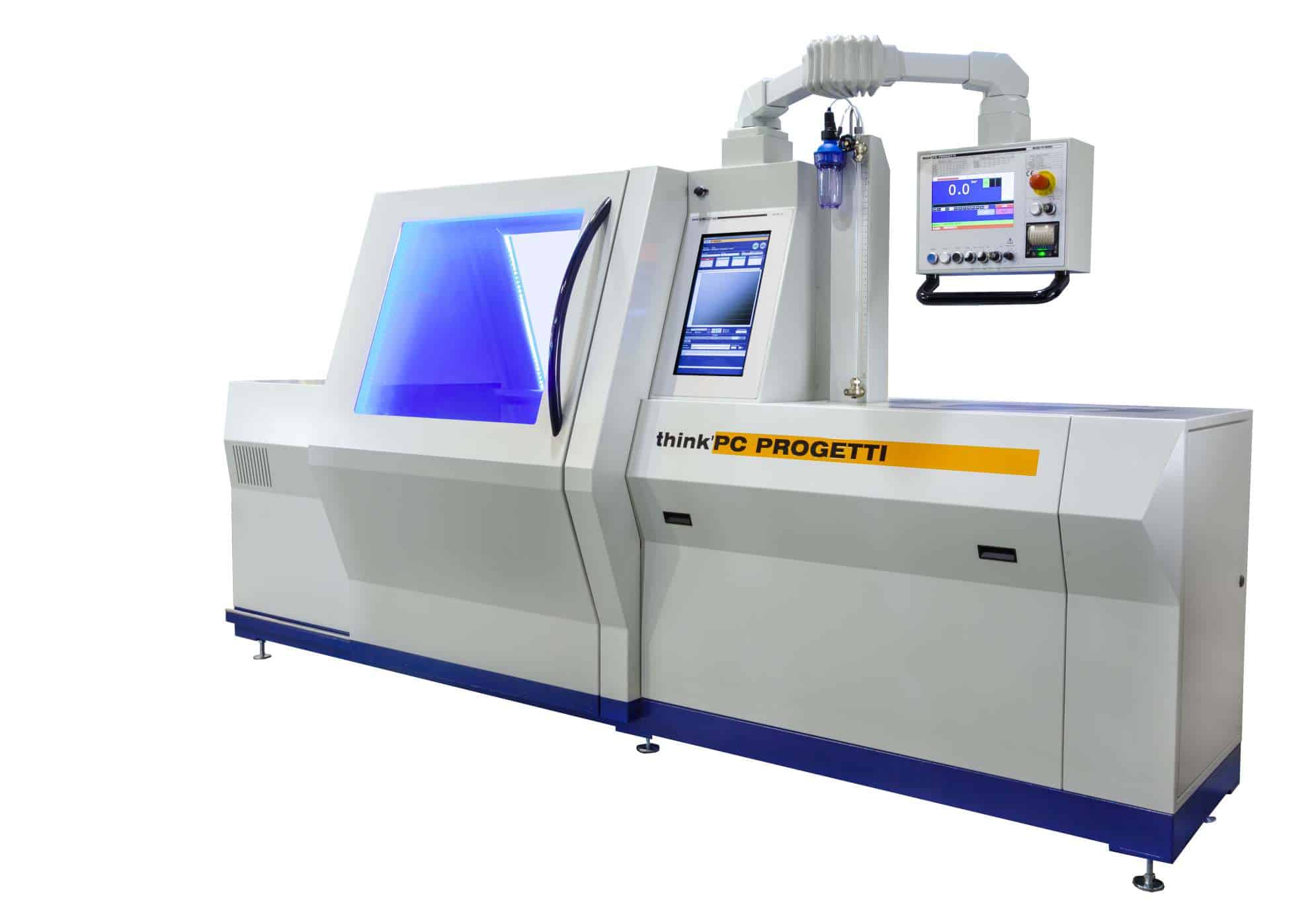

Test Rigs with Full Armored Bullets Proof Shield with Double Side Access

Bore Plugs Or Combined clamping Styles Available. full Protection Shield double Access Side

Horizontal test benches available in two different clamping style: Bore plugs or combined. The mobile reaction bridge is moved by one screwed column that assures the complete absence of external forces on valve body.
This prerogative makes it conform to the most diffuse international test standards (bore plugs).
A BULLETS PROOF full protection is foreseen to perform high pressure gas/water test in high safety conditions. Door opening is conditioned by visual inspection rules (automatic pressure reducing before inspection) and normal pressure discharge procedure.
In the basement, a water tank is installed as water reservoir for test procedures. Test process is controlled by electronic PLC & LCD touch screen. Double control AUTO / MAN software is foreseen to give maximum flexibility to operator.Test data can be printed out on 24cln thermal printer directly in test area or be downloaded by serial connection (standard) to Windows based PC with TestREC6.6.0 certification software.
