Double sector columns external radial auto-adaptive seals

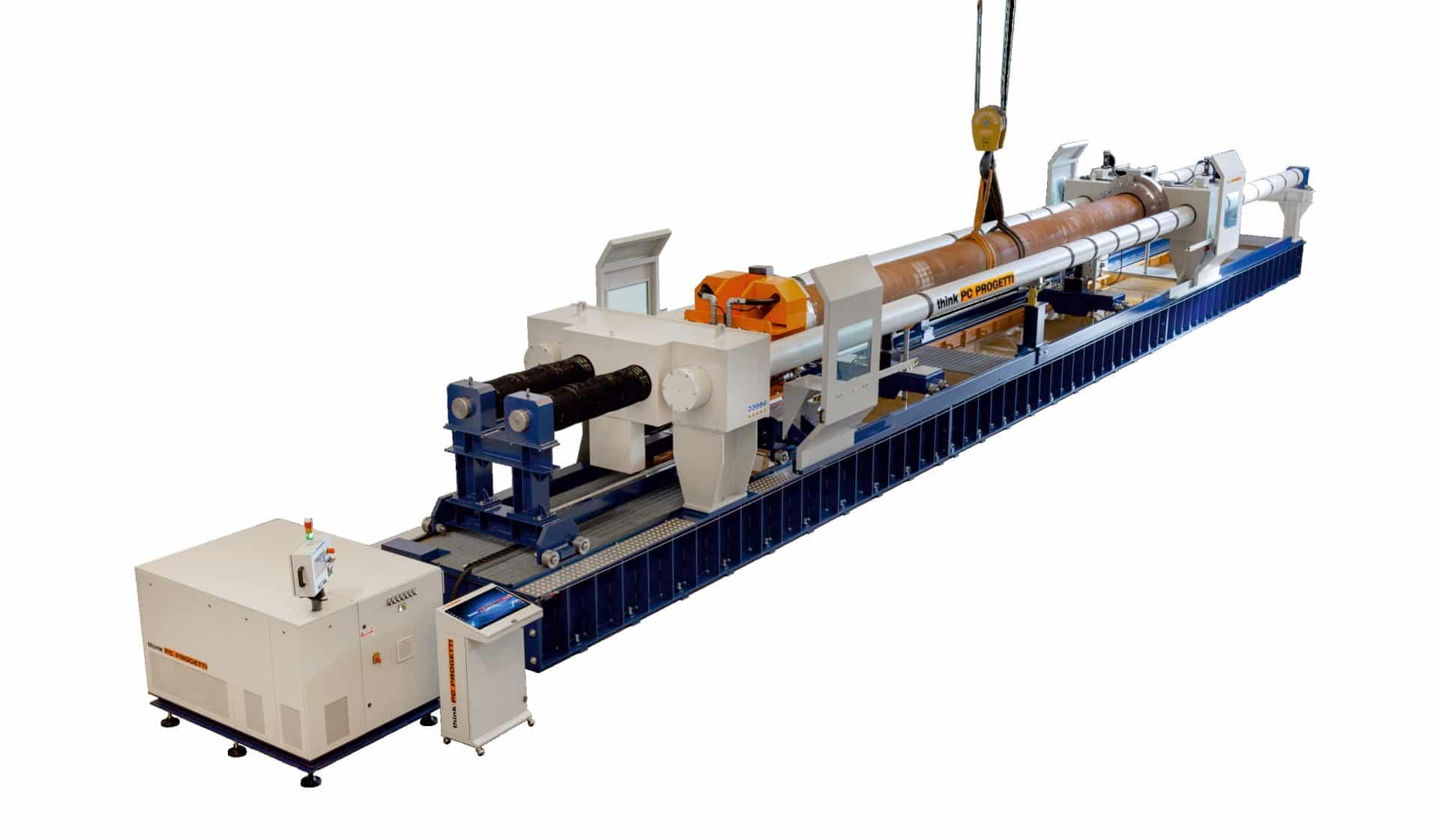

Test bench for pipes with clamping style nr. 2 “inner/outer seal” or nr. 8 “overpressure auto-adaptive seals” for elliptical shape error. Reaction bridges are connected by sector columns, that allow to set up maximum pipe length. The fine adjustment on pipes is performed by screwed columns. The right-hand side reaction bridge is able to run on the entire columns length to cover a wide range of pipe measures, as described in the technical table below. Pipe loading is performed by a crane from the top, while nr. 2 hydraulic “V” shaped lifters will support it for the entire test. They are able to center the alignment on seals heads. The basement includes a water vessel with an evaporation limit device (optional). The test bench does not need any foundations. It is controlled by a SKA class pressurization skid with up to 2000 L/min water filing ability. To have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, and it is fully customizable to clients preferences.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction power1500 TON
  • Max pipe length14000 mm
  • Min pipe length4000 mm
  • Max-min pipe diameter812-190 mm
  • Allowed elliptical error1,5%
  • Flow axes height1500 mm
  • Basement water vessel10 m3
  • Max Test pressure250 / 500 / 800 / 1380 bar
  • Filling Flow2400 Liters/min
  • Pneumatic supply8 bar
  • Dimensions21390(L) x 2350(P) x 2735(H)
