DOUBLE SECTORIZED COLUMNS, EXTERNAL RADIAL SEALS OR AUTOADAPTIVE SEALS CLAMPING

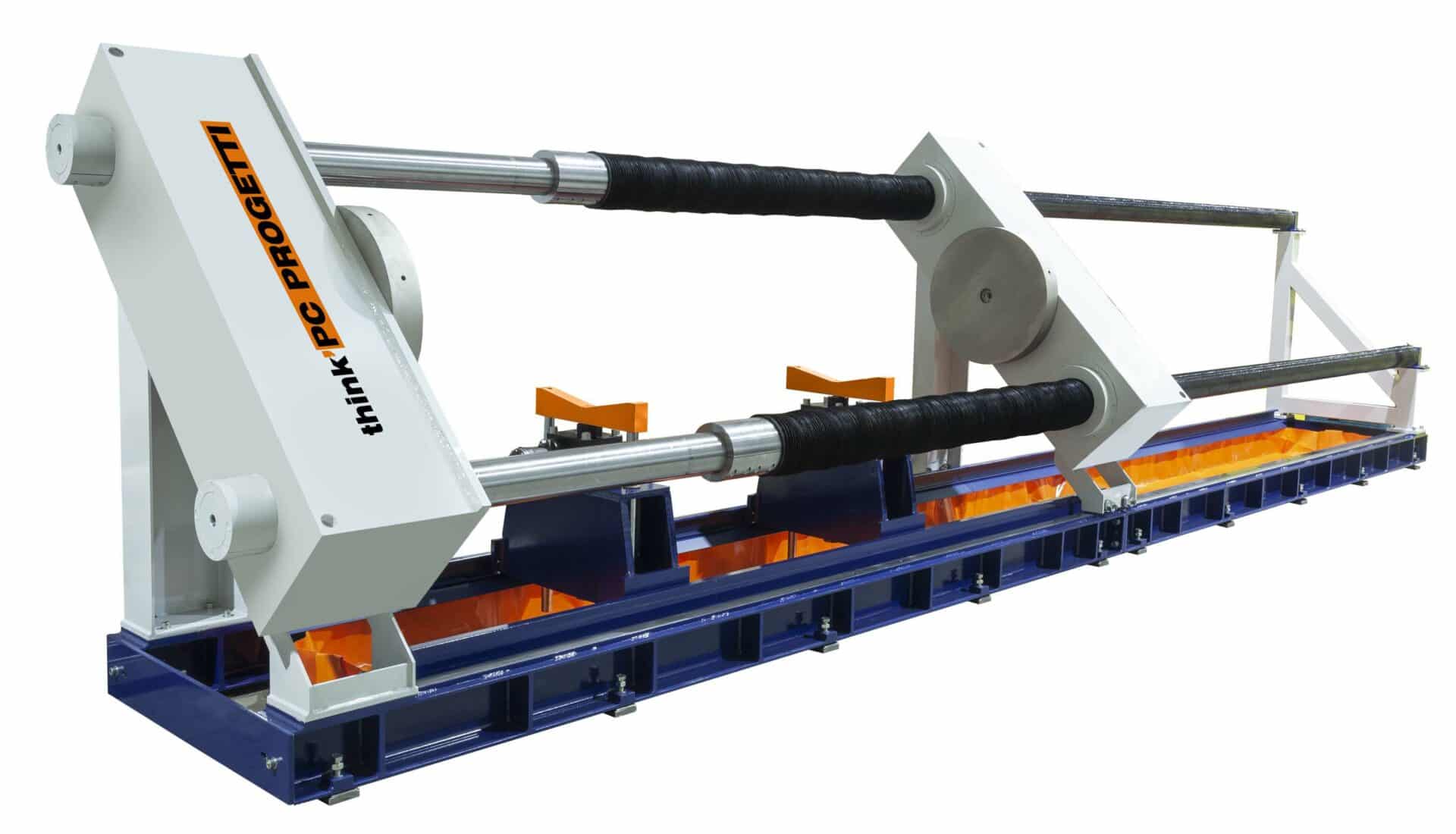

Test rigs for pipes with clamping style Nr. 2 “Inner radial seal” or Nr. 8 “Overpressure auto-adaptive seals” for elliptical shape error. Reaction bridges are connected by 2 screwed columns that allow to set up maximum pipe length.
The right side reaction bridge is able to run on the entire columns length to cover a wide range of pipe length measures as described in the technical table below.
Pipe loading is performed by a crane form the top or horizontally, while Nr.2 hydraulic “V” shaped lifters will support it for the entire test and they are able to center the alignment on seals heads.
The basement includes a water vessel with an evaporation limit device (on request). The test benches does not need any foundations. The rig is controlled by a SKA class pressurization skid with 120 L/min water filling ability.
To have more information about it, please consult dedicated technical data sheets. The rig could be completed with several options and accessories.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction force250 TON (See working limits table)
- Pipe length max7200 mm
- Pipe length min2500 mm
- PIPE max Diameter700 mm
- Flow axes height1200 mm
- Basement water vesselMAX 3000 Liters
- LifterSee Option
- Screw Dust ProtectionSee Option
- Terminations allowedBW, SW, RF, RJ
- Clamping styleType 2 – Bore Plugs Type 8 – Auto adaptive seals
- Dimensions8850 (L) x 1580 (P) x 2000 (H)
