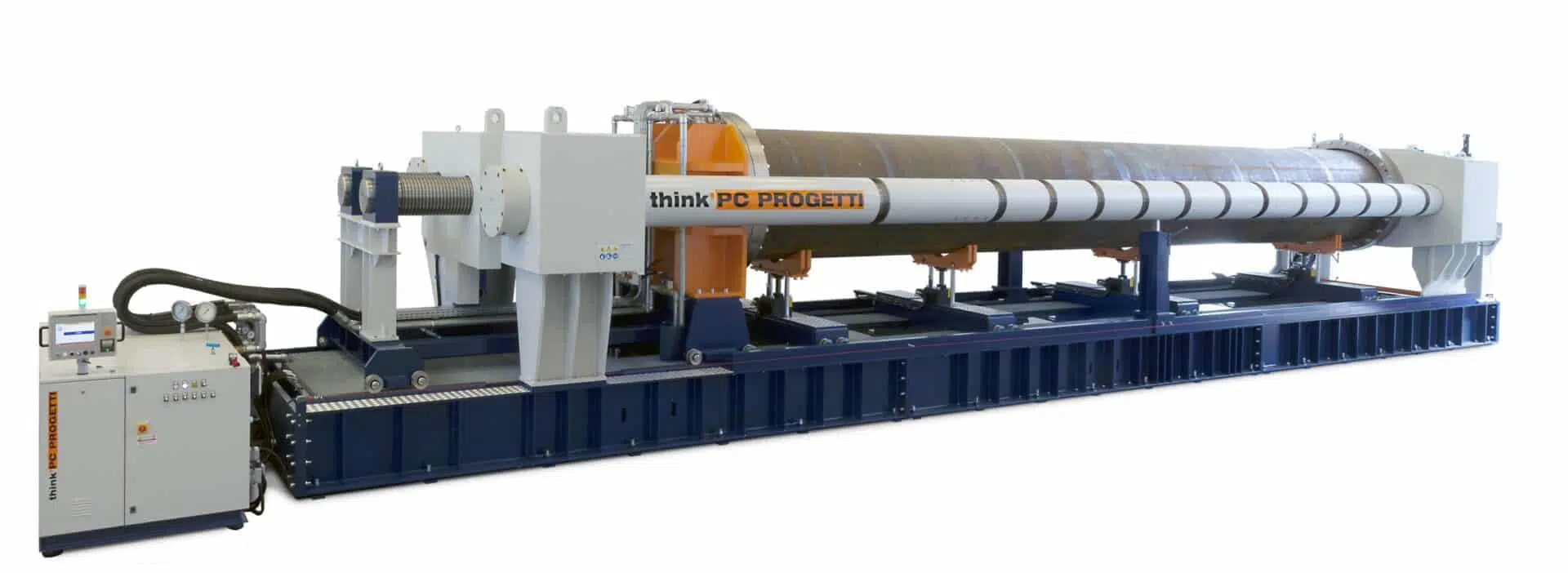

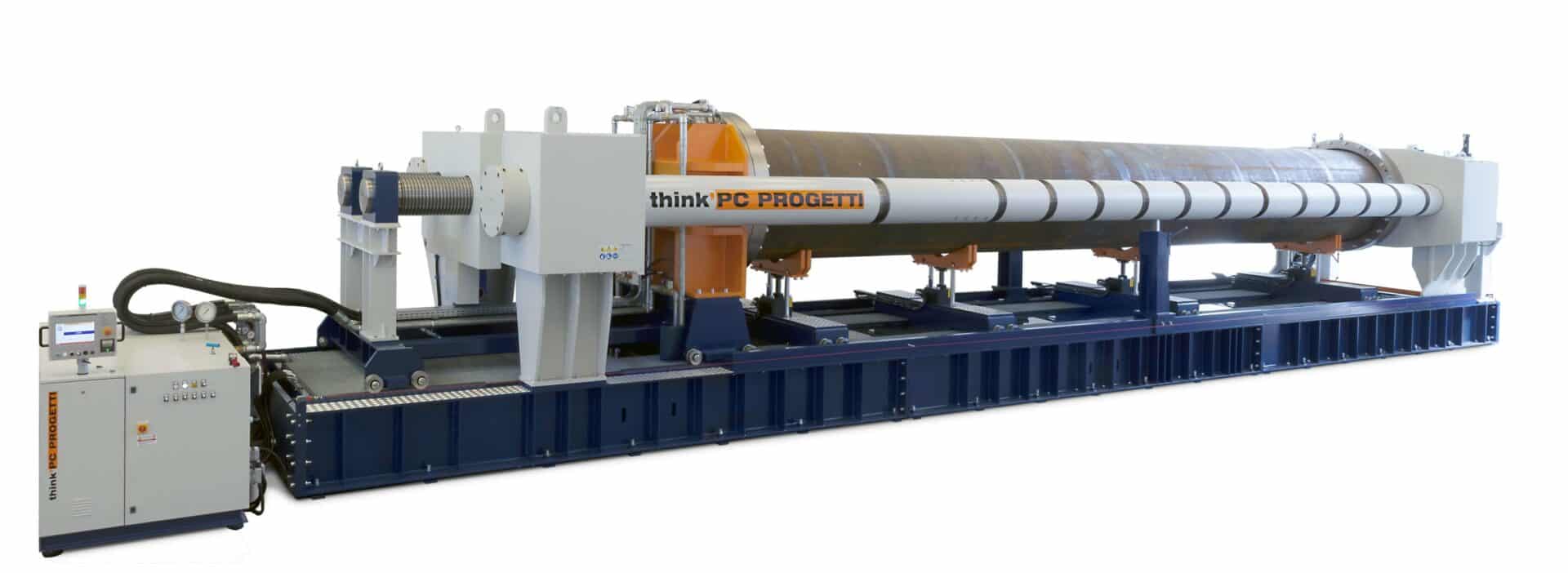

DOUBLE SECTORIZED COLUMNS EXTERNAL RADIAL AUTOADAPTIVE SEALS
Test rigs for pipes with clamping style Nr. 2 “Inner/outer seal” or Nr. 8 “Overpressure auto-adaptive seals” for elliptical shape error.
Reaction bridges are connected by sector columns, that allow to set up maximum pipe length.
The fine adjustment on pipes is performed by a screwed column.
The right side reaction bridge is able to run on the entire columns length to cover a wide range of pipes length measures, as described in technical table below.
Pipe loading is performed by a crane from the top, while Nr. 4 hydraulic “V” shape lifters will support it for entire test and they are able to center the alignment on seals heads.
The basement includes a water vessel with an evaporation limit device.
The test bench does not need any foundations preparation.
The rig is controlled by a SKA class pressurization skid up to 4000 L/min water filling ability.
To have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories.
*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)
- Reaction power3000 TON
- Clamping typeType 8 - External radial with Overpressure Auto-Adaptive seals
- Max pipe length12500 mm
- Max pipe diameter1420 mm
- Allowed elliptical error1,5%
- Flow axes height2500 mm
- Basement water vessel25000 Liters

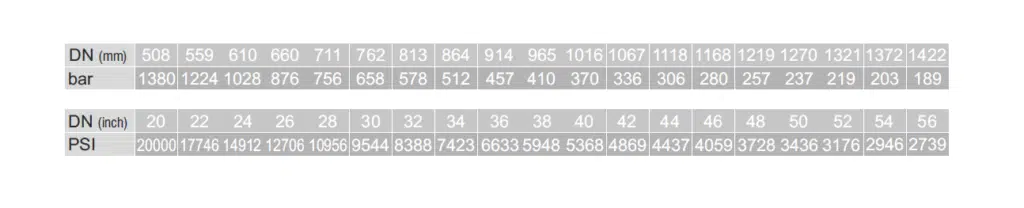

- Max Test pressure700 / 1380 bar
- Filling Flow4000 Liters/min
- Pneumatic supply7bar @ 4000 Liters/min
- Dimensions2100(L) x 3500(D) x 3700(H)
