Test rigs for pipes with clamping style Nr. 3 “Inner/outer seal” or “Proportional press”.
Reaction bridges are connected by sector columns that allow to set up maximum pipe length.
The left side reaction bridge is able to run on the entire columns length to cover a wide range of pipe length measures as described in the technical table below.

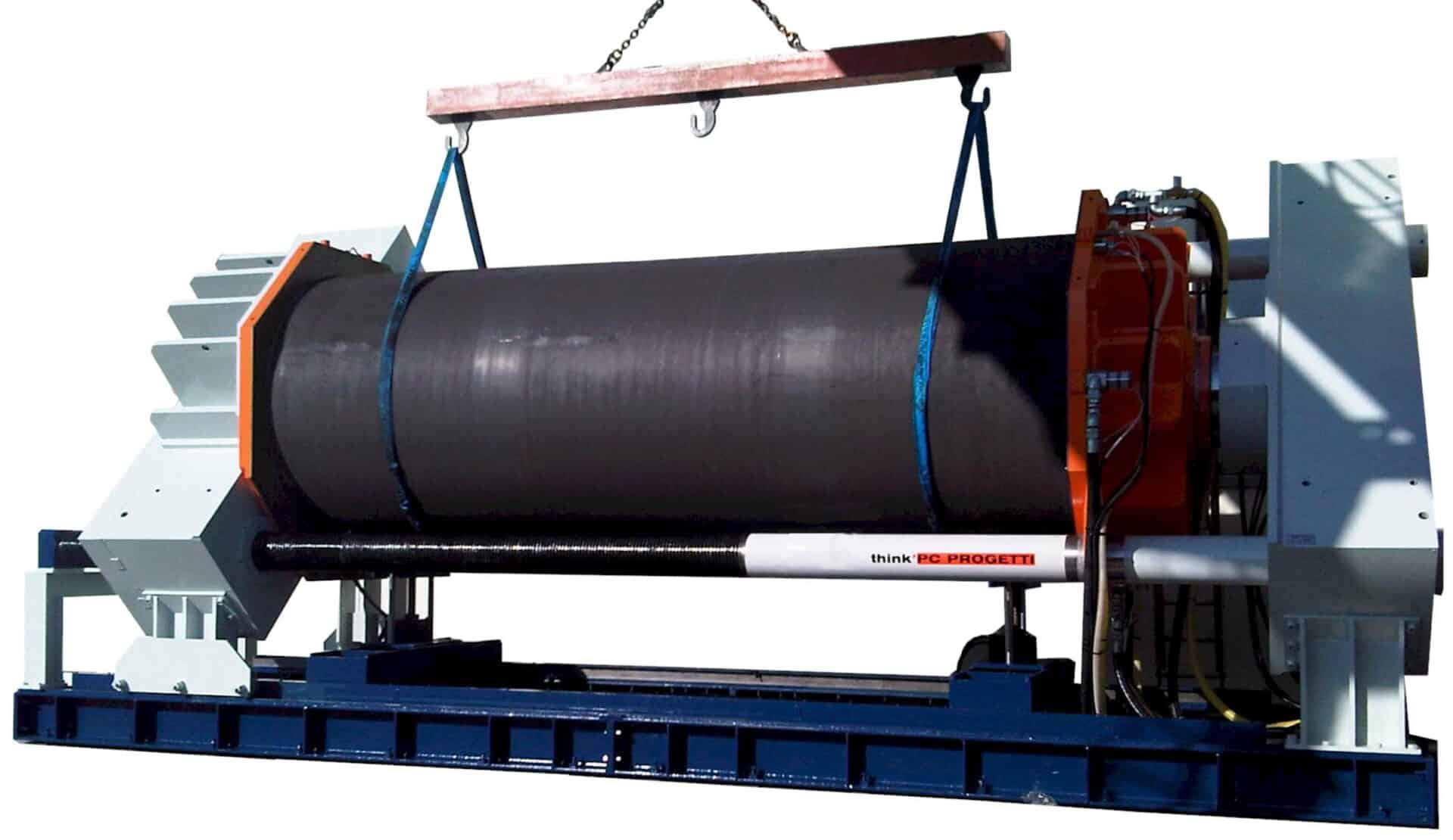

Pipe loading is performed by crane from the top, while Nr. 2 hydraulic “V” shape lifters will support it for entire test duration and are able to center the alignment on seals heads.
The basement includes a water vessel with an evaporation limit device.
The 45° columns orientation makes loading procedure easy requiring less lifting height to climb over the reaction column.
The test bench does not need any foundations preparation.
The rig is controlled by SKA class pressurization skid up to 2000 L/min water filling ability.
To have more information about it please consult dedicated technical data sheets.
The rig could be completed with several options and accessories.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

  • Reaction force2000TON
  • Clamping styleType 3 – Combined clamping
  • Max pipe length5400mm
  • Min pipe length750mm
  • Columns inner clearance2710mm
  • Max pipe diameter2600mm
  • Allowed elliptical error0,5%
  • Flow axes height2530mm
  • Basement water vessel3000 Liters
  • Electrical supply3PH + T380V@50Hz, 12KW
  • Dimensions10500(L) x 3500(P) x 4300(H)
