claws clamping low loading height

Pressure safety valve test rig.

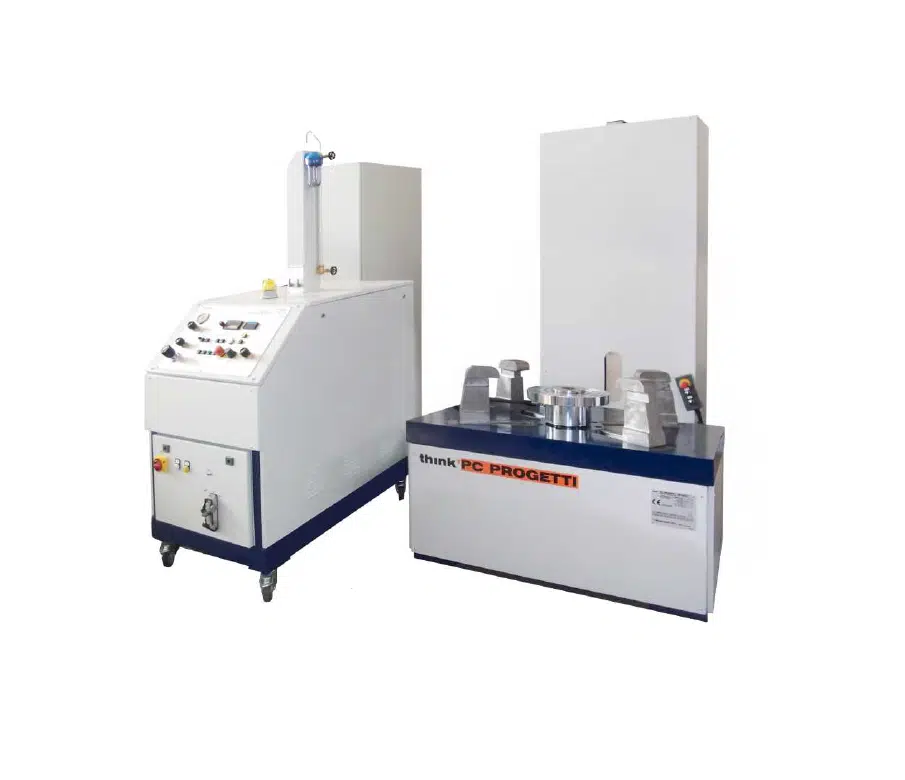

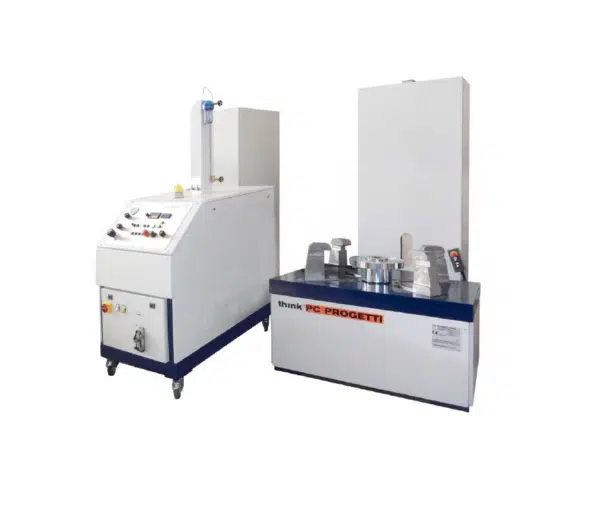

4 claws clamping. 60TON vertical test rig & pressurization skid.
Workshop unit build into 40 feets container. Mobile valve repairing workshop, equipped with a complete tools set to repair & test valve onsite.
The unit makes available all supply lines (electrical & pneumatic) for a complete mechanical workshop with testing units included.Generators are installed in separate container area, accessible from outside through roller shutter doors, and mounted on sliding brackets for easy access and maintenance.
It has 160×160 H-Beam structure, about 1 Ton capacity over head crane with sliding beam running on container full length.
A Swing out crane installed on entrance door ensure best access ability to the equipment. Here following the available equipment inside the workshops.
High Pressure air compressor up to 300bar with 150L reservoir tank.

*Standard version is described. Test benches can be customized in any technical aspect in accord to client peferences.(Patent Pending)

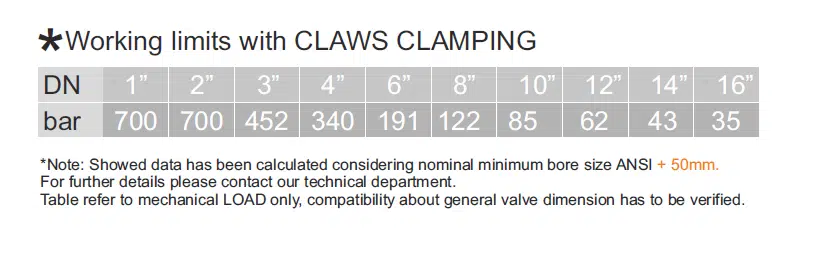

  • Reaction force60 TON (See working limits table)
  • Flange max diameter530 / 650 / 860mm
  • Flange min diameter90mm
  • Flange thickness max90mm
  • Tilting angleFIXED (not tiltable)
  • Basement water vessel200 Liters
  • Terminations allowedRF, RJ
  • Clamp typeHydraulic cylinder w/claws Clamping force
  • Range5..100%
  • Electric supply3PH + T400V@50Hz, 2KW
  • Dimensions (mech)1250 (L) x 700 (D) x 650 (H)
